Drawbar cargo trailer can transport 2x20FT container after back from Djibouti port to Ethiopia, the tire of drawbar cargo trailer use the TRIANGLE brand TR691E pattern, it's will easy to help drawbar cargo trailer climbing !
Drawbar Cargo Trailer Introduce
Drawbar cargo trailer mainly used for the transport cropper and container, it’s very popular in East Africa. The rear cargo trailer connect with front cargo trucks by Europe tech hooks, and each cargo box have 4 pcs container lock, to fixed the 20FT container. Loading platform adopt checkered plate (3-4mm thickness) design enhances the friction between the goods and the plane to prevent the goods from falling during transportation.
Drawbar Cargo Trailer Specification
1. Dimension: 7600x2600x3300mm
2. Axle: 3x13 tons, BPW brand
3. Tire: 12.00R20, 12 pcs, TRIANGLE brand
4. Main Beam: upper 14mm, lower 16mm, middle 10mm
5. Turntable: 1100mm
6. Hooks: Italy tech
7. Suspension: 8mm thickness, heavy duty loading
8. Leaf Spring: 90x16mmx10pcs
9. Wheel Rim: 16mm
10. Brake Valve: WABCO brand and ABS
The drawbar cargo trailer specification only for your reference, we will recommend other model drawbar cargo trailer basic your request.

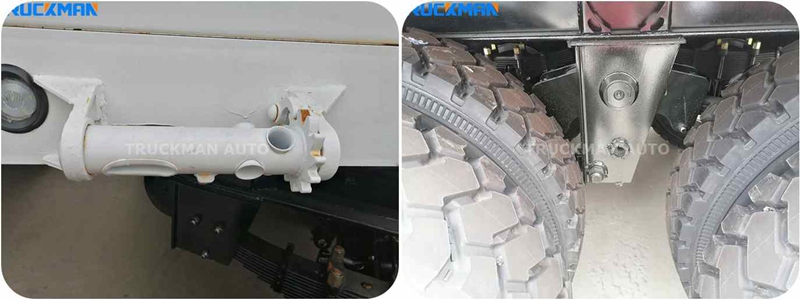

Drawbar Cargo Trailer Detail Picture
According to the usage habits of local customers, we individually designed many details for the drawbar cargo trailer. For example, the oversized rope tightener has a thickness of 6mm and a weight of 8kg. It is very strong. Considering that customers often need to disassemble fences to transport 20FT containers, we have designed the cargo box hinge as a very simple pull-out type for customers. Save time and increase productivity.
