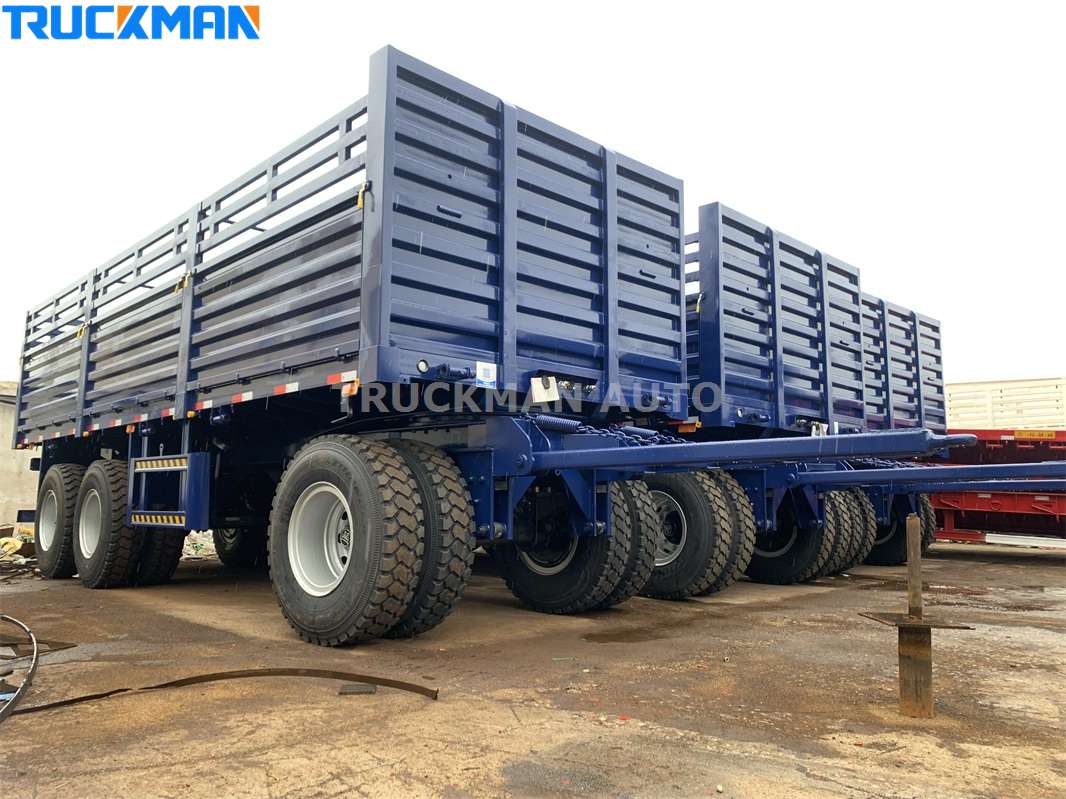

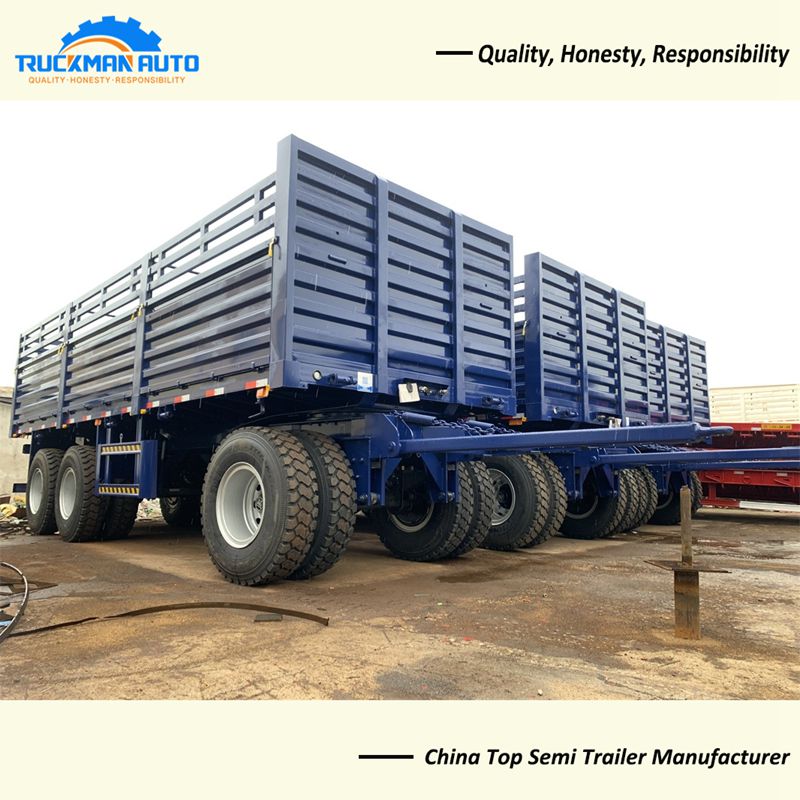

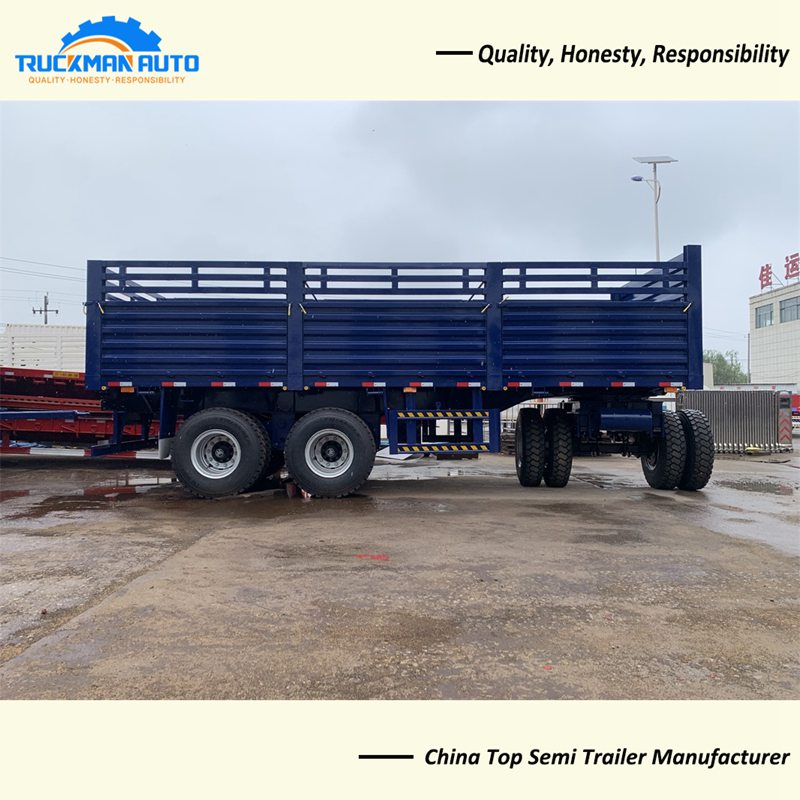

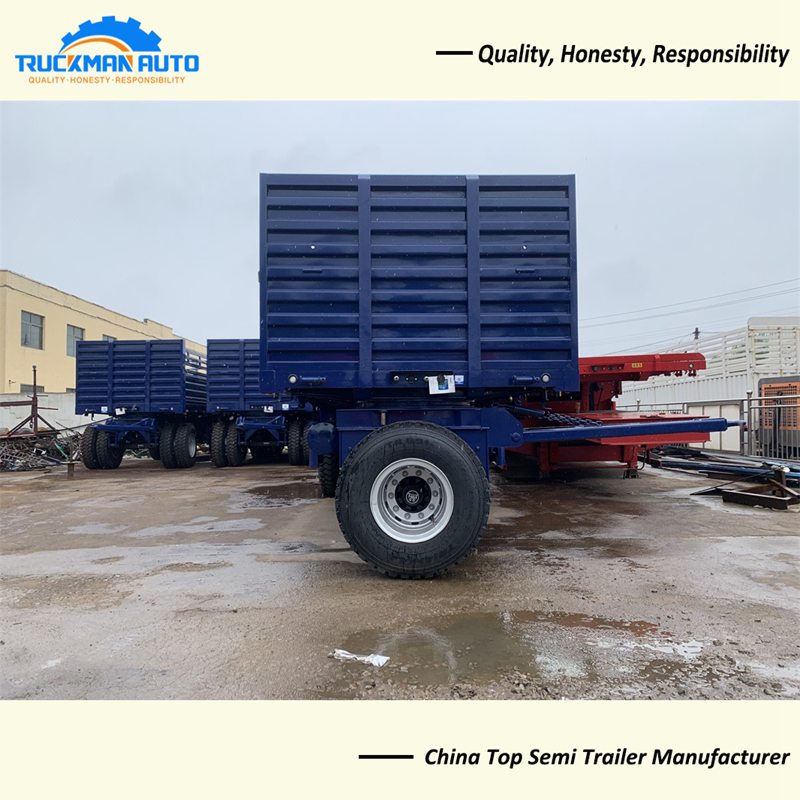

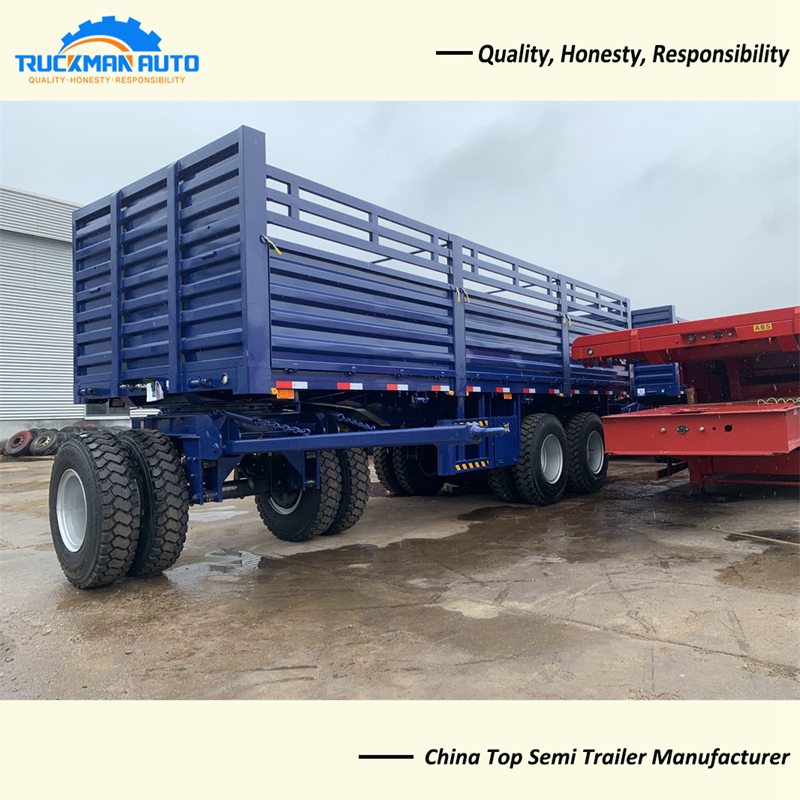

Draw bar side wall full trailer can loading around 40 tons cargo, the trailer can transport bulk cargo and 20FT container. The side wall full trailer can add 1000 liter for long distance transportation, the material of oil tanker have carbon steel and stainless steel optional.
Draw Bar Side Wall Full Trailer Advantage
1. 800-1500mm height side wall, thickness is 1.5-3mm.
2. Adopt the famous brand parts, like TRIANGLE tire, BPW axle etc.
3. Use advanced production tech, such as submerged arc welding tech.
4. 6 pcs big brake chamber, with ABS system.
Draw Bar Side Wall Full Trailer Specification
1. Dimension: 7600x2600x3300mm
2. Axle: 3x13 tons, BPW brand
3. Tire: 12.00R20, 12 pcs, TRIANGLE brand
4. Main Beam: upper 14mm, lower 16mm, middle 10mm
5. Turntable: 1100mm

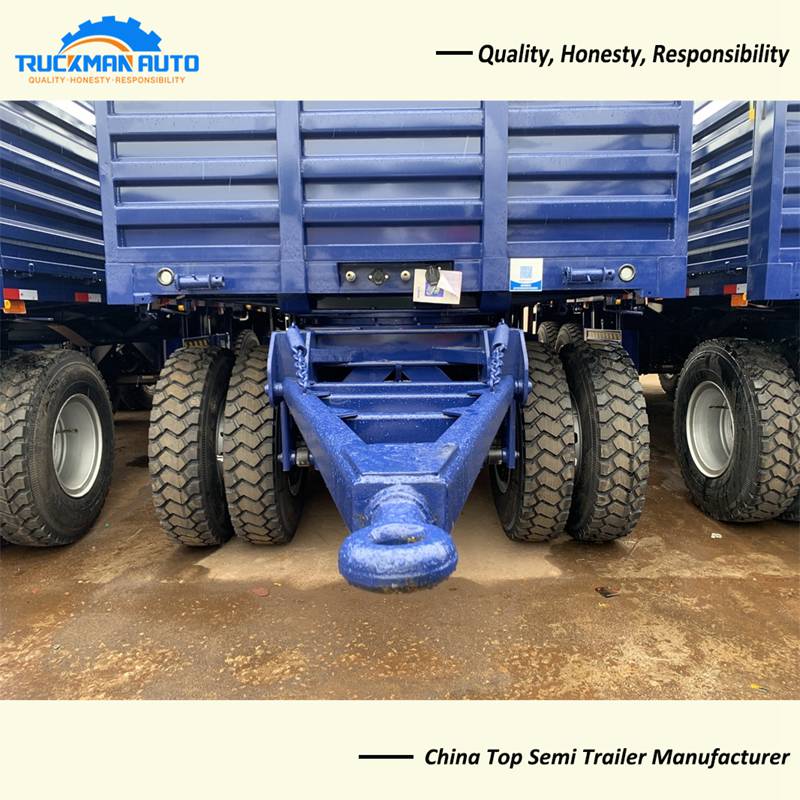

6. Hooks: Italy tech
7. Suspension: 8mm thickness, heavy duty loading
8. Leaf Spring: 90x16mmx10pcs
9. Wheel Rim: 16mm
10. Brake Valve: WABCO brand and ABS
The draw bar side wall full trailer specification only for your reference, we will recommend other model draw bar side wall full trailer basic your request.

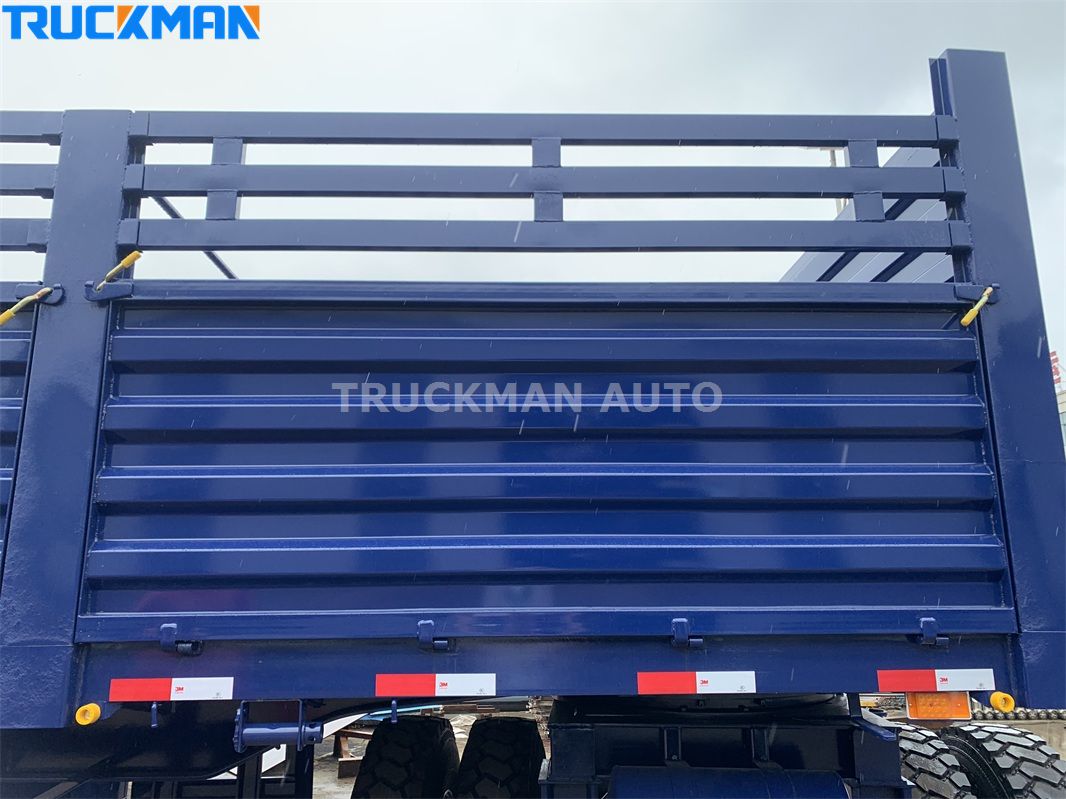

Draw Bar Side Wall Full Trailer Cargo Box Detail
The draw bar side wall full trailer cargo box dimension is 7300x2300x1500mm, design for transport bulk cargo and 20FT container. The thickness of cargo box is side 1.5mm, bottom 3mm, checkered plate. The checkered plate can enhanced friction to prevent cargo from falling. Material is Q355 high strength steel.
