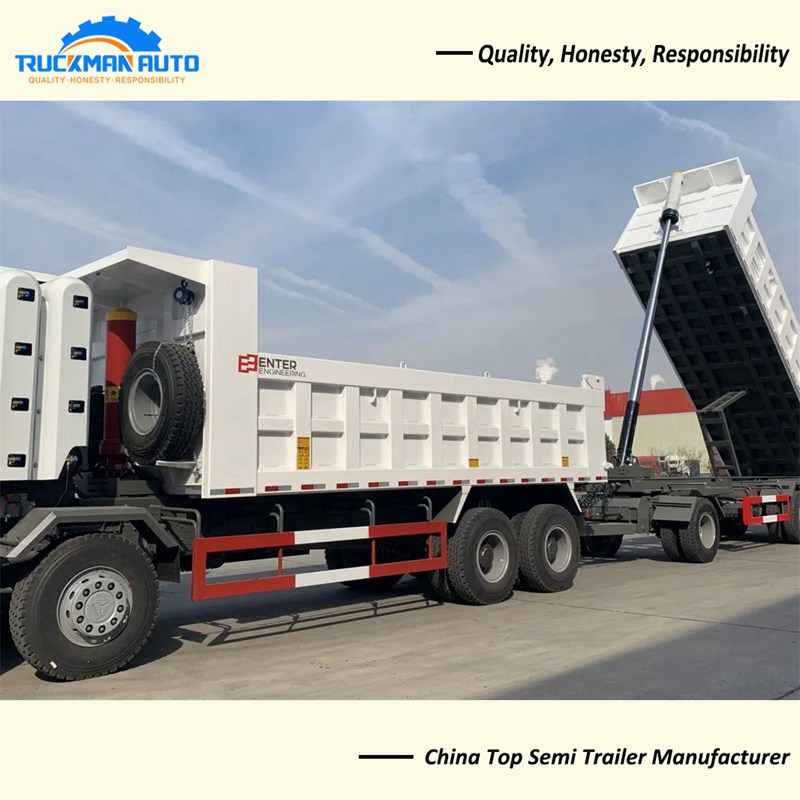

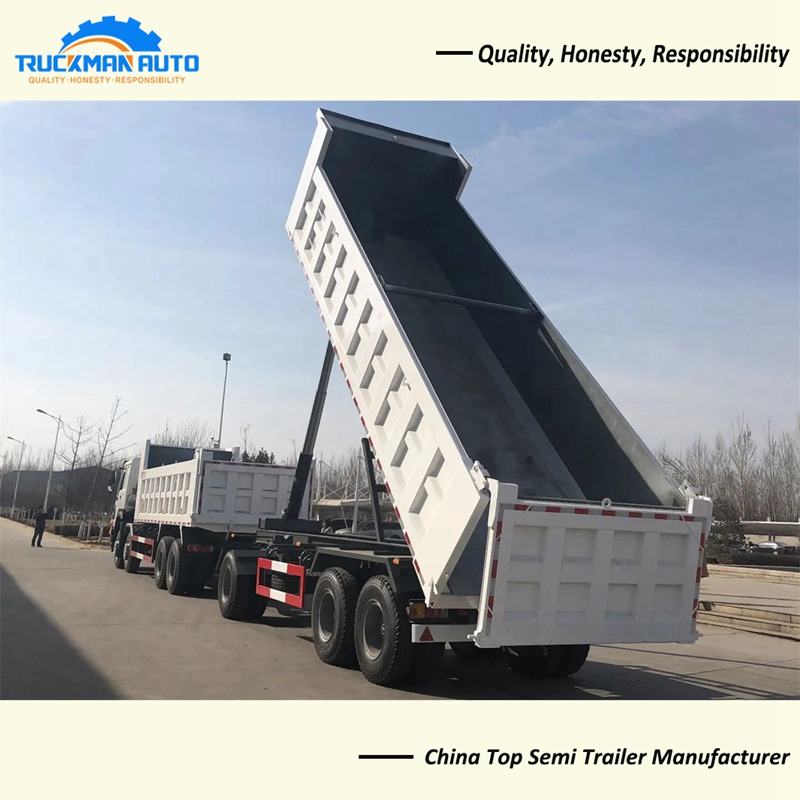

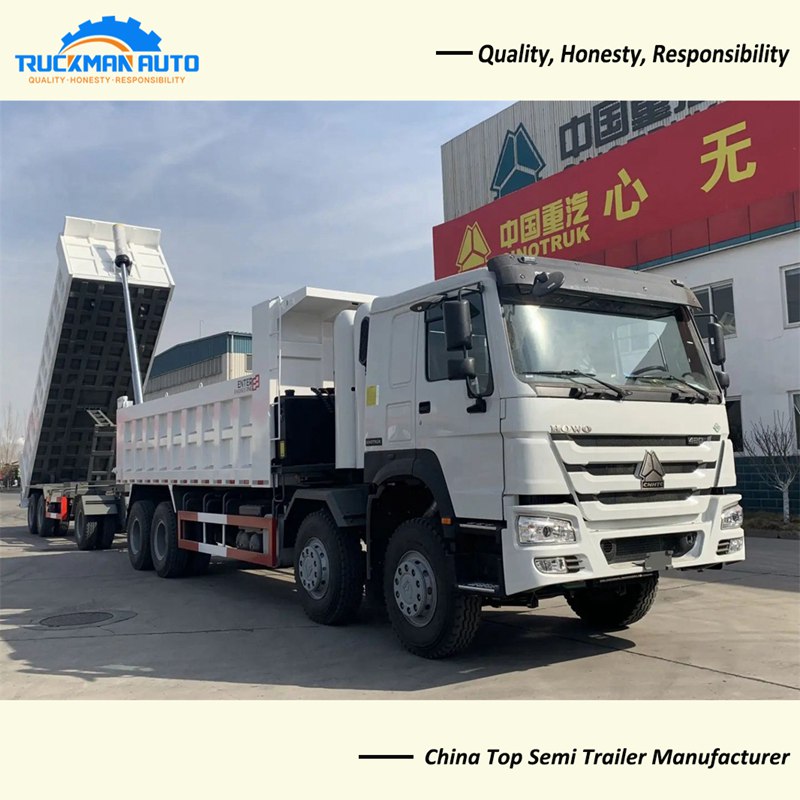

Drawbar tipper trailer is very popular in Mongolia, suitable for coal, iron etc haulage. The axle brand have FUWA, BPW, ZY etc optional, with 16 tons loading capacity per axle. Also bucket of draw bar full dump trailer size is 20m3, can meet the heavy duty loading request, adopt the automatic welding tech, which can ensure the bucket no deform.
Drawbar Tipper Trailer Features
1. The whole dump trailer use polyurethane paint, strong rust resistance.
2. The main components adopt the TOP class brand spare parts.
3. Main beam adopt the manganese plate material.
4. Heavy duty loading mechanical suspension.
Drawbar Tipper Trailer Tire Correction
Draw bar full dump trailer tire brand is LINGLONG, pattern model is LLA08. Suitable for bad road transportation request, and the tires are wear-resistant and puncture-resistant, effectively reducing the maintenance cost of customers. When the semi-trailer leaves the factory, the tires need to be corrected to prevent abnormal tire wear, and it needs to be corrected again after long-term use.
Drawbar Tipper Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
Drawbar tipper trailer |
|
Application |
Mining material transport |
|
Suspension |
Heavy duty mechanical model |
|
Axle |
3 axle, 3x16 tons, ZY, FUWA, BPW |
|
Tire |
12.00R20, 12 pcs, LINGLONG brand |
|
Leaf Spring |
90x16mmx10pcsx6sets, 60# steel |
|
Paint |
Polyurethane paint |
|
Bucket |
20m3, bottom 10mm, side 8mm |
|
Brake System |
WABCO brand |
|
Dimension |
8500x2500x3200mm |
The drawbar tipper trailer specification only for your reference, we can manufacture other model tipper trailer basic your request.
