Flat bed trailer also called field trailer, in particular used for haulage transport all sort of field. with 12 twist lock, 30 rope tensioner, 30 pcs robust hook and so forth, these can assist constant the cargoes and field. additionally the beam help of 4 axle flatbed trailer fabric is q355 high energy metal, and total 50 beam, offer robust help to loading platform.
4 Axle Container Flat Bed Trailer Features
1. The material of flatbed trailer use Q355 high strength steel, more stronger than Q235 carbon steel.
2. Adopt the famous brand LINGLONG tire, for bad road driving also no problem.
3. Flatbed trailer axle can optional FUWA, ZY, BPW 16 tons.
4. Heavy duty loading main beam design.
4 Axle Container Flat Bed Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
4 axle flatbed trailer |
|
Application |
Container and cargoes transport |
|
Suspension |
Heavy duty mechanical model |
|
Axle |
4 axle, 4x16 tons, ZY, FUWA, BPW |
|
Tire |
315/80R22.5, 16 pcs, LINGLONG brand |
|
Leaf Spring |
90x16mmx10pcsx8sets, 60# steel |
|
Paint |
Polyurethane paint |
|
Container Lock |
12 pcs |
|
Brake System |
WABCO brand |
|
Dimension |
12300x2500x1600mm |
The 4 axle container flat bed trailer specification only for your reference, we can manufacture other model container flat bed trailer basic your request.
4 Axle Container Flat Bed Trailer Loading Platform Information

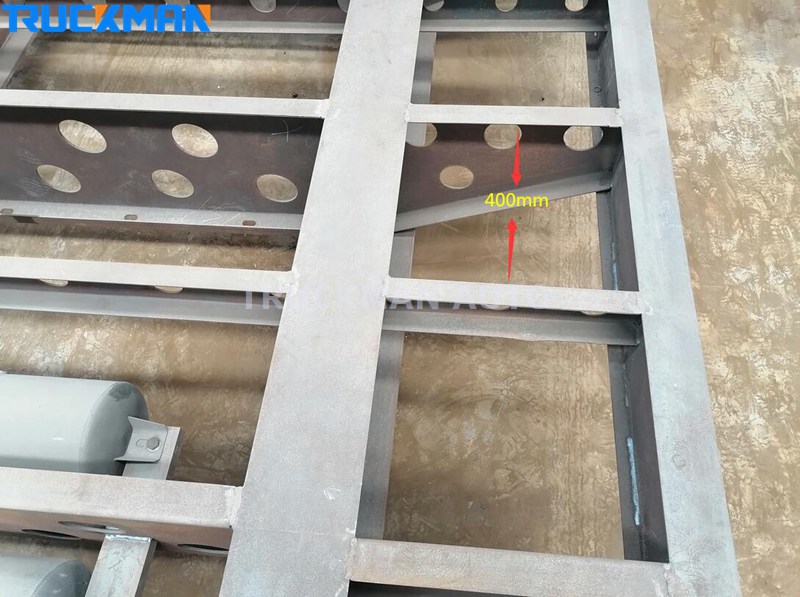

The flatbed trailer loading platform is very important component. After long time, the loading platform will collapse and the welding points of the bottom plate will be broken. In order to avoid this problem, the TRUCKMAN 4 axle flatbed trailer adjusts the spacing between the support beams of the bottom plate to 400mm, so that there will be more support beams to support the loading platform, thus eliminating this problem.
