2 line 4 axle removable gooseneck low mattress trailer is very famous in indonesia, it’s especially used for transport all form of model heavy duty equipment, including bulldozer, excavator, street curler and so on. the loading platform undertake the concave beam, it’s can reduce the delivery top, smooth to thru bridges, tunnels, etc top limit vicinity. and the center of gravity is also lower, and the using protection component is likewise better.
2 Line 4 Axle Detachable Gooseneck Low Bed Trailer Features
1. Gooseneck can removable, loading machinery more easy.
2. With strictly production process and fast production time.
3. Main beam low center of gravity design, safer transportation.
4. Adopt high strength T700 steel, the yield strength can reach to 700MPa.
2 Line 4 Axle Detachable Gooseneck Low Bed Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
2 Line 4 Axle Detachable Gooseneck Low Bed Trailer |
|
Application |
Heavy duty construction machinery transport |
|
Suspension |
Heavy duty mechanical model |
|
Axle |
2 line 4 axle |
|
Tire |
8.25R16, 16 pcs |
|
Leaf Spring |
90x16mmx10pcsx8sets, 60# steel |
|
Paint |
Polyurethane paint |
|
Tractor Pin |
90#, JOST brand |
|
Brake System |
WABCO brand |
|
Dimension |
10500x3000x1700mm |
The 2 line 4 axle detachable gooseneck low bed trailer specification only for your reference, we can manufacture other model detachable gooseneck low bed trailer basic your request.

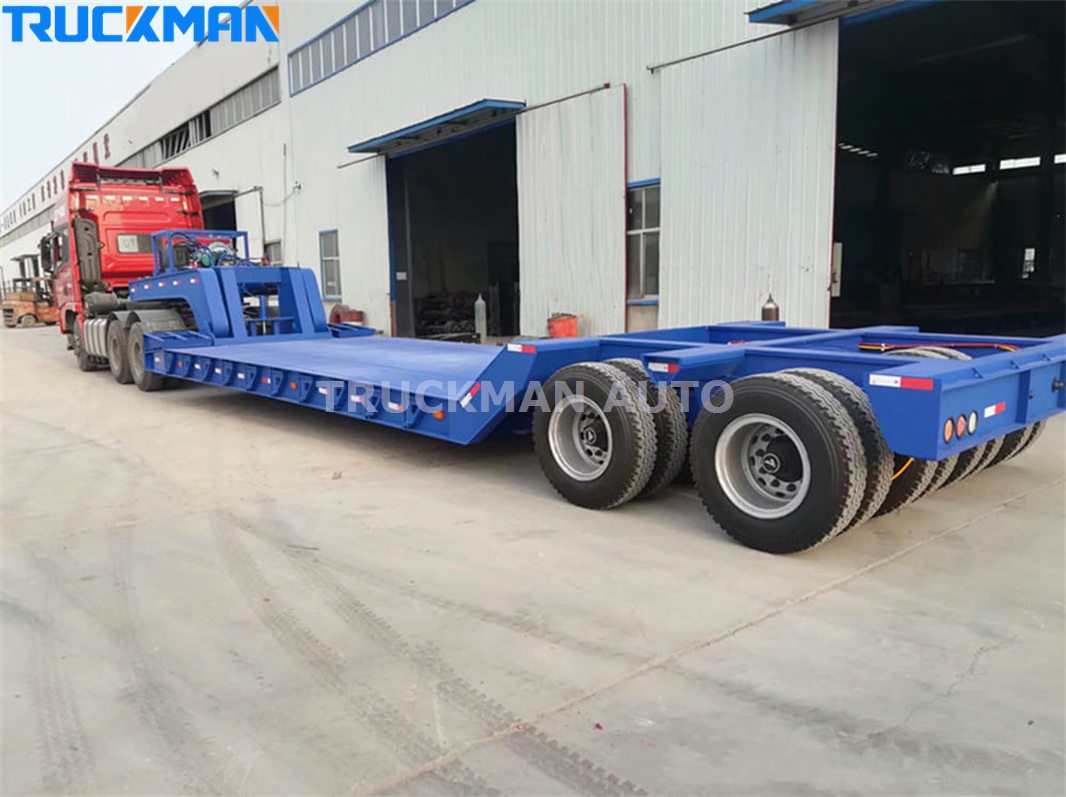

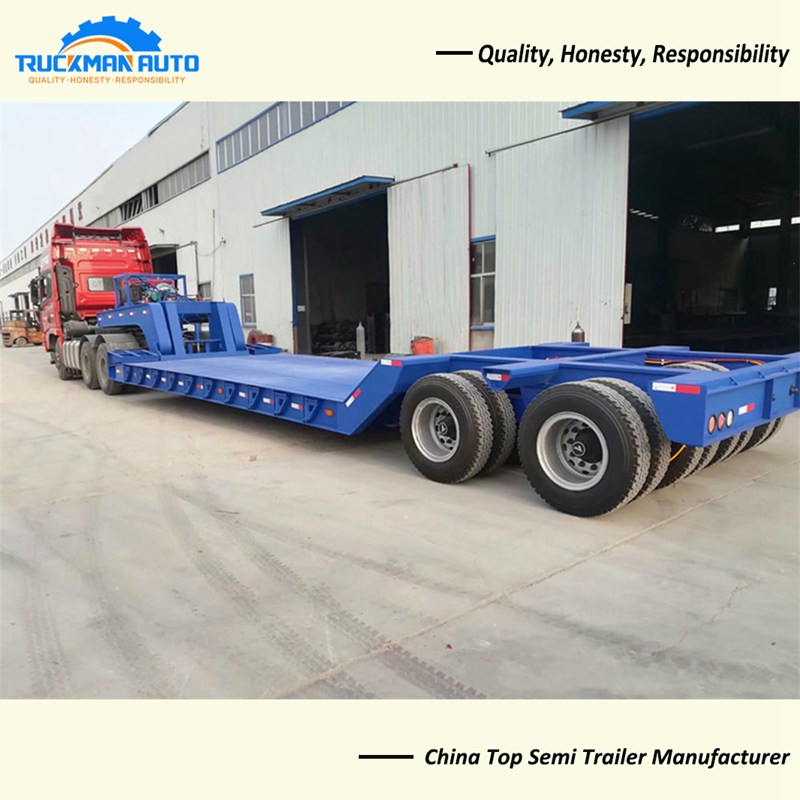

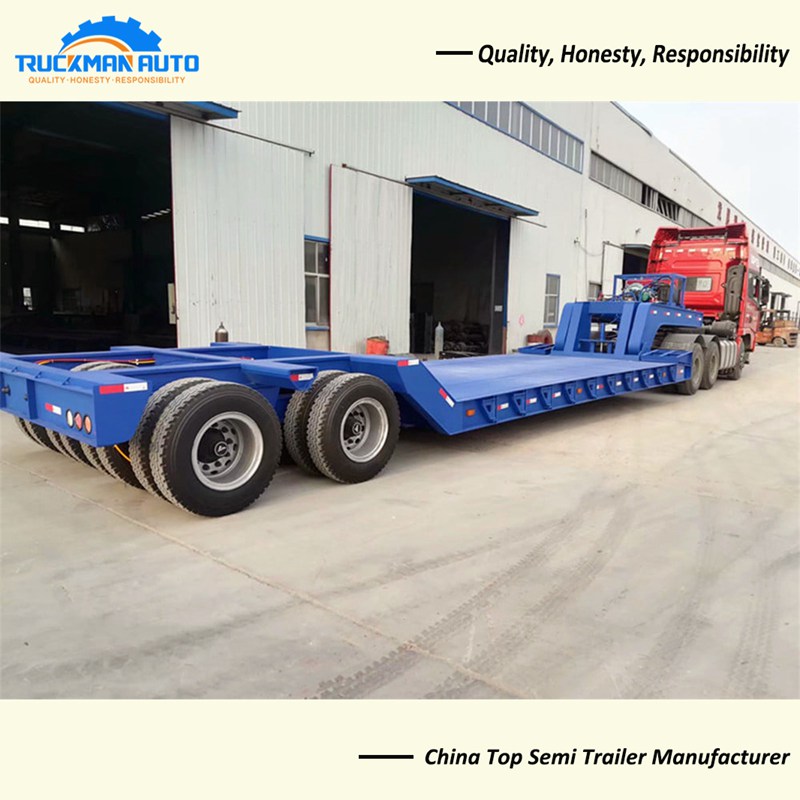

2 Line 4 Axle Low Bed Trailer Detachable Gooseneck

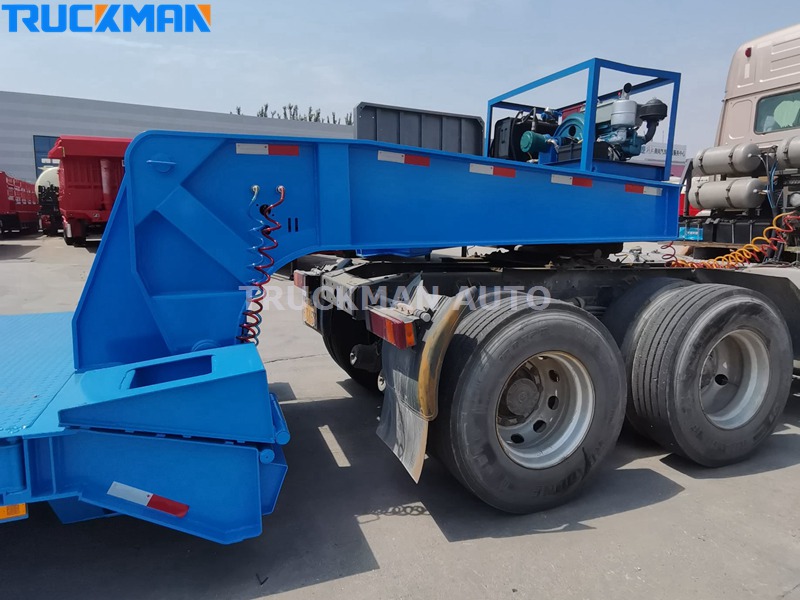

Detachable gooseneck low bed trailer, the gooseneck can be completely disengaged from the semi-trailer, so that the front end of the semi-trailer is lowered to contact the ground, but remains connected to the rear end of the tractor. After loading or unloading, the tractor pulls the gooseneck back and aligns with the front end of the semi-trailer, and the semi-trailer is reconnected with the gooseneck and returns to the transport state. This effectively ensures work safety.
