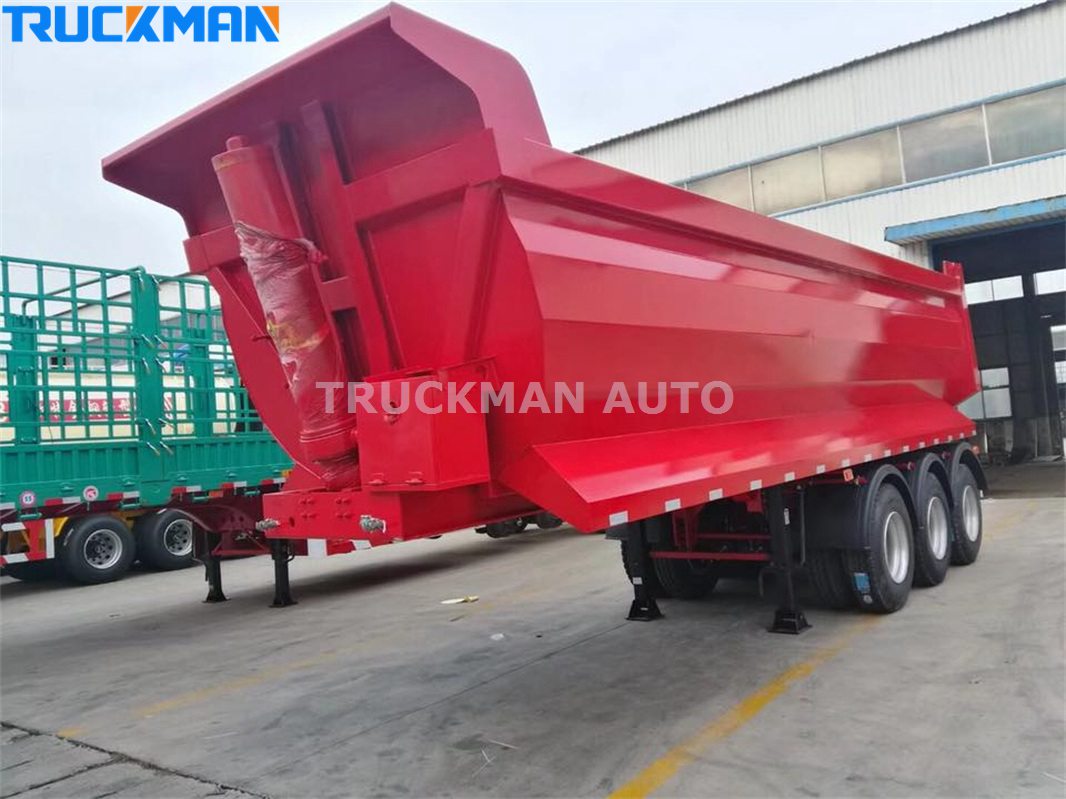

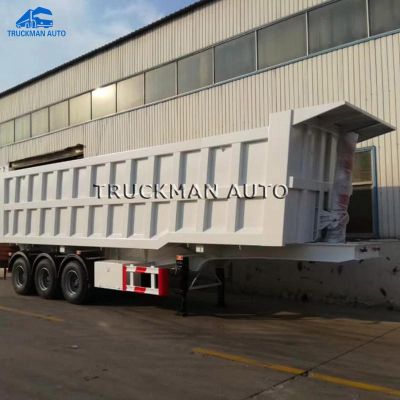

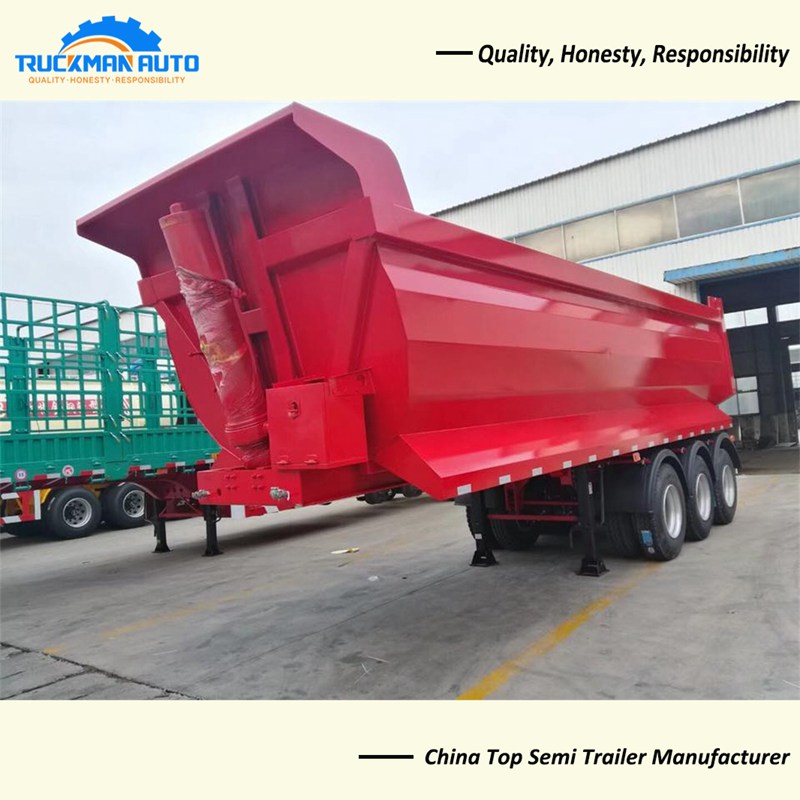

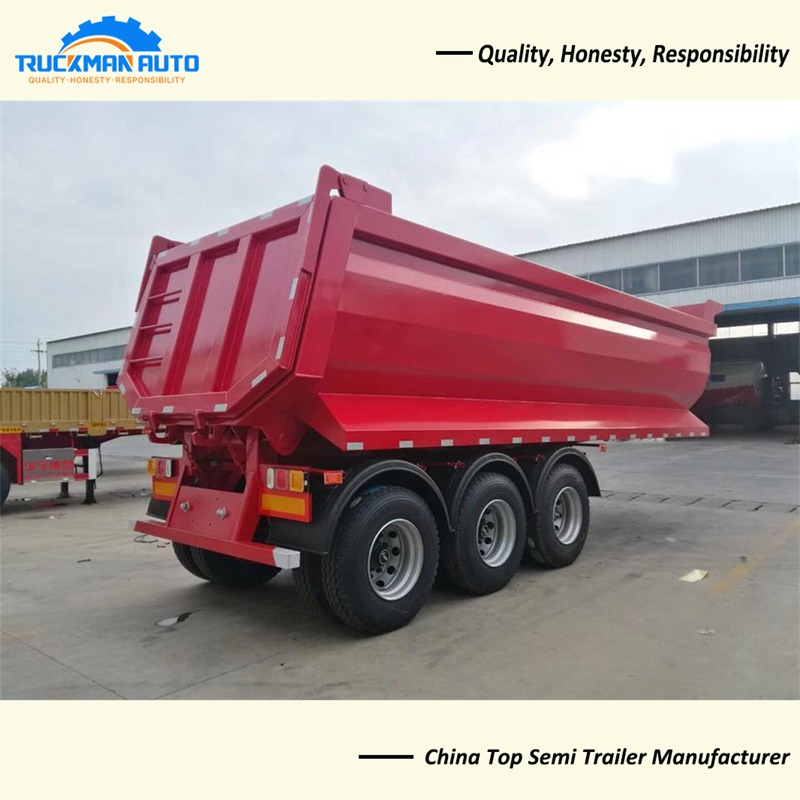

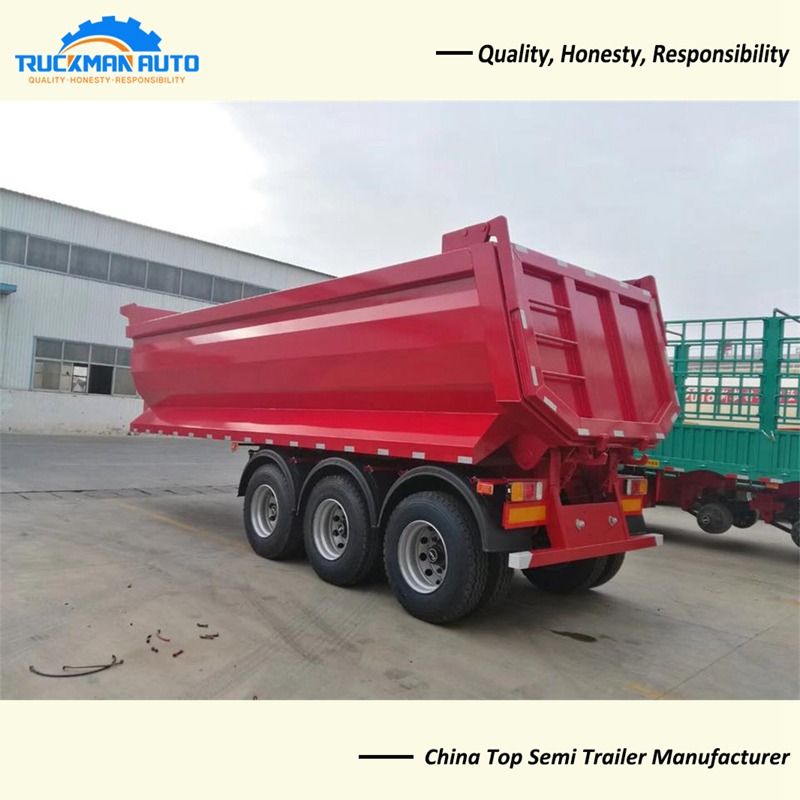

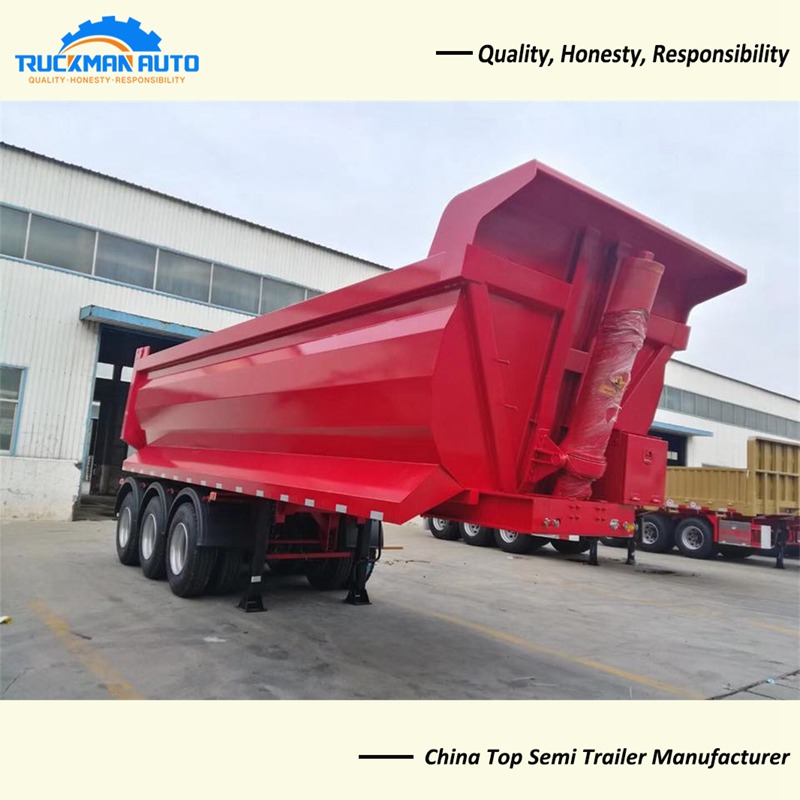

50 ton 30m3 tipper trailer mainly used for transport sand, gravel, stone etc transportation, the loading tons around 50 tons, with HYVA brand front hydraulic lifting system. The bucket of dump trailer have U shape and rectangular model, the material adopt the Q355 manganese plate or NM450 wear-resistant steel.
50 Ton 30m3 Tipper Trailer Features
1. JOST brand support leg, can supply 80 ton support ability.
2. U shape cargo box can easy offloading cargoes, no residuals.
3. TRIANGLE brand tubeless and radial model tire, like 12.00R20, 315/80R22.5.
4. 16 ton FUWA and ZY brand axle is optional, brake safety is more safety than 13 tons axle also.
50 Ton 30m3 Tipper Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
50 Ton 30m3 Tipper Trailer |
|
Application |
Sand, stone transport |
|
Suspension |
Heavy duty mechanical and air model |
|
Axle |
3 axle, 3x16 ton heavy duty axle |
|
Tire |
315/80R22.5, 12R22.5, 12.00R20 |
|
Leaf Spring |
90x16mmx10pcsx6sets, 60# steel |
|
Bucket |
30m3 |
|
Tractor Pin |
90#, JOST brand |
|
Brake System |
WABCO brand |
|
Dimension |
9500x2560x3400mm |
The 50 ton 30m3 tipper trailer specification only for your reference, we can manufacture other model 30m3 tipper trailer basic your request.

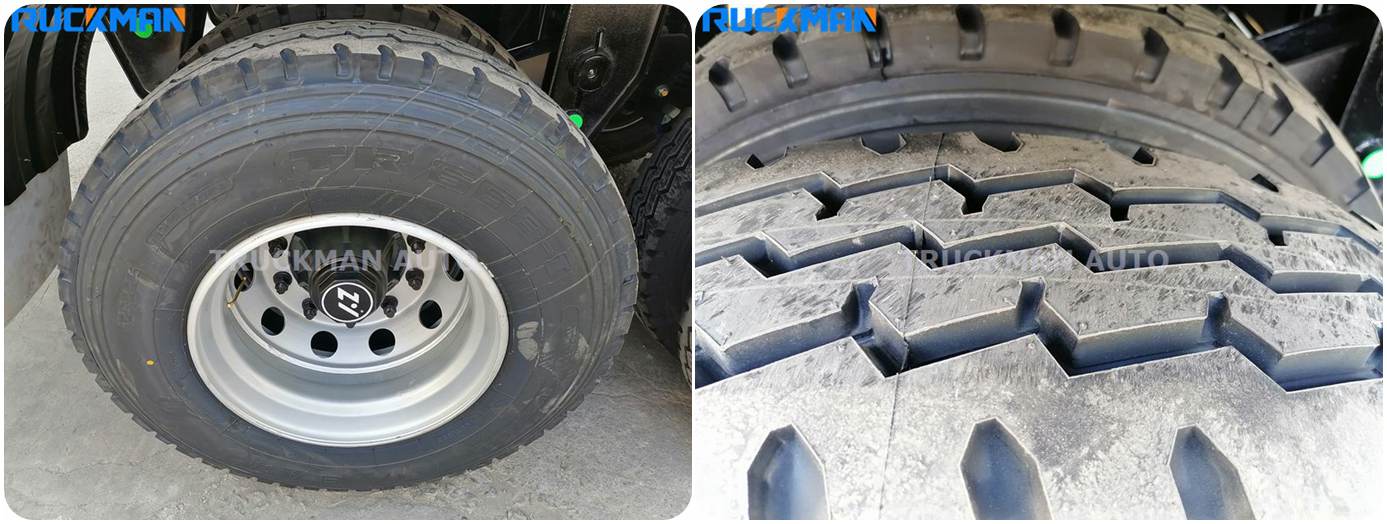

50 Ton 30m3 Tipper Trailer Tire
The 50 ton 30m3 tipper trailer tire brand including the TRIANGLE, LINGLONG and CHENGSHAN brand, model have radial and tubeless model. Off road work suggest choose the radial 12.00R20 with big pattern tire; Driving at good road condition suggest choose the tubeless model tire, like 315/80R22.5 or 13R22.5 etc, and tubeless model tire also suitable for hot temperature work condition, not easy explosion.
