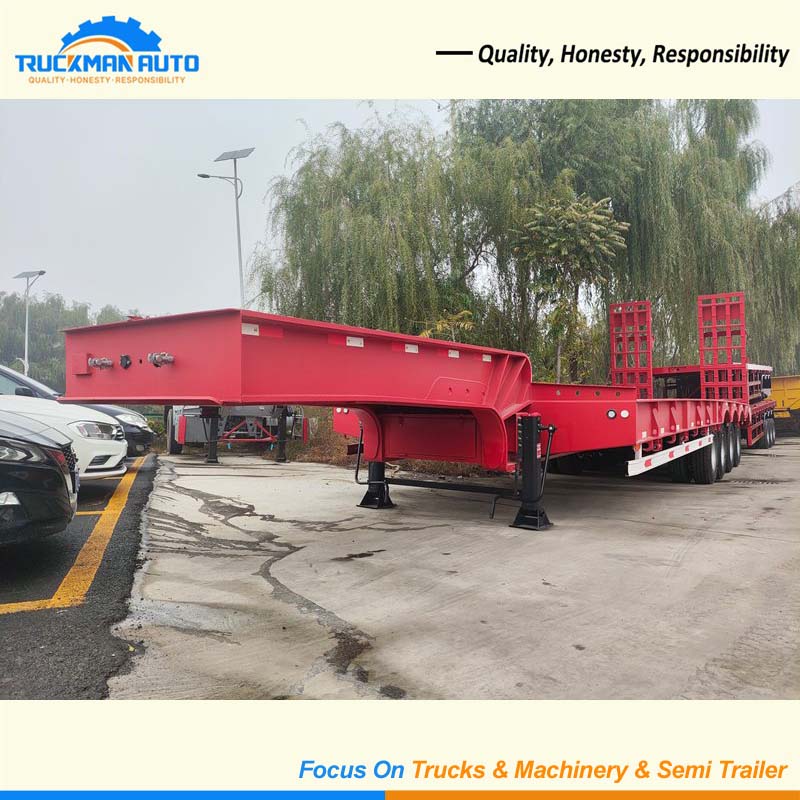

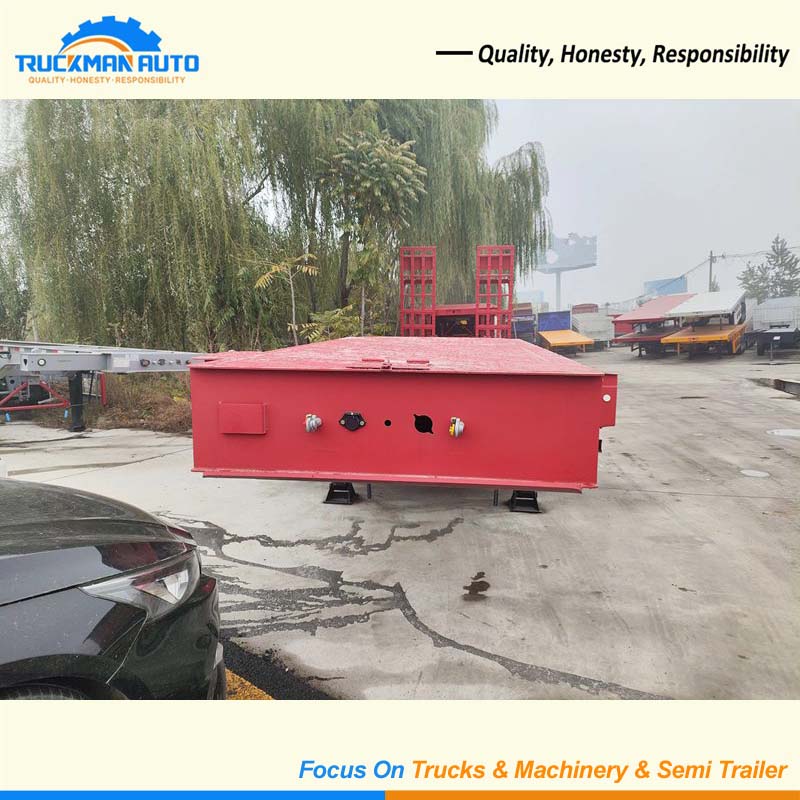

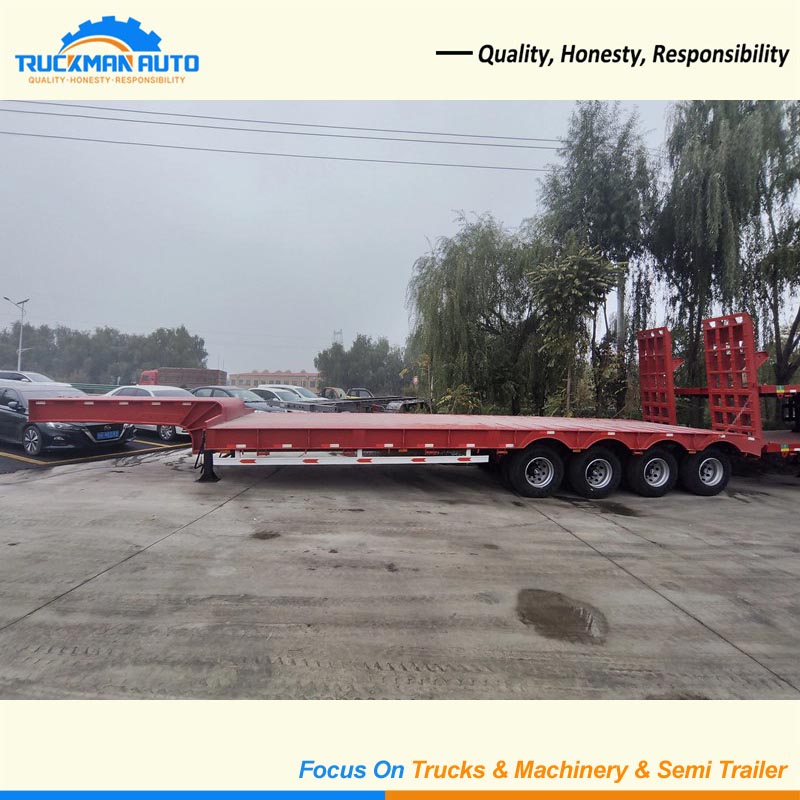

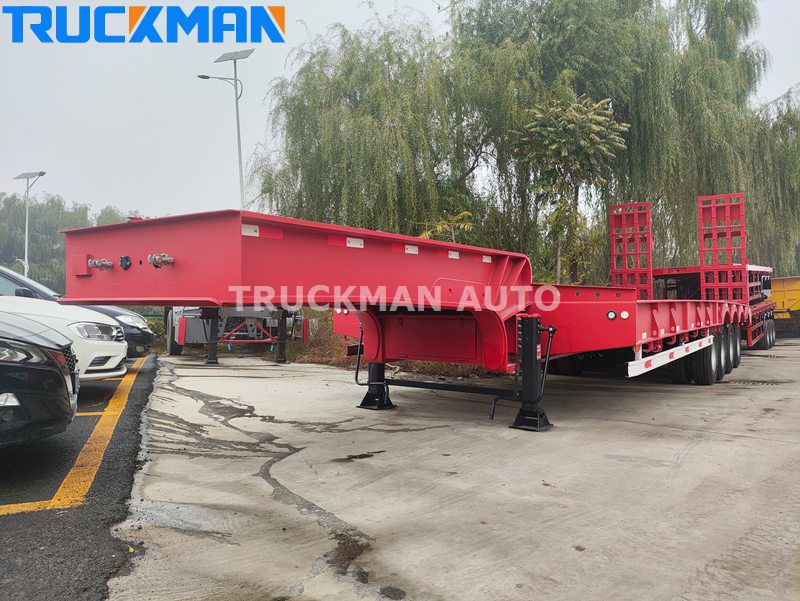

About 4 Axles 90 Tons Lowbed Semi Trailer

The 4 axles 90 tons lowbed semi trailer is a heavy duty trailer that specially designed for heavy duty machines‌ transportation, which adopts a long loading platform and bigger loading capacity. The 4 axles design allows it carry more than 90 tons cargo, in this way the weight of the goods can be evenly distributed, preventing tipping over due to an unstable center of gravity.

4 Axles 90 Tons Lowbed Semi Trailer Specification

Product Name: 4 Axles 90 Tons Lowbed Semi Trailer

Application: Heavy Duty Machines Transportation

Axles: ZY brand, 4*16000kg

Tire: 315/80R22.2, 16 pcs

Loading Capacity: 90 tons

Tractor Pin: JOST, 90#

Supporting legs: JOST A300C, 28T

4 Axles 90 Tons Lowbed Semi Trailer specification only for your reference, we can manufacture other model basic your request.

4 Axles 90 Tons Lowbed Semi Trailer Ladder Introduction

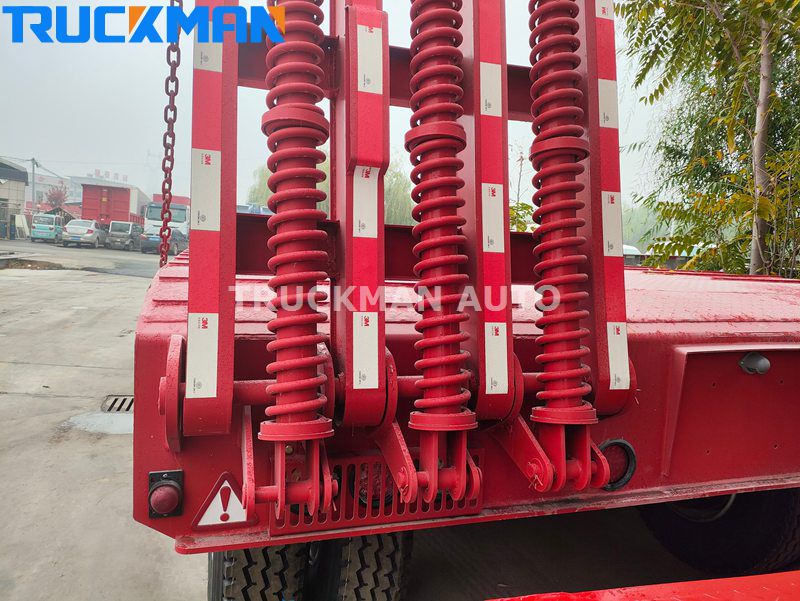

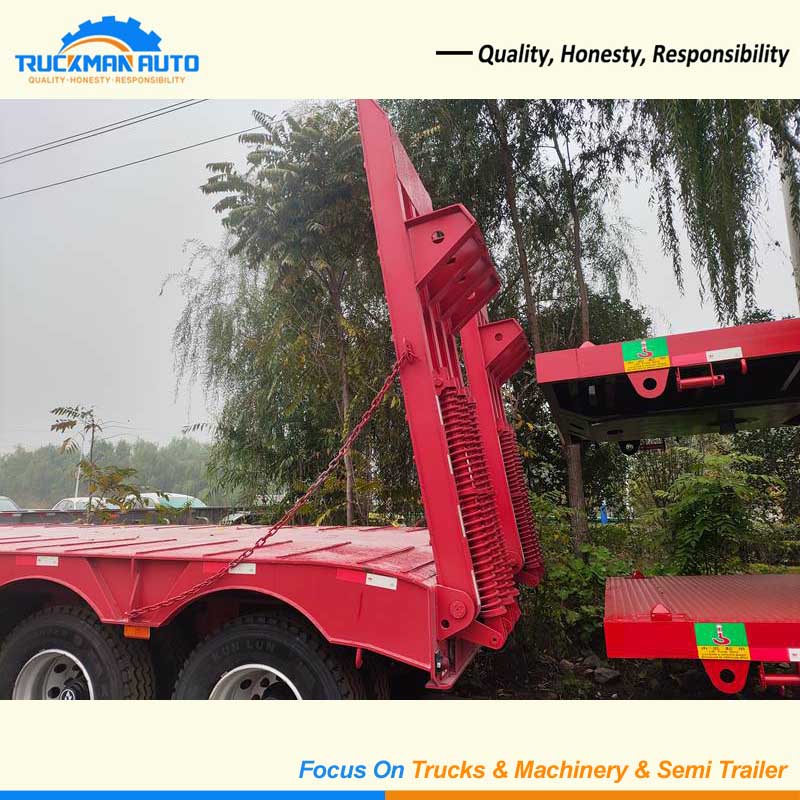

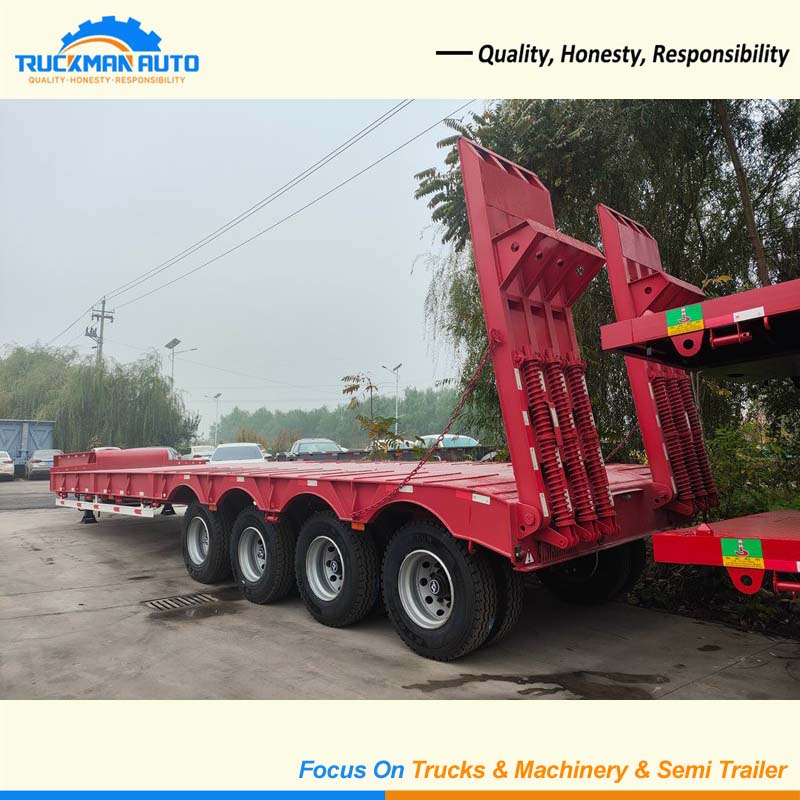

The 4 axles 90-ton lowbed semi-trailer uses a widened mechanical ladder. The widened design can carry large construction machinery, such as excavators and road rollers, avoiding the need for crane assistance. Users can directly get on and off the semi trailer via the ladder, improving loading and unloading efficiency and creating more economic benefits for users.

4 Axles 90 Tons Lowbed Trailer Main Beam Advantages

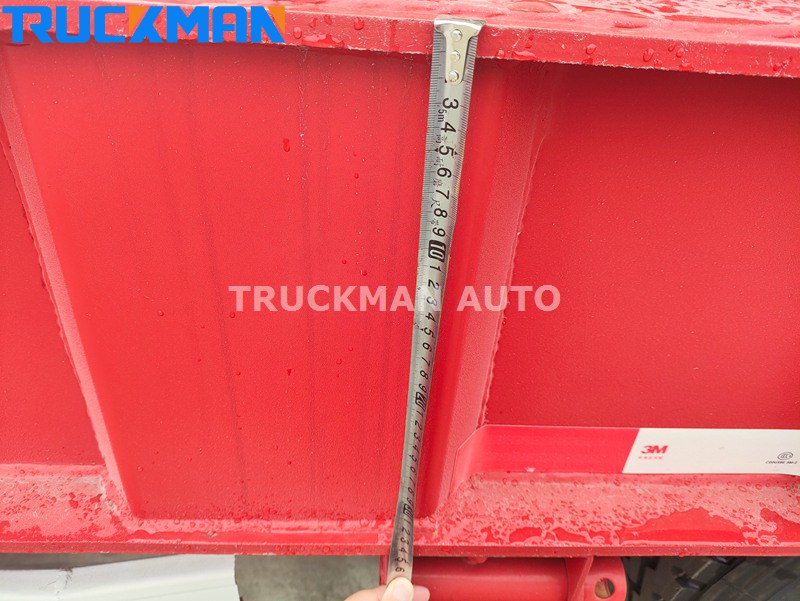

The 4-axle 90-ton lowbed semi-trailer has a load capacity of 90 tons. To meet this load requirement, we used larger beams with a web height of 340mm. This thickened and widened beam design greatly enhances the overall load-bearing capacity. Moreover, the beams are made of high-strength steel and processed with precision techniques, ensuring not only structural robustness but also extended service life.
