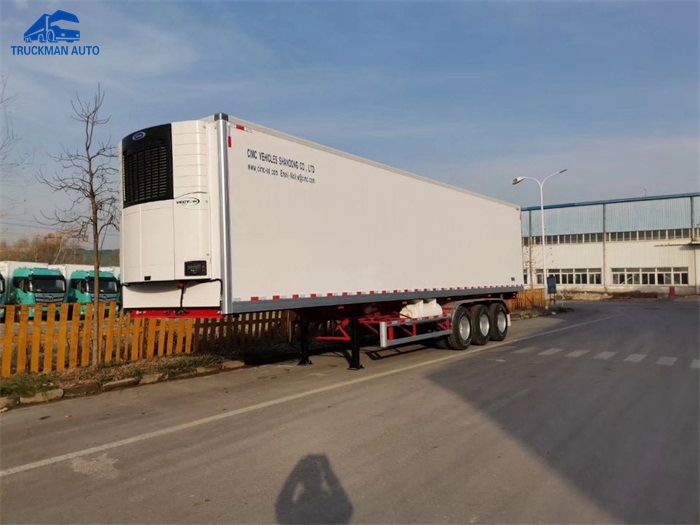

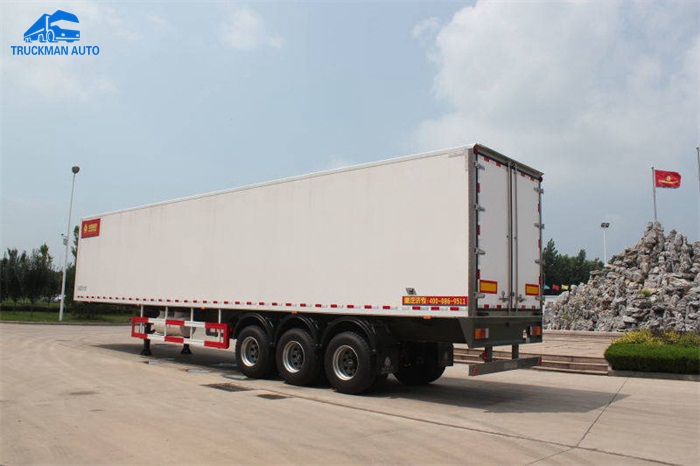

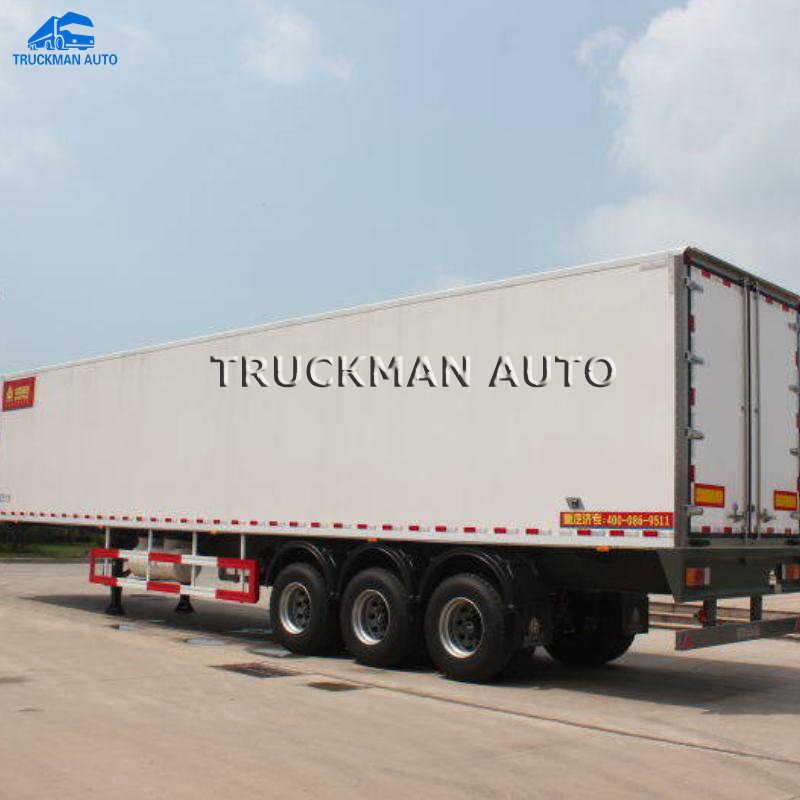

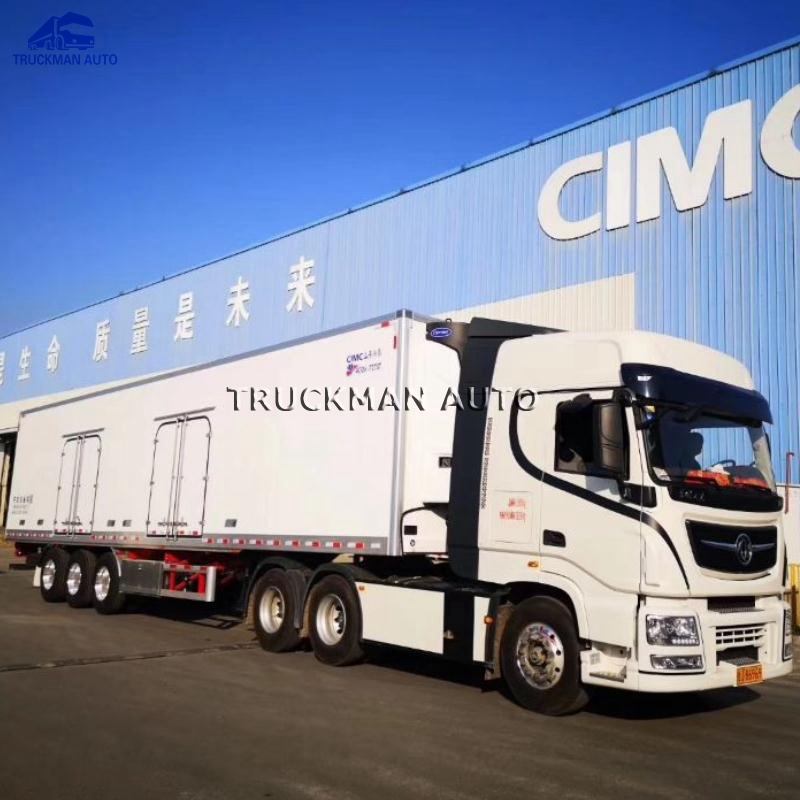

The refrigerator semi trailer specially used for transportation of fresh food, such as vegetables, meat, seafood, ice cream, etc. Refrigeration system adopts imported brand and efficient refrigeration.
-1. Main Specification For The Refrigerator Semi Trailer.
Dimensions (Lx W x H): 12500*2600*2710mm (can be customized)
Payload: 40tons.
The Volume Of Body: 74m3.
Axle: 3*13ton FUWA brand.
Suspension: Mechanical suspension with 10/10/10
Main Beam: Height:500mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm. Material: Q345B Steel
Through beam and Side beam: 10# channel steel, 14 U shaped steel or channel steel
Tire: Triangle brand, 12R22.5 (12pcs)
Traction Pin: 2"(50mm)or 3.5"(90mm)traction pin
Landing Leg: 28T load landing leg
Brake system: Dual Line braking system/Optional ABS
Brake chamber: Six double chamber
Electrical System: 24v, 7core socket, LED lights (suitable for all market)
Total Thermal Transmittance: ≤50W/K

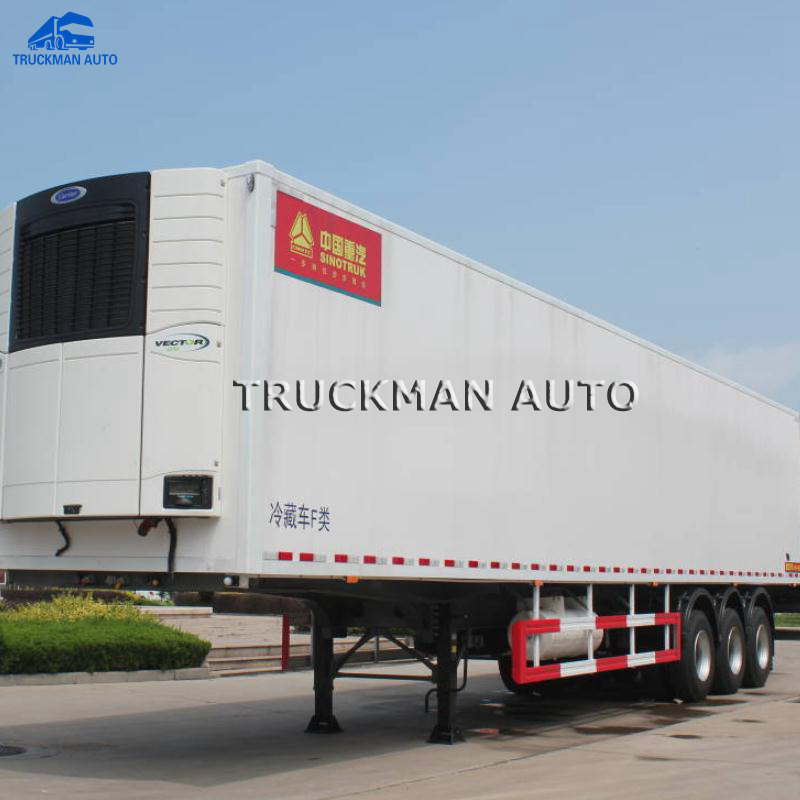

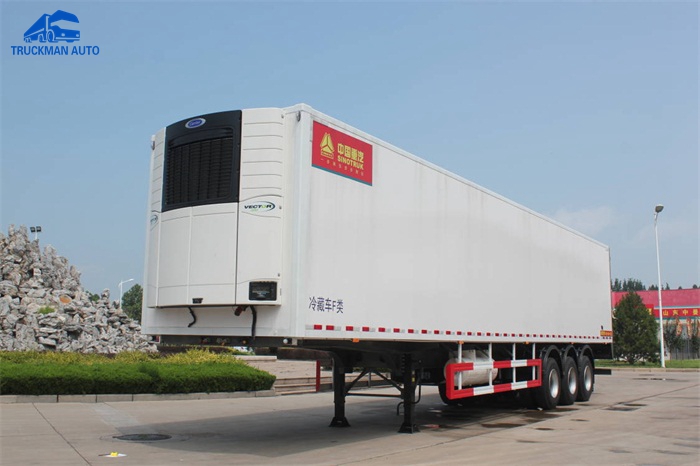

Refrigerator: THERMO KING SLXI400-50
Body Material: Freon-fr eepolyuret hane and GRP material.
-2. Refrigerator Semi Trailer Advantage.

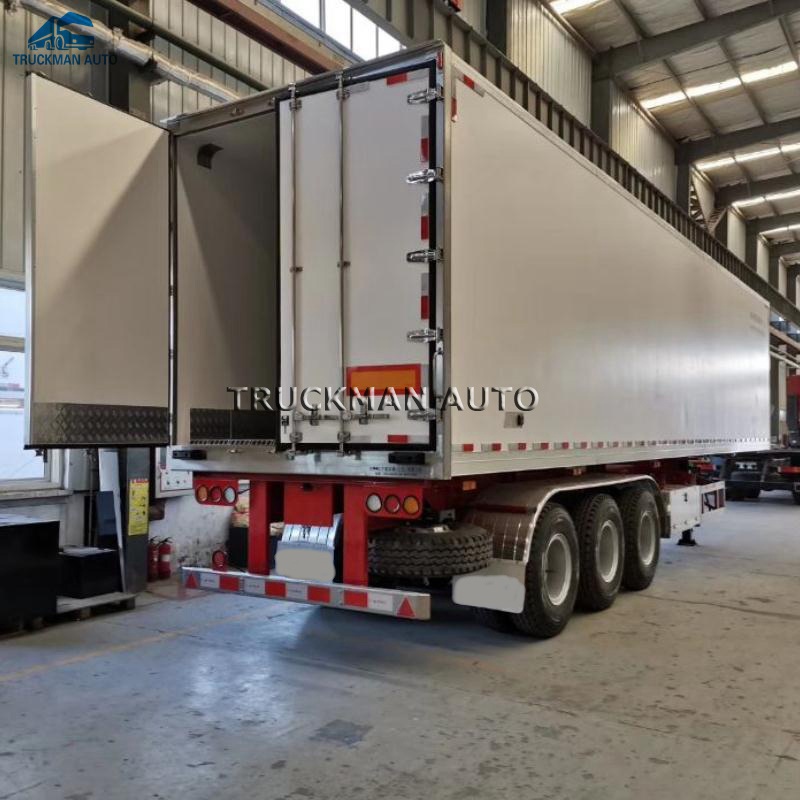

-. The standard refrigerated box is 105mm (roof & floor panel) and 82mm（Side panel）.

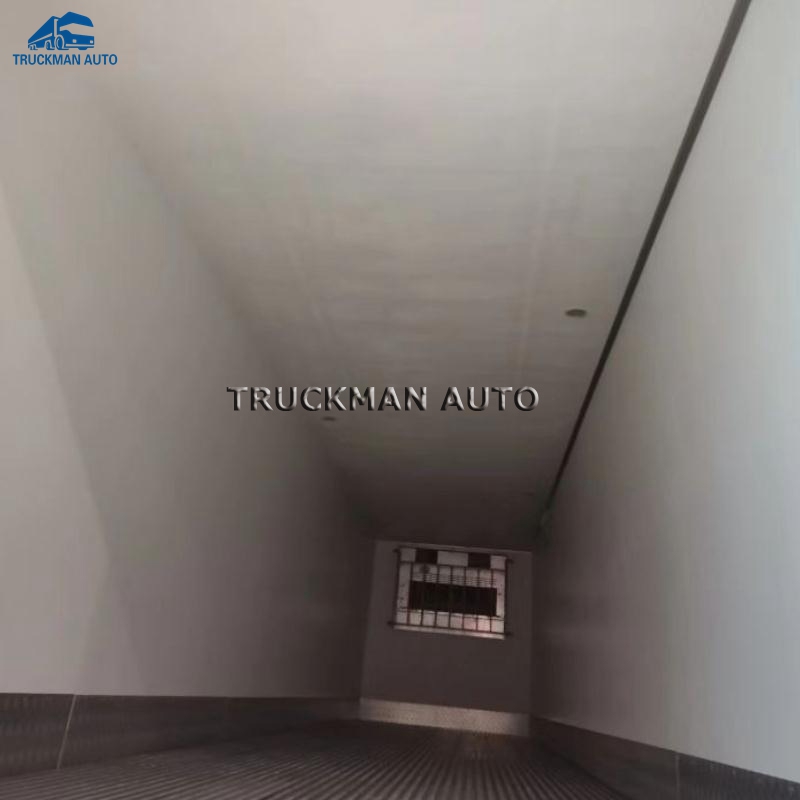

Material: the external is made of GRP and the internal is polyurethane foam.

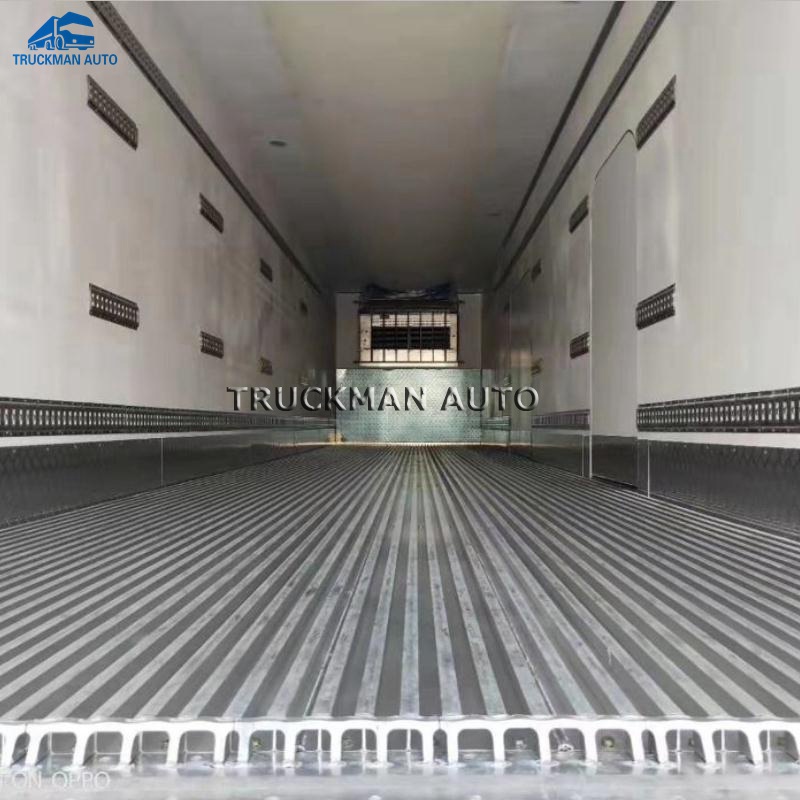

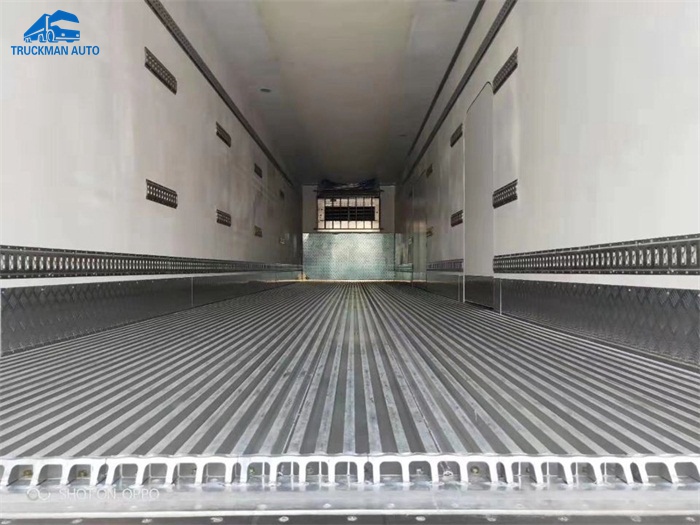

-. Designed especially for frozen food & fresh vegetables transportation. T-shape aluminum alloy track
is equipped on the floor panel.
