The welding: Welded By CO2 Gas Protection welding
Welding Seam: Using second time sand blasting
Painting system: Crylic acid modify alkyd paint,Painting and roast
Refrigerator: Thermoking SLXI400-50
Body Assembly(Freon-free Polyuret Hane and Grp Material)
All-Close Panel,Adhensive structure with the type of building block,Freon-Free polyurethane vesicant Material is our innovation,which is very different with traditional open sandwich panel with connect by metals injected polyurethane at site with freon,at last finish the production by heating,vacuum and pressure using special equipment.

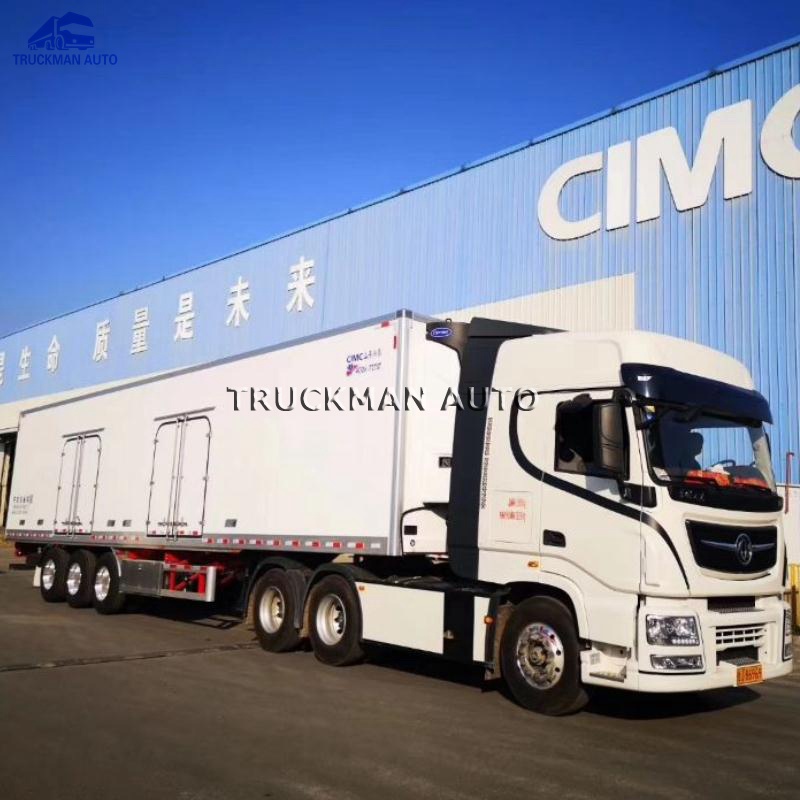

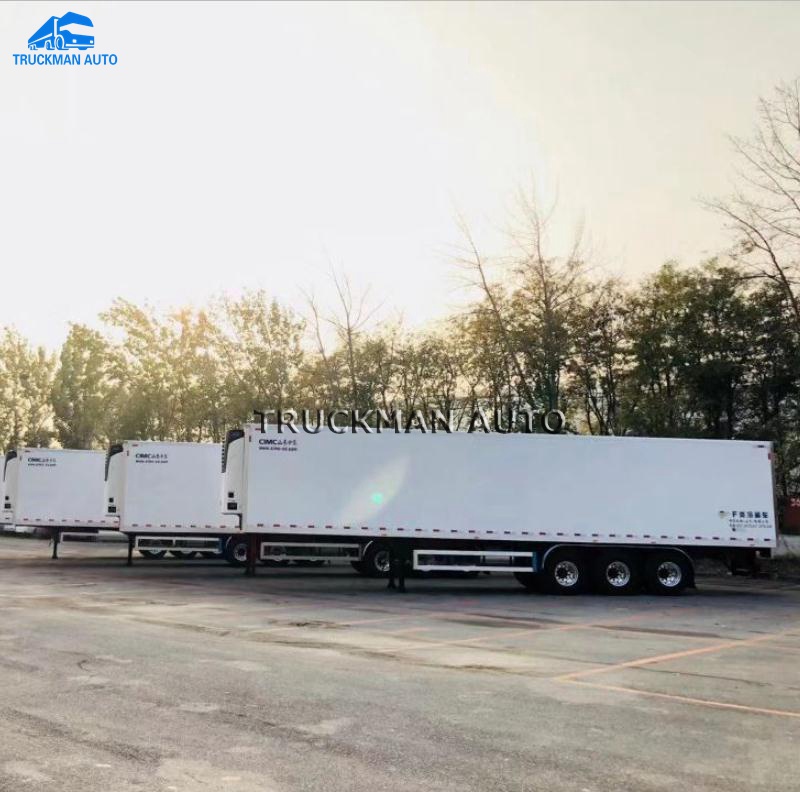

CIMC 3 Axles 40 Tons Refrigerated SemiTrailer | |||||
Model: TMA9390XLC | |||||
Refrigerator:Thermoking | |||||
Kinpin:2" or 3.5" | |||||
Landing Gear: 28T Double Speed JOST brand | |||||
Suspension:Machenical,FUWA brand | |||||
Axles:FUWA 13t*3 | |||||
Rim:8.5-20,13pcs | |||||
Tires:13 pcs,12.00R20,Triangle brand with spare one | |||||
Electricity system:Entire air proof bunch lamps,seven core socket. | |||||
Brake system:Haldex Emergency relay valve,ISO standard Handle Joint and Valve,KEMI ABS System | |||||
1 set Spare tire carrier and Tool box | |||||
Overall dimension:12500*2600*4080mm | |||||
Wheelbase:6280+1310+1310mm | |||||
Rated Payload 40000 kgs | |||||
G.V.W:50000 Kgs |
TRUCK BODY SPECS | |||||
Outside dimension of truck boday | 12500*2600*2710mm | ||||
The volume of body | 74m3 | ||||
Total Thermal transmittance | ≤50 | ||||
Gas Leakage Rate | ≤40m3/h | ||||
Refrigerator | Thermoking SLXI400-50 |
Note:The Standard refrigerated box is 105mm(roof&floor panel) and 82mm(side panel).Material:The external is made of GRP and the internal is polyurethane foam
This truck is designed especially for frozen food & fresh vegetables transportation.T-shape aluminum alloy track is equipped on the floor Panel.
