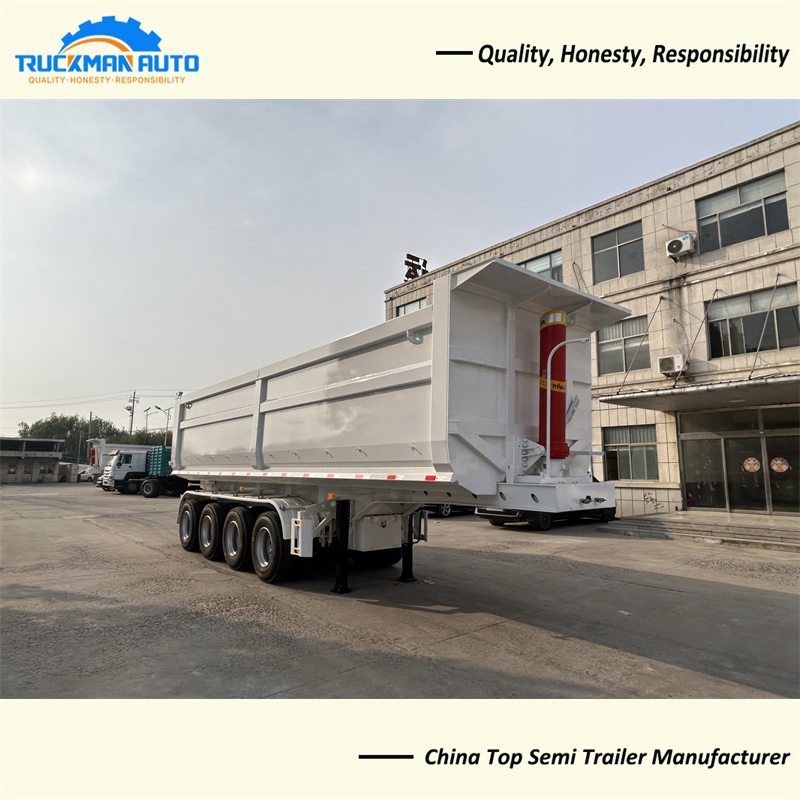

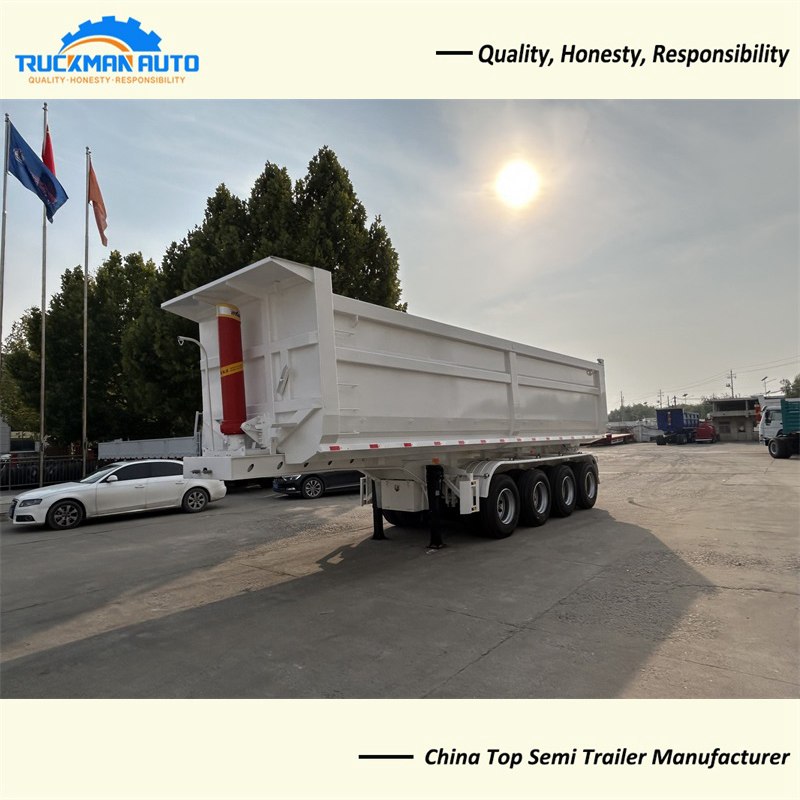

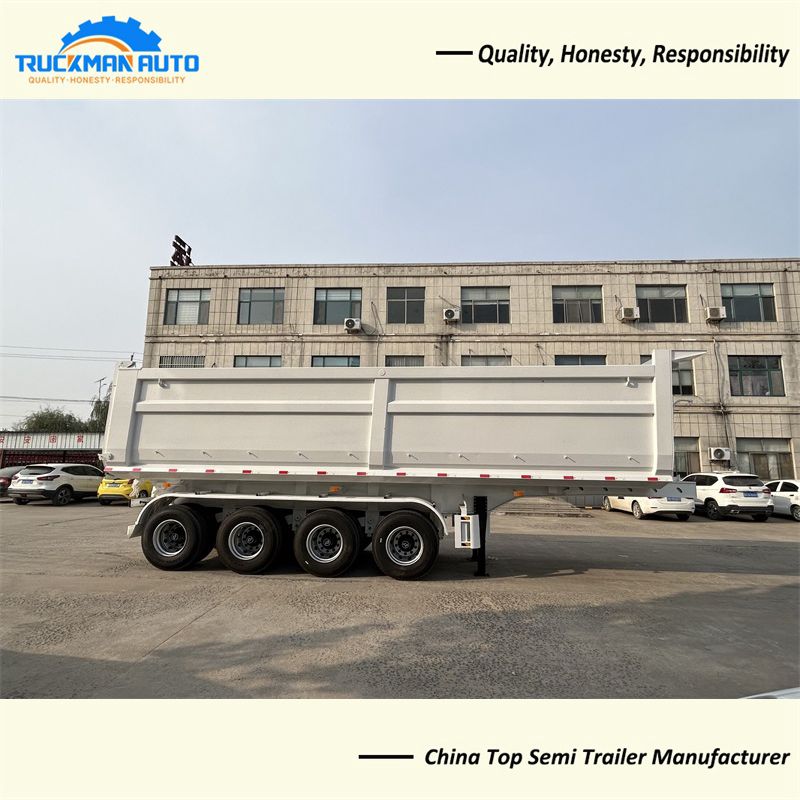

4 Axles Tipper Truck Trailer

4 Axles Tipper Truck Trailer Lifting System Detail

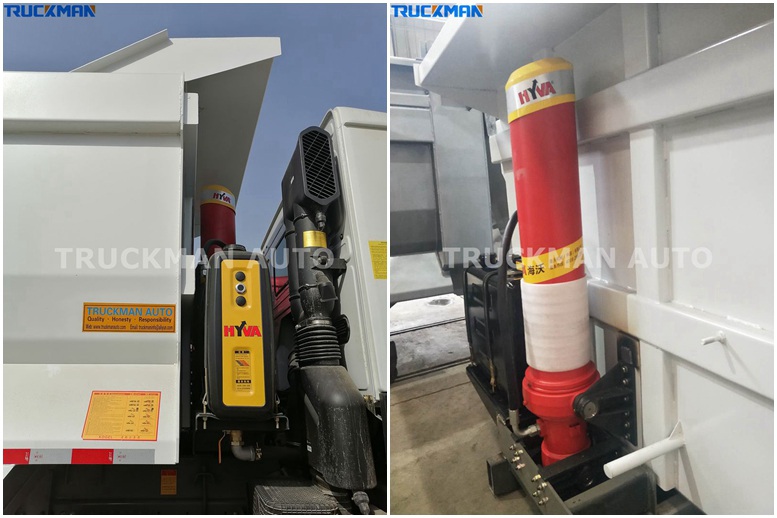

The tipper truck trailer lifting system is the front hydraulic lifting system, HYVA brand. Fast and smooth lifting and lowering, safer and more reliable. It mainly consists of hydraulic tilting mechanism, front lifting mechanism, hydraulic cylinder, force extractor, air-controlled distribution valve, air hole manipulation valve, oil pump drive shaft, limit valve, compartment, back door automatic opening and closing mechanism, compartment safety brace, balance frame and compartment safety restriction cable.

4 Axles Tipper Truck Trailer Specification

Product Name: 4 Axles Tipper Truck Trailer

Application: Construction and mining material

Axle: 4 axles, 4x16 tons, FUWA brand

Tire: 315/80R22.5, 12 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Cargo Body: 40 cubic meters

Support Leg: 28 tons, JOST brand

Dimension: 11800x2500x3630mm

The 4 axles tipper truck trailer specification only for your reference, we can manufacture other model tipper truck trailer basic your request.

4 Axles Tipper Truck Trailer Tire Details

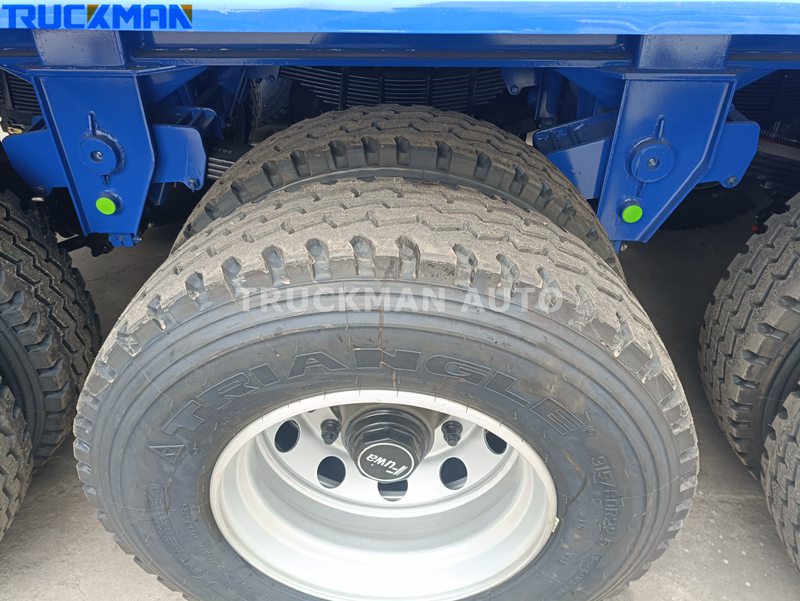

4 axles tipper truck trailer tire have two model, radial and tubeless model. The radial tire most popular model is 12.00R20, this type tire suitable for heavy duty loading and drive at off road, with wear-resistant, strong load-bearing capacity and other characteristics. And 315/80R22.5 tubeless tire is very popular in long distance transportation work, this tyre is cost-effective for transporting general cargo.

4 Axles Tipper Truck Trailer Steel

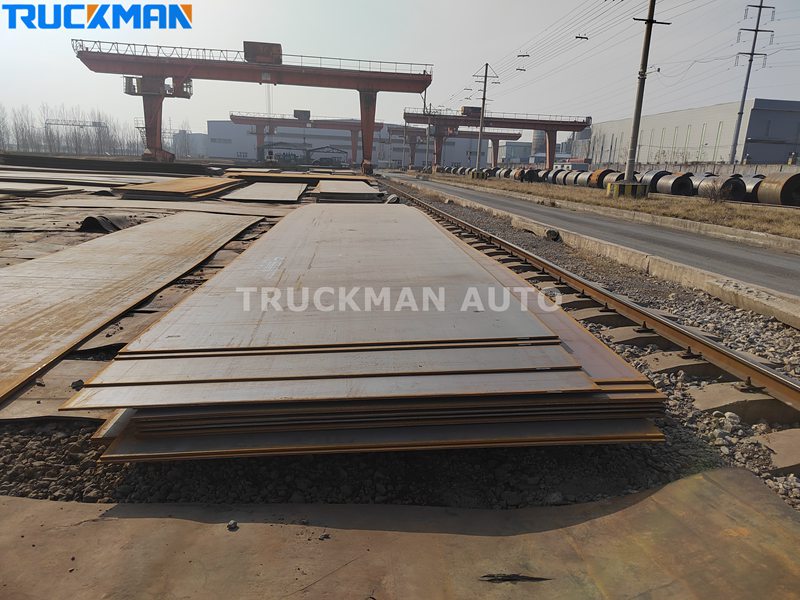

4 axles tipper truck trailer adopt the manganese steel, high strength steel and HARDOX Wear-resistant steel plate. The manganese steel suitable for the normal cargoes transportation, such as the sand, gravel etc. Cargo body thickness is bottom 8mm, side 6mm. And for loading the big stone, suggest choose the HARDOX steel, the cargo body thickness is bottom 12mm, side 10mm. We will recommend the right steel for your application.
