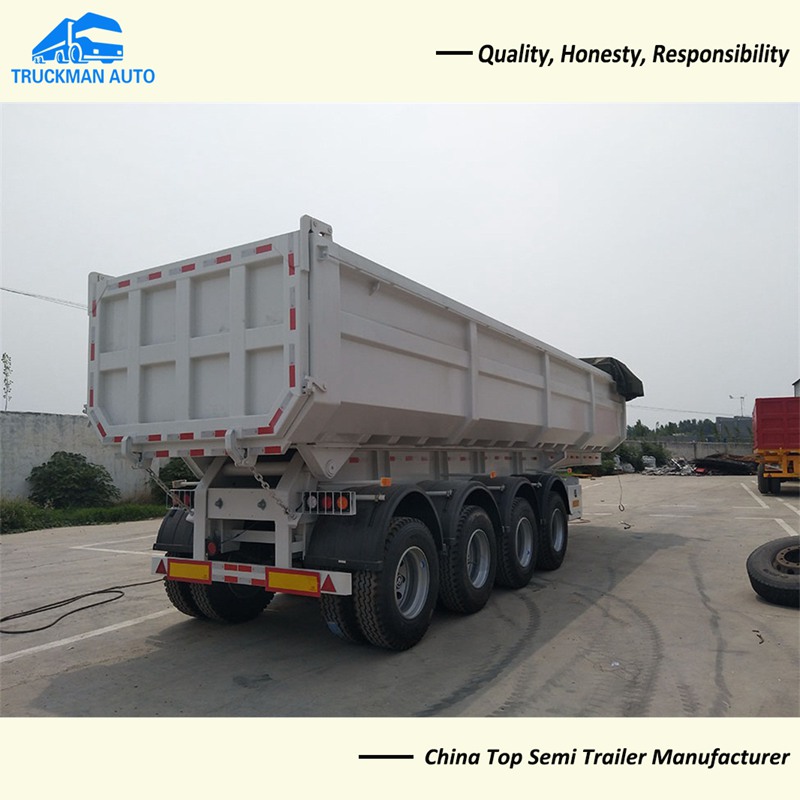

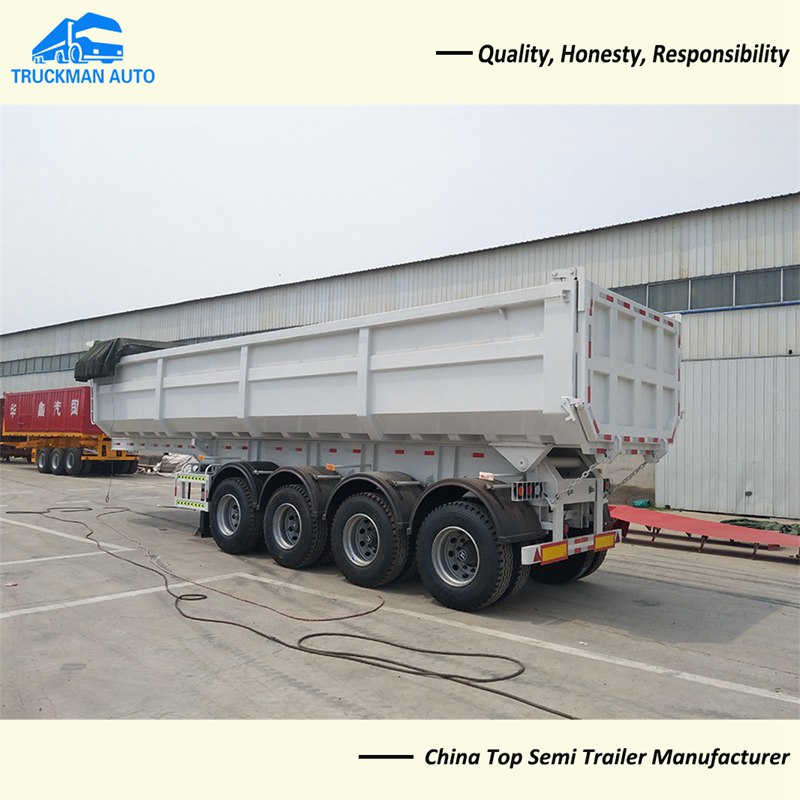

This U shape rear dumping semi trailer is used to transport and tipping sand, stone, grain, etc.
1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2>The most skilled workers make welding of this dump trailer more frequent and strong.
3>Dump box dimensions and U-shape, box thickness, HYVA hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
|
Trailer Model
|
China Factory 3 Axle 35 cubic meter U Shape Dumping Tipper Semi Trailer
|
|
Model Number
|
TMA940TO105
|
|
Overall Dimension
|
11000mm x 2500mm x 3800mm
|
|
(Lx W x H)(mm)
|
10500mm x 2300mm x 1800mm or 36 cubic meter
|
|
Inner Dimension
|
I shaped mild alloy Q345B by automatic submerged
|
|
Main beam
|
arc welding 18 - 8+6 - 18mm
|
|
Platform thickness
|
8mm
|
|
Side wall thickness
|
6mm
|
|
Hydraulic System:
|
Full set of HYVA Hydraulic System
|
|
King pin
|
50mm/90mm Jost brand
|
|
Land gear
|
28t Jost brand
|
|
axles
|
ZY,BPW,FUWA brand, 3*13T
|
|
Track
|
1840/1840/1840
|
|
Suspension:
|
Mechanical Suspension
|
|
Tire
|
12R22.5 standard brand 16pcs
|
|
Brake system
|
30/30 type on each axle ,WABCO brake valve
|
|
Spare wheel carrier
|
2 pcs
|
|
Tool box
|
1 pcs
|
|
Electrical System
|
Chinese standard 24V lighting system
|
|
Brake:
|
Dual Lines Pneumatic Brake System. T30/30 Air Chamber; Parking Brake
|
|
Brake air chamber
|
8 big chambers
|
|
Electrical system
|
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
|
|
|
Tail lamp with turn signal, brake light & reflector, side lamp etc.
|
|
|
One set 6-core standard Cable.
|
|
Packing
|
Nude, Polish with wax before shipping
|
|
warranty
|
18-36month
|
According your requirements,wo can choose BPW axle,ZY,HJ,CIMC or FUWA axle,air suspension or leaf spring suspension.We adopt 8 big double air chambers.
What are our advantages?
- Competitive Price -- We work as the leading dealers of various leading China Semi Trailers manufacturers/factories, and are treated with best dealership prices every year. From numerous comparison and feedback from clients, our price is more competitive than manufacturers/factories.
- Our Service-- we not only provide all trailer and trucks but also with long life warranty,Parts and Engineers is available to your site.
- Quick Response-- Our team is consisted of a group of diligent and enterprising people, working 24/7 to respond client inquiries and questions all the time. Most problems can be solved within 12 hours.
- Fast delivery -- Normally it will take more than 25-45 days for manufacturers/ factories to produce the ordered trailers, while we have a variety of resources, locally and nation widely, to receive trailers in timely manner. In 70% circumstance, we can have a 15-20 days delivery of regular trailers for our clients.
