Parameter：
|
|
Overall Dimension
|
12500(L)*2500(W)*4000(H)mm
|
|
Tare Weight
|
10.5T
|
|
Pay Load
|
50T
|
|
Loading Volume
|
45CBM
|
|
Suspension
|
Mechanical Suspension with 10-layers leaf spring
|
|
Tanker thickness
|
4mm
|
|
Dish head
|
5mm
|
|
Floor
|
Floor Plate Thickness--2.0mm
|
|
King Pin
|
2"(50mm)or3.5"(90mm)
|
|
Landing Gear
|
Heavy Duty 28ton*2
|
|
Tyre
|
12R22.5
|
|
Axies
|
3*13T
|
|
Air compressor
|
Bohai 12 cubic double cylinder
|
|
Diesel engine
|
Weichai 4102
|
|
Light
|
Tail lamp with turn signal,brake light & reflector,side lamp etc
|
|
Tool Box
|
1pc tool kit box made of stainless steel
|
|
Hydraulic Jack
|
50Tons*1pc
|
|
Tire Spanner
|
1pc
|
|
Painting
|
Primer Coating, Top Painting, Wax Polishing
|
|
Color
|
Any color
|

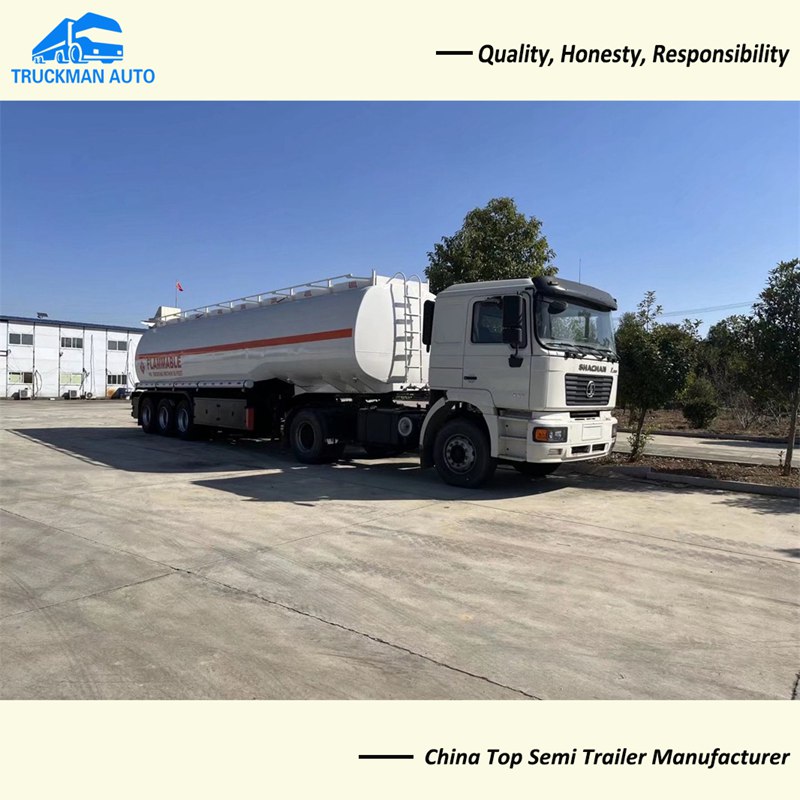

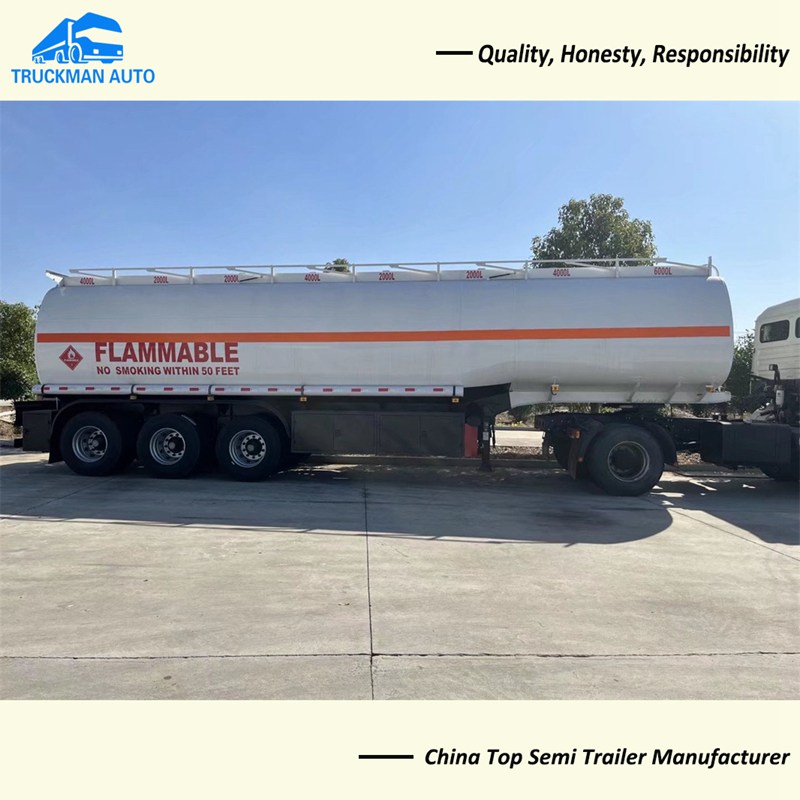

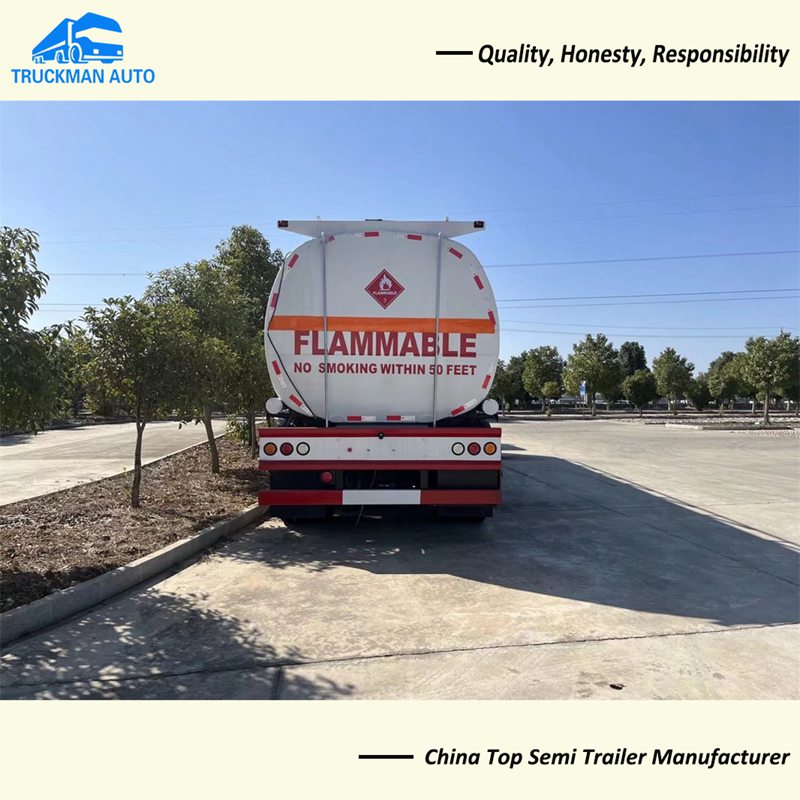

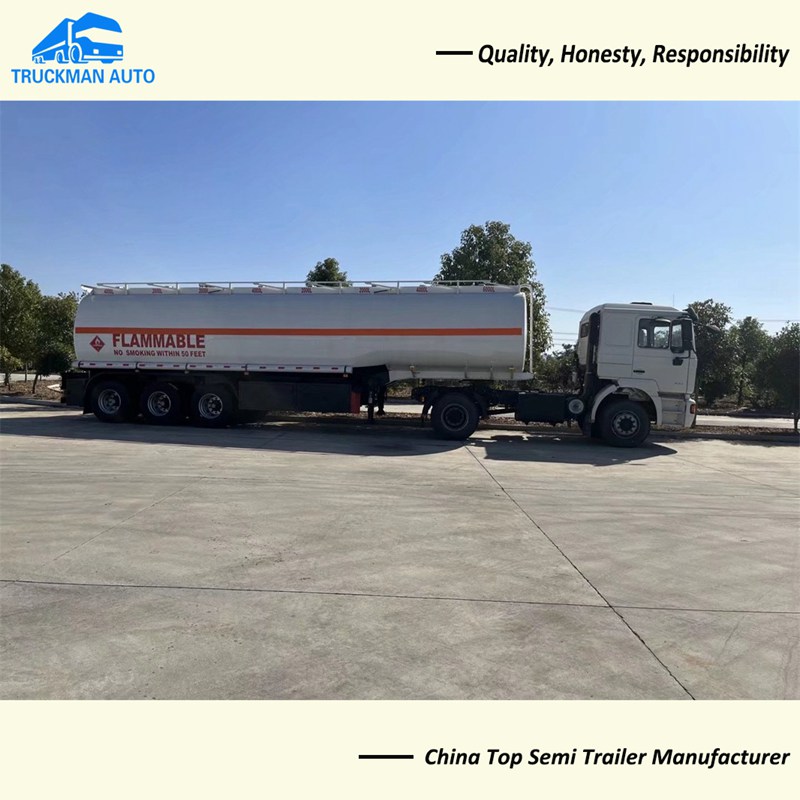

45 Cubic meters Fuel Tanker Oil Tank Trailer
The tank body is made of high-quality steel, advanced technology and strict production process.
The structure of the vehicle is reasonable, the performance is reliable, the operation is simple and the appearance is beautiful.
All parts are manufactured by famous manufacturers at home and abroad, and they are purchased, inspected and used in strict accordance with the requirements of quality system documents to ensure the good performance of the trailer.
The tank body is made of 4 mm or 6 mm high-quality carbon steel according to your needs.
The shape of the tank body is divided into oval or square round tanks.
The tank body is made of 4 mm or 6 mm high-quality carbon steel according to your needs.
The shape of the tank body is divided into oval or square round tanks.
ADVANTAGES
1. Heavy duty and extra durability designed; Opting for high tensile steel Q355, welded by automatic Submerged-Arc processes.
2. Heavy machinery suspension with leaf spring.
3. Two-line brake system with automatic brake system/chamber.
4. Welding tightness is strictly tested for solid tires, which are highly elastic and wear-resistant.
5. The material of the storage tank can be aluminum alloy, carbon steel stainless steel,etc.
