Side Loader Container Trailer equipped with Power take off (PTO) or Diesel APU,While typically the cranes are powered by a trailer mounted diesel engine, the cranes are sometimes powered via a PTO from the truck header tractor.Container Side Loader Trailer adopts wireless remote control technology, loading container just takes 10 mins.
| MAIN SPECIFICATION of self loading container truck trailer | |
| Overall(L*W*H) | 14100*2500*4100mm |
| The distance between trailer and container | Optimum distance:400mm |
| The largest distance :1500mm | |
| Side Lifter Specification | Design criteria: GB/T 3811-2008 |
| Side Lifter Crane | Quality Side Crane |
| Max. lifting capacity | 40000kg |
| Max.stabiliser outreach | 3200mm |
| Max. working range | 4000mm |
| Max. pressure of hydraulic | 28MPa |
| Hydraulic system |
Hydraulic pump: Italian CASAPPA |
| Electric control system |
Hydraulic control valve: Netherlandish AMCA |
| Telecontroller: German NBB | |
| Voltage: 12V | |
| Two chain | Two chain: lgus (imported) |
| Diesel engine |
Japanese Kubota diesel engine |
| Trailer Chassis | L*W*H:14100*2500*4000mm |
| Axles: 3*13 tons axles | |
| Tire: 12R22.5 tubless tire, 12 pcs | |
| Suspension:Heavy duty type mechanical suspension | |
| Kingpin:2 inch or 3.5 inch bolted type | |
| Landing gear: 28T | |
| Water-drenching device | |
| Spare parts | Imported from Swedish |

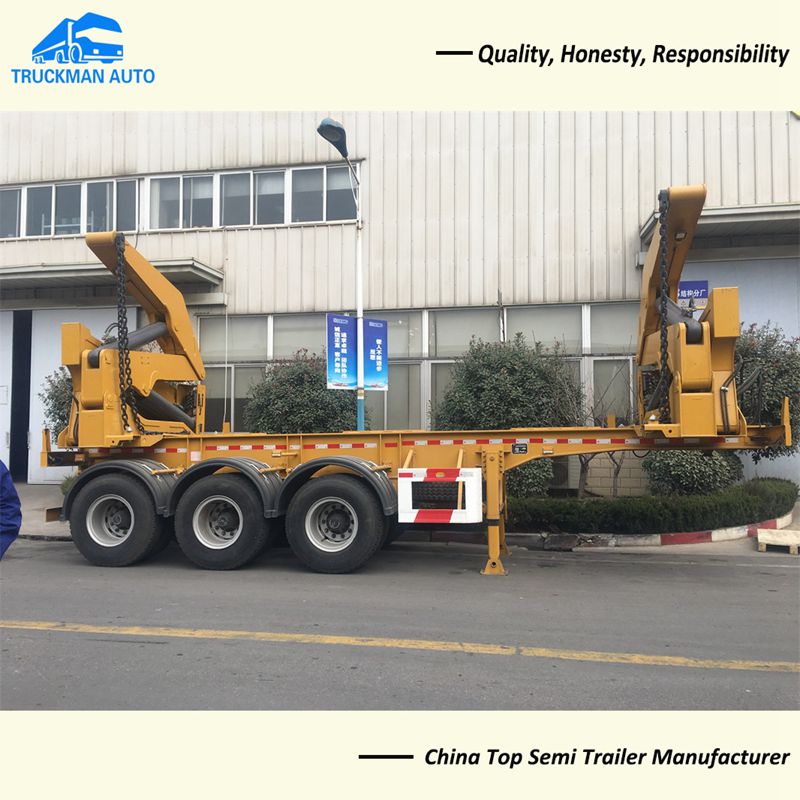

* 40ft Container Side Loader is used for loading and unloading 40ft container or 20ft container.
* Lifting Capacity: The max. lifting capacity is 40 ton to meet your transport requirement.
* 40ft Container Side Loader adpots wireless remote control technology, loading container just takes 10 mins.
* A power source, 40ft Container Side Loader equipped with Power take off (PTO) or Diesel APU,While typically the cranes
are powered by a trailer mounted diesel engine, the cranes are sometimes powered via a PTO from the truck head.
