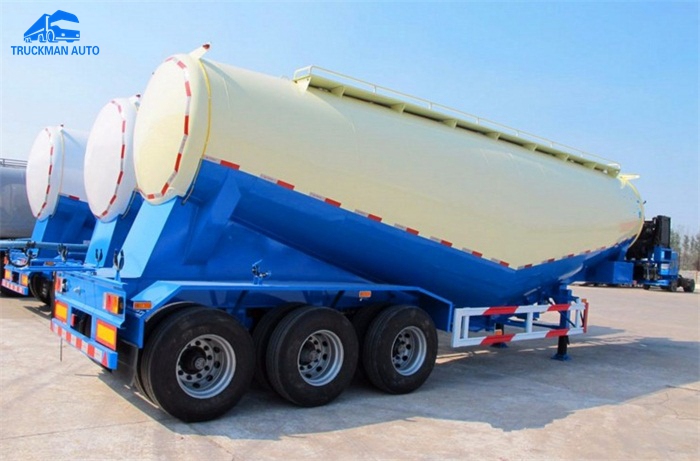

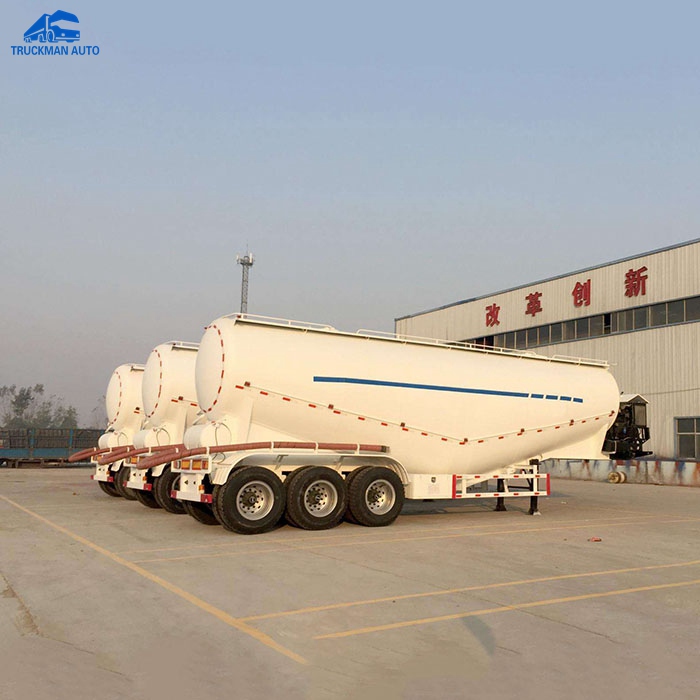

TRUCKMAN AUTO 3 Axles 45m3 Concrete Mixer Cement Tanker Trailer

TRUCKMAN as TOP semi trailer manufacturer in China, have full and mature experience design and

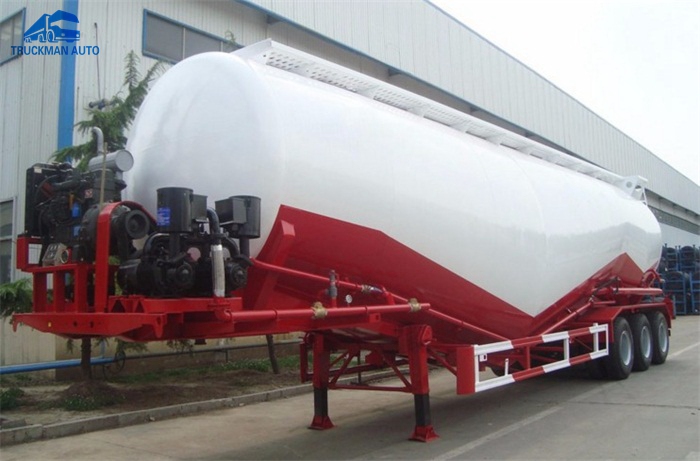

produce the cement tanker trailers. The key parts such as diesel engine adopt the WEICHAI 4105 model

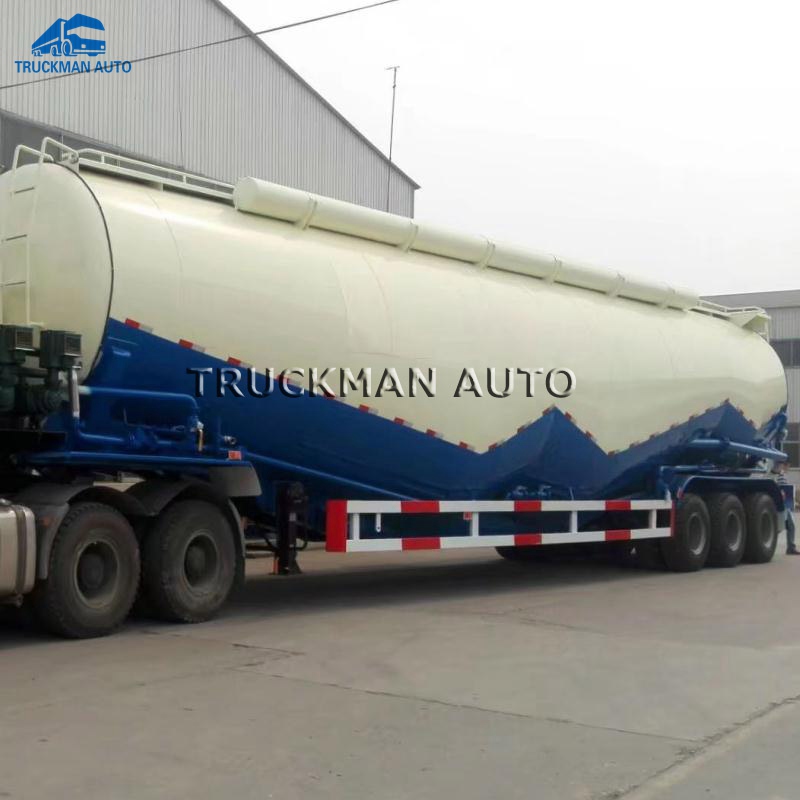

and tanker body is "V" type design. According to our customers feedback, we also improve the leaf spring

thickness, such use 120mmx16mm replace the 90mmx13mm leaf spring. and even the tire rim thickness

increase to 18mm. The tanker body is welded by co2 automatic welder.

Other Parts.

-. 2 pieces of manhole caps that have single cover and having durability for test pressure

-. 1 air pressure gauge

-. 1 under lap tool box (on body)

-. 1 non slip floor, walking platform

-. 1 ladder (climbed from behind)

-. 2 PVC pipes to carry unloading hoses

Main Specification For The Concrete Mixer Cement Trailer.

Dimension:12.5m×2.5m×3.85m (Outside)

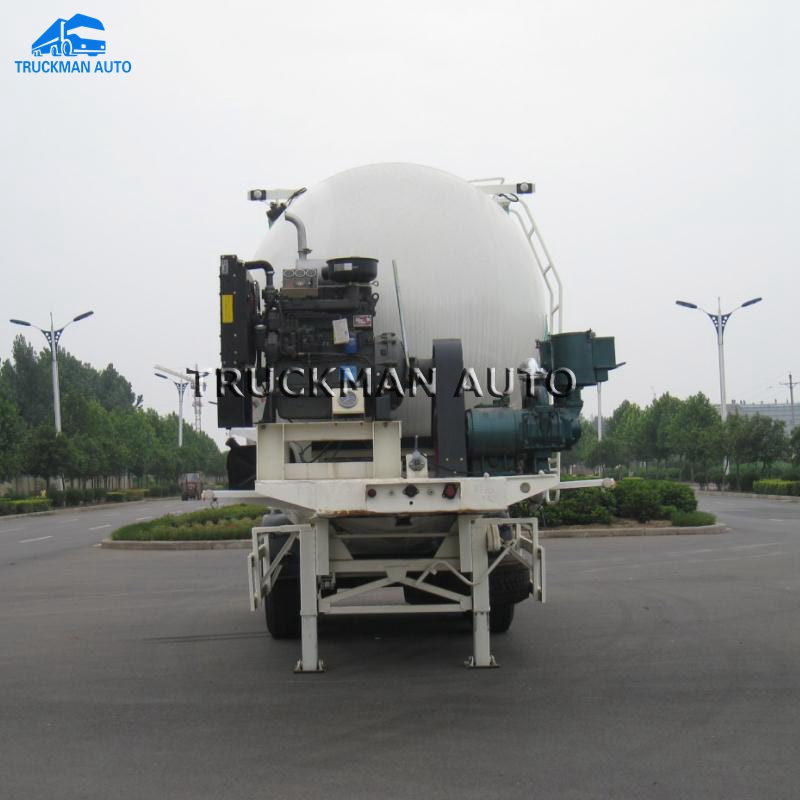

Diesel Engine: WEICHAI  4105

Tanker Body: 45m3

Frame: Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material

Upper and lower plate is 18mm, middle is 8mm. height is 500 mm

Axle: 3 axles, BPW/FUWA/HJ brand

Landing Gear: JOST E100. 28T

King Pin: JOST 3.5 inch bolt-in king pin

Suspension: Mechanical suspension/Germany or America type/air suspension

Leaf Spring: 120mm(W)*16mm(T)*10 Layer

Braking System: WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.

Tire: 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional

Accessories: One standard tool box

Voltage: 24V
