We are the best and professional semi-trailer supplier.
We can give you better product and favorable price.
TRUCKMAN Trailer has successfully entered into over 40 countries around the world.

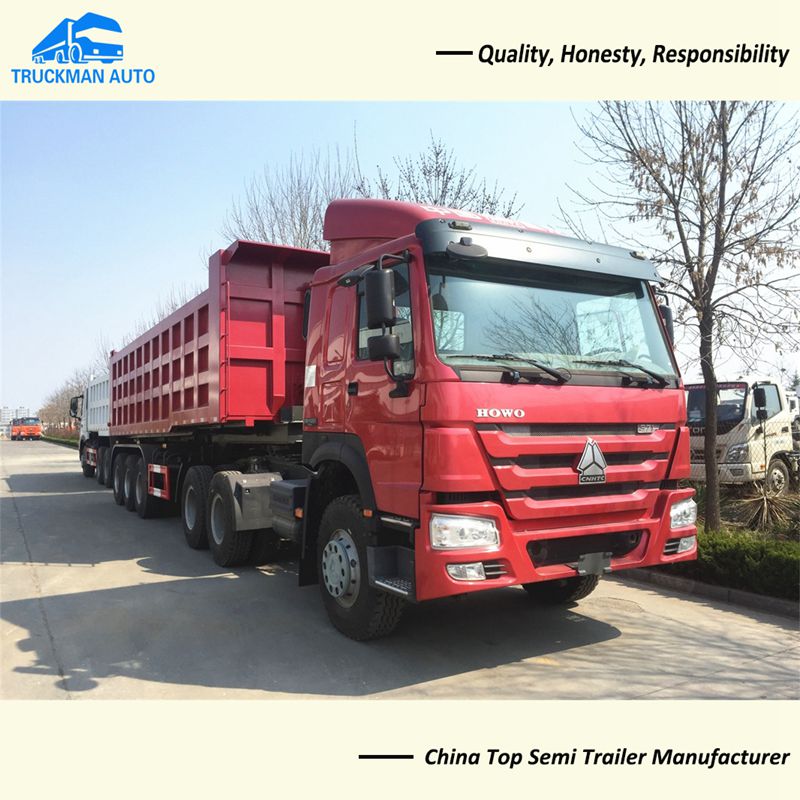

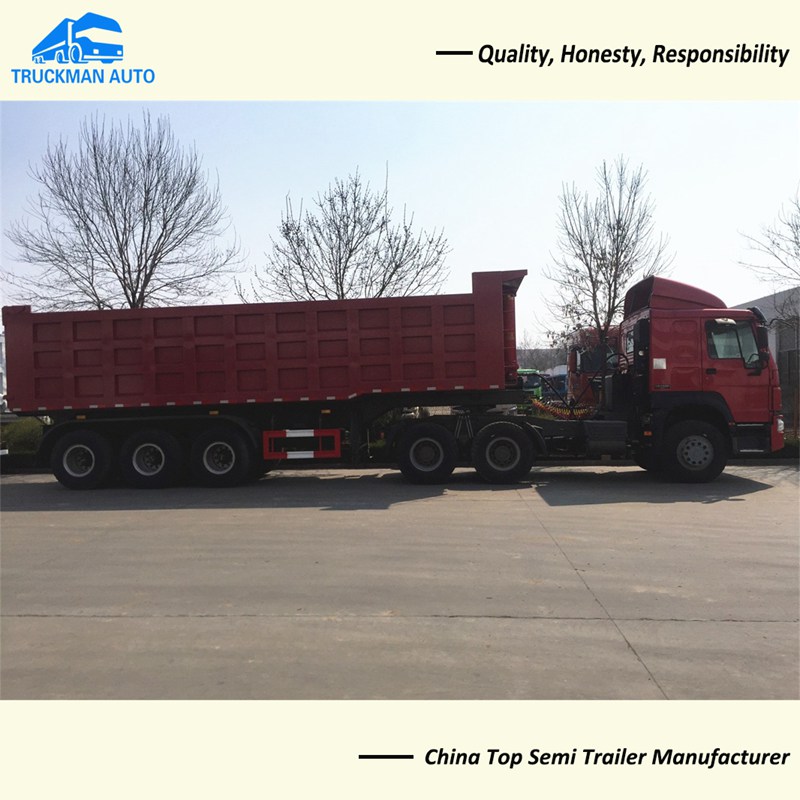

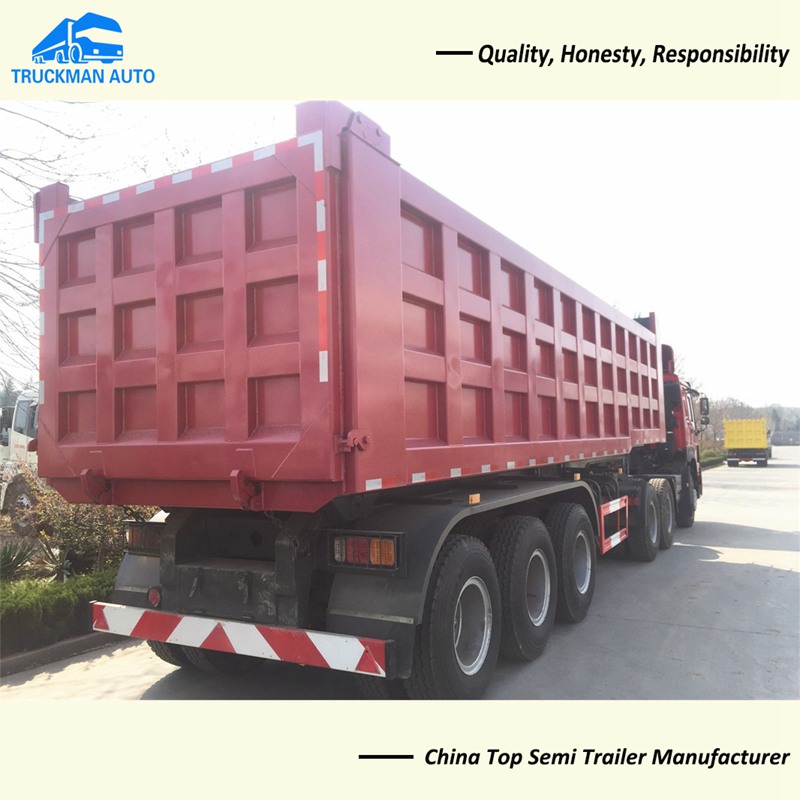

Truckman Dump truck Trailer is suitable for the transport of coal, ore, building materials and other bulk materials.After dump trailer can effectively load, unload and transport bulk cargo, U-shaped box is a popular product in construction transportation industry. 2 axle, 3 axle and 4 axle dump trailer with 40-80 tons load capacity can be provided according to customer requirements.We can offer you good quality and competitive price.
| Trailer Name |
low price high quality tri axle 3 axle 60 ton used dump semi trailer for sale HYVA Hydraulic cylinder dump tipping trailer , 40 ton tipper semi trailer , hydraulic dump truck trailer for sale |
| Dimensions | 10900mm*2500mm*3600mm |
| Loading | 30T, 40T, 45T, 50T, 60T, 24m3,25m3,30m3,40m3,45m3 |
| Tire | 11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle/Hankook/ Bridgestone brand |
| Material | Main beams Q355, upper flange:14mm, middle:10mm, down:16mm |
| Axles | 13T/16/20T BPW or FUWA brand |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | WABCO Valve with big chamber |
| LandingGears | JOST brand two-speed, Manual operating heavy duty 28ton |
| Suspension | Bogie suspension, spring suspension, Air suspension |
| Hydraulic system | HYVA brand |
| ElectricalSystem | 24v, 7core socket, lights according to European standards (suitable for all market) |
| LFloor | 8mm plate, side wall 6mm |
| Other parts | 1 tool boxs, 1 spare tire carrier |
| Functions | Transport sand,earth work, stone,etc |

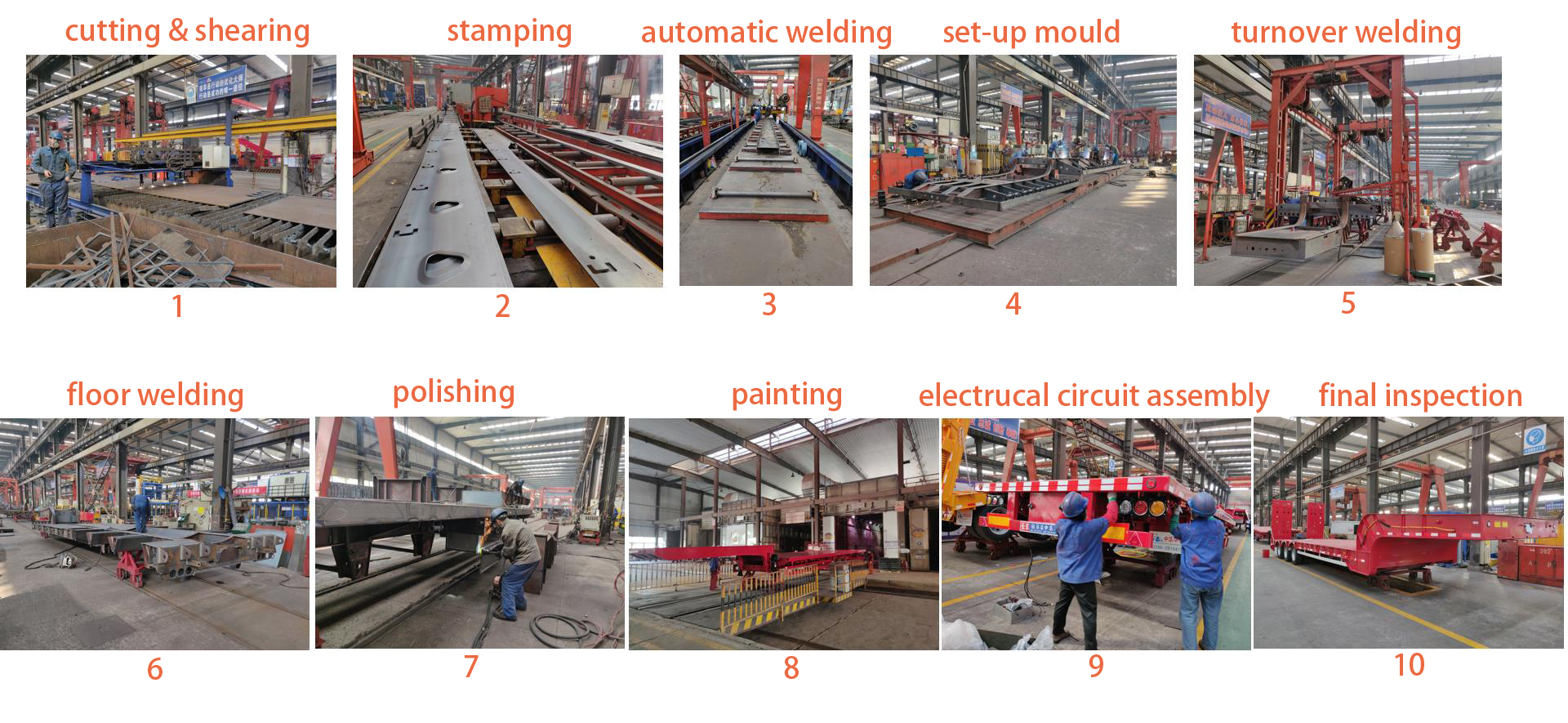

1. Design Drawing:
Before production, we will sent the design drawing to our customer to confirm the detail of the vehicle. We hope we can supply the most suitable product to our customer.
2. Cutting and Welding:
The I beam cutting adopt the Computer Numerical Control Plasma Cutting Machine.
The I beam welding adopt the Gantry Main Sill Welding Machine.
3. The Beam Welding:
Main beam and side beam all use I-shaped beam, it can ensure the trailer more durable.Reinforced rear plate can avoid the rear plate was broken away when heavy duty machines climbing the ramp of trailer.
4. Surface Treatment:
In order to remove the rust of the trailer body, we use the sand blasting to retreat the surface of the trailer. The trailer can have the beautiful appearance,the painting will be coating evenly, firm adhension, gloss more durable
5. Painting:
One layer of the anti-rust painting, two layer of painting
6. Test:
We will test the quality of the trailer before delivery.
Submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.

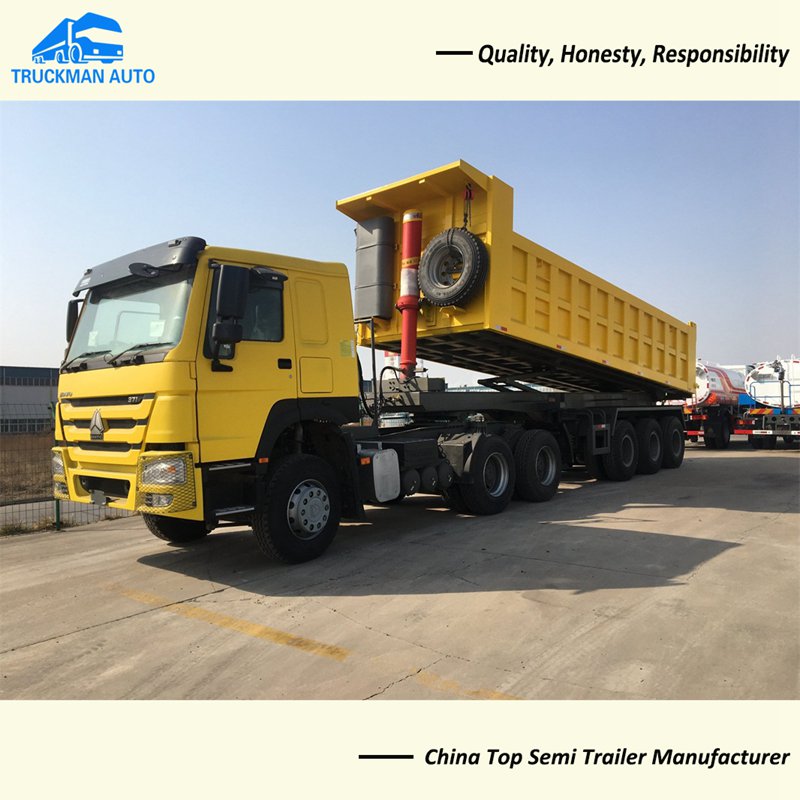

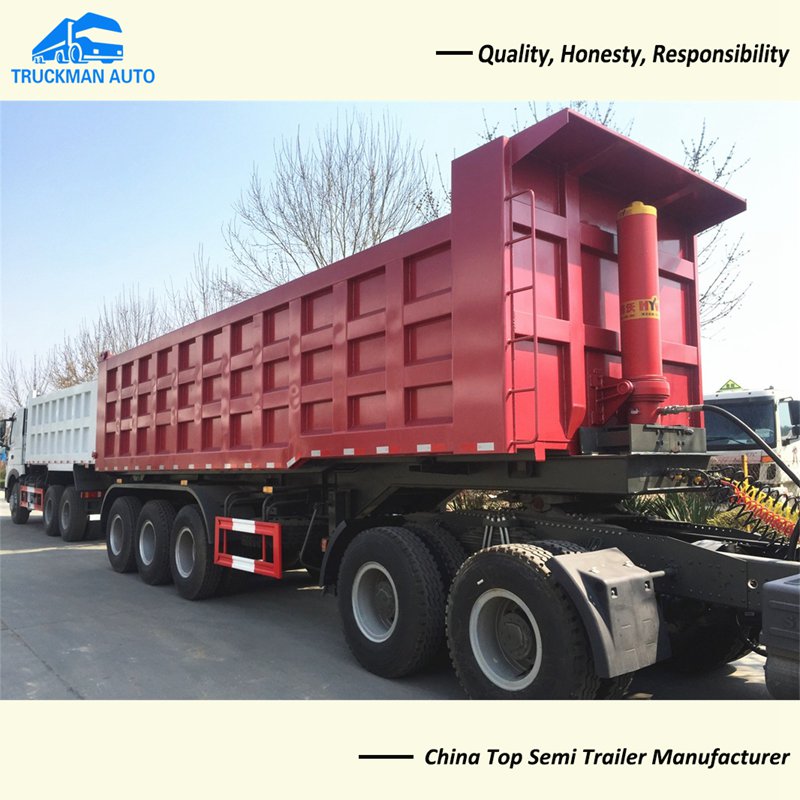

TRUCKMAN dump tipper trailer are equipped with Hydraulic cylinder, which is more reliable and more safety
Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
We suppply tipper semi trailers with multiple customization options.
