2 axles side sump trailers have a relatively low center of gravity, which makes the vehicle more stable during cornering, braking, and other operations, making it less likely to roll over and other dangerous situations, thereby improving safety during transportation.

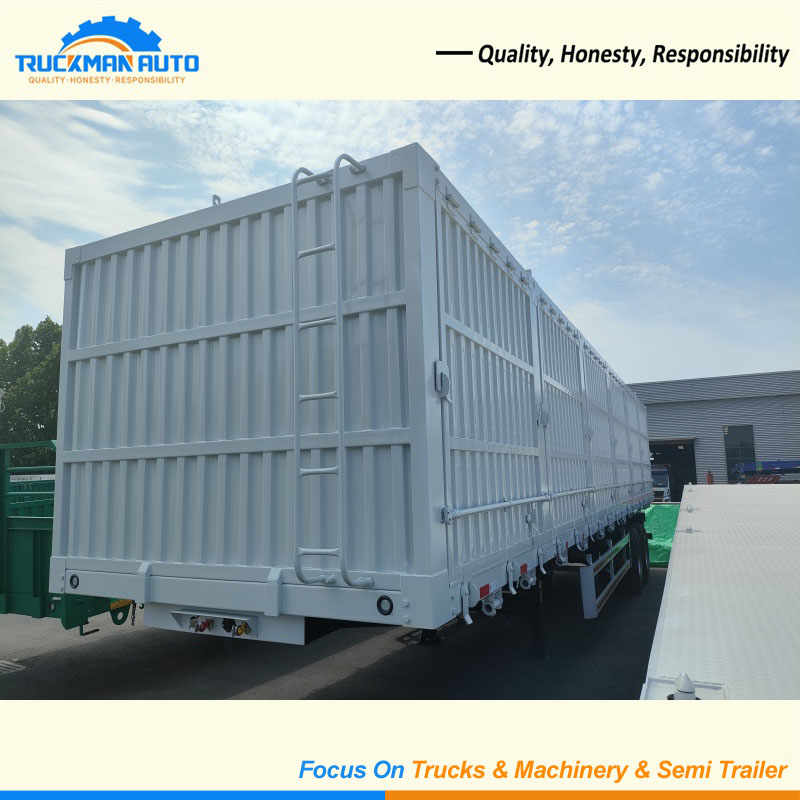

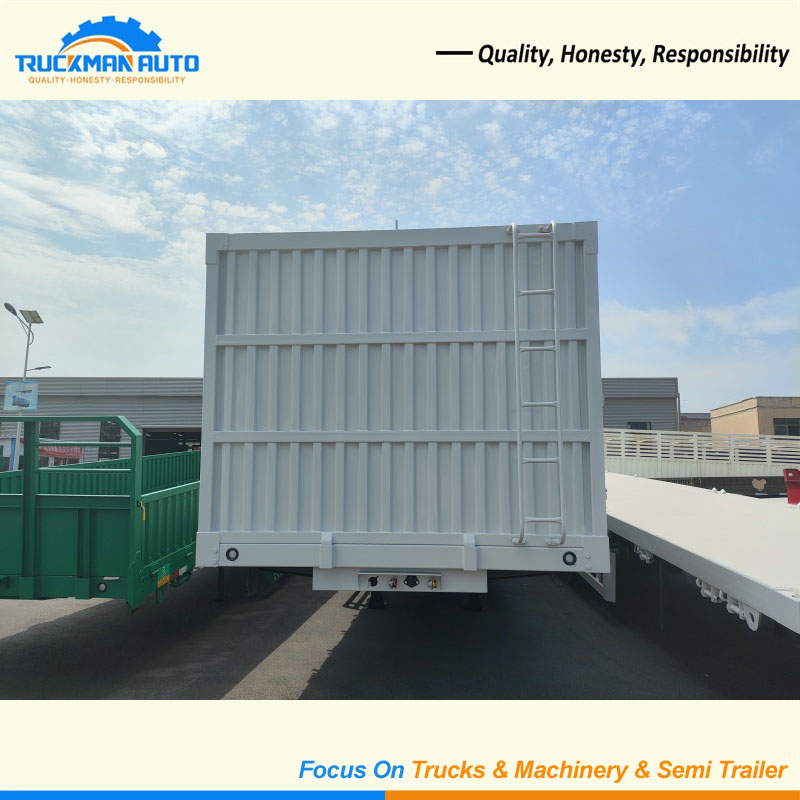

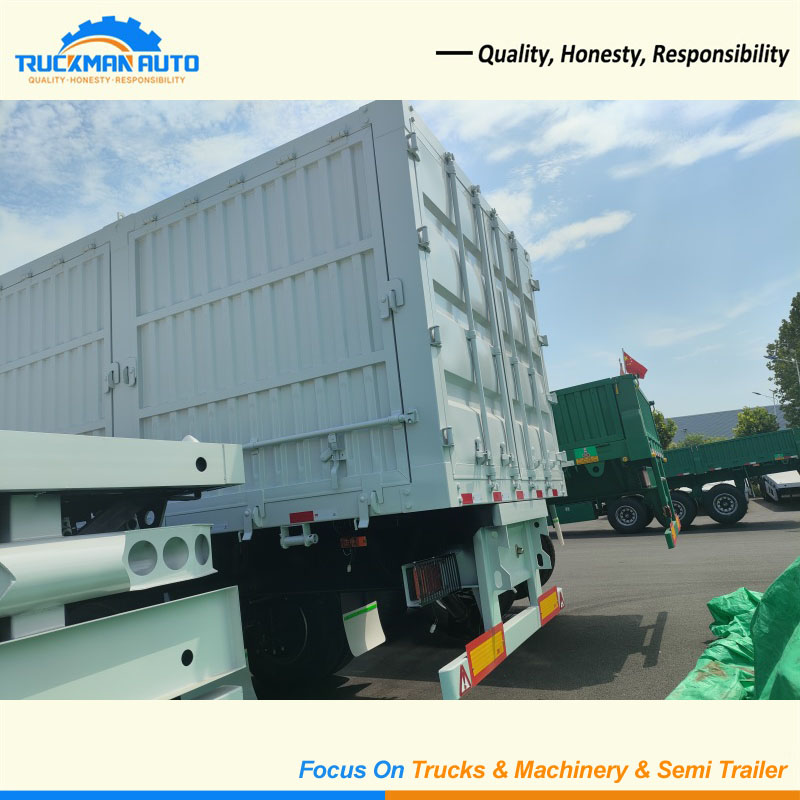

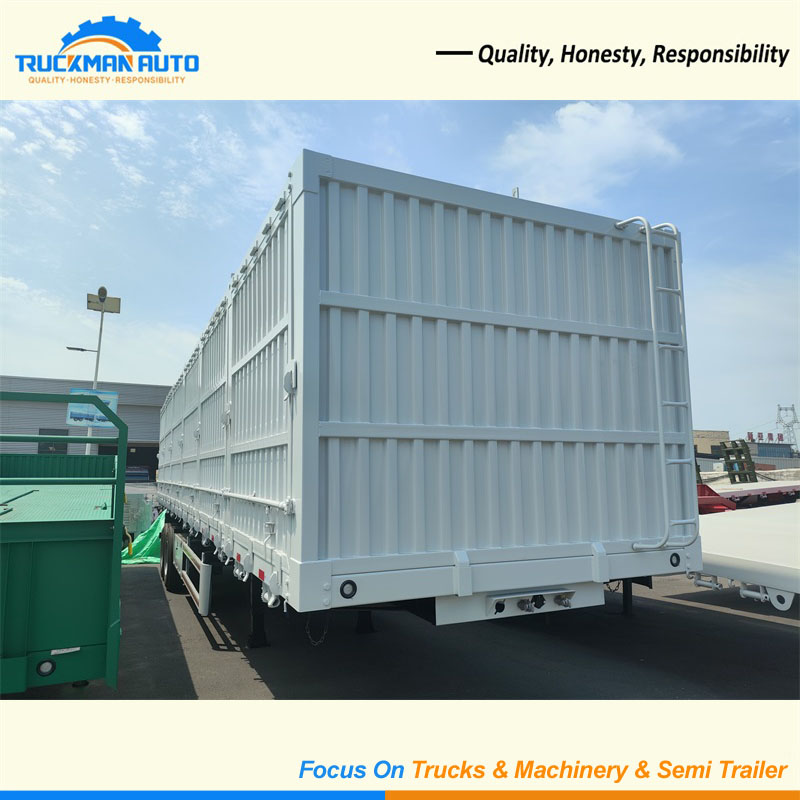

About Customized 2 Axles 40 Tons Side Dump Trailer
When unloading, a 2 axles side sump trailer tilts one side of the vehicle and opens the door, allowing cargo to quickly dump out, significantly reducing unloading time and significantly improving efficiency compared to traditional loading and unloading methods. The 2-axle side sump trailer features multiple lifting structures on the underside of the vehicle. During driving, the vehicle's weight is distributed across the frame and ground at multiple points, effectively maintaining balance and stability compared to vehicles with single axles or single-point loads, reducing shaking and bumps during driving.
Customized 2 Axles 40 Tons Side Dump Trailer Specification
Axle: 2x16000kg, 2 axle, ZY brand
Tire: 315/80R22.5, 8+1 pcs, TRIANGLE brand
Brake System: WABCO brand
Support Leg: 28 tons, JOST brand
Tractor Pin: 50#(2inch), JOST brand
Dimension: 10400x2500x34500mm
2 Axles 40 Tons Side Dump Trailer specification only for your reference, we can manufacture other model trailer basic your request.
Customized 2 Axles 40 Tons Side Dump Trailer Detailed Design

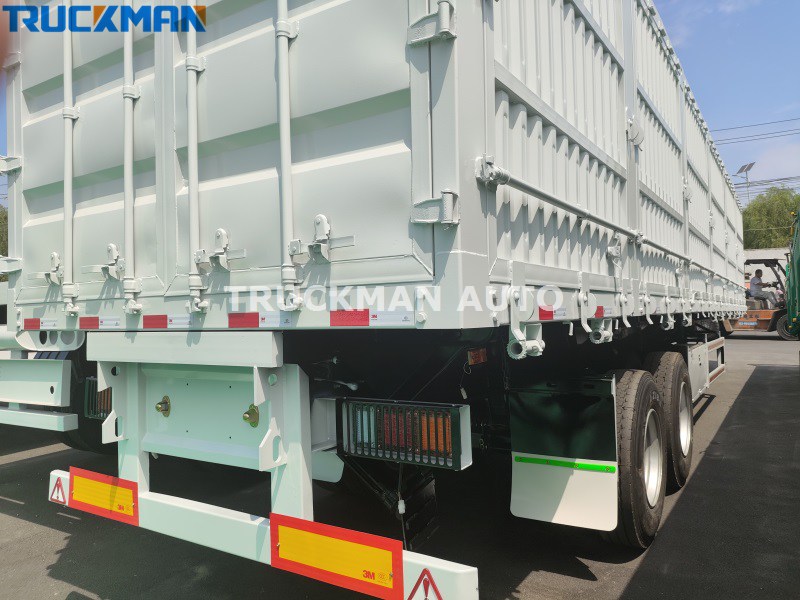

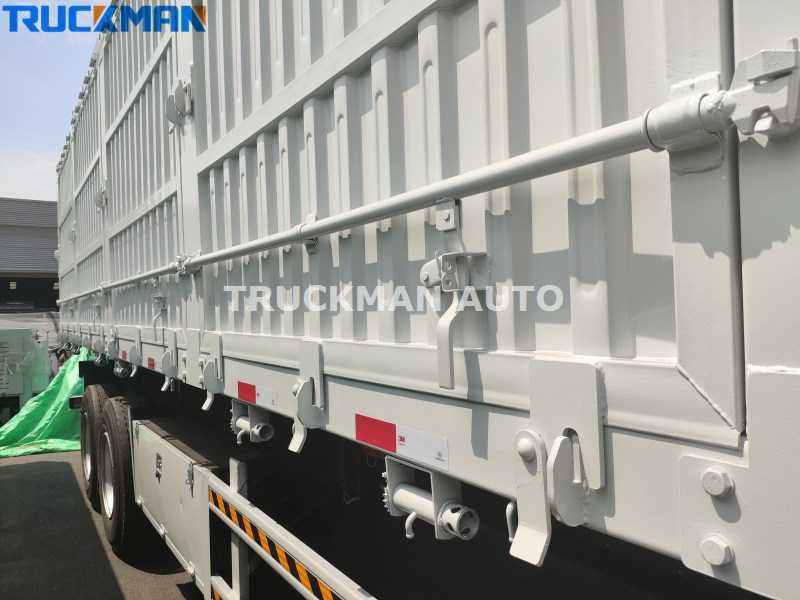

The 40 tons side sump trailer features numerous design details for customer convenience, such as rope tighteners and hooks on both sides of the cargo box. In cargo transportation and securing applications, such as in the logistics industry, using rope tighteners to tighten cargo straps can improve efficiency by more than ten times compared to traditional knotting methods. The hooks eliminate the hassle and time associated with knotting, while also reducing the safety hazards associated with loose knots, making it more convenient to use. While driving, vehicles may encounter various road conditions and unexpected situations, such as flying stones, scraping branches, and collisions. The taillight guards effectively cushion these impacts, preventing cracks in the headlight housing and damage to the bulbs, thereby extending the life of the headlights.
Customized 2 Axles 40 Tons Side Dump Trailer Cargo Body
The 2 axles side sump trailer utilizes a cargo box constructed of manganese plate. This material offers excellent rigidity and can withstand significant external forces without significant deformation. During lifting and unloading operations, the box maintains a stable shape, ensuring smooth unloading and minimizing the risk of spillage or damage due to box deformation. During transportation, vehicles may encounter various road conditions and unexpected situations, and a manganese plate box can better withstand these impacts, ensuring the safety of both cargo and vehicle.
