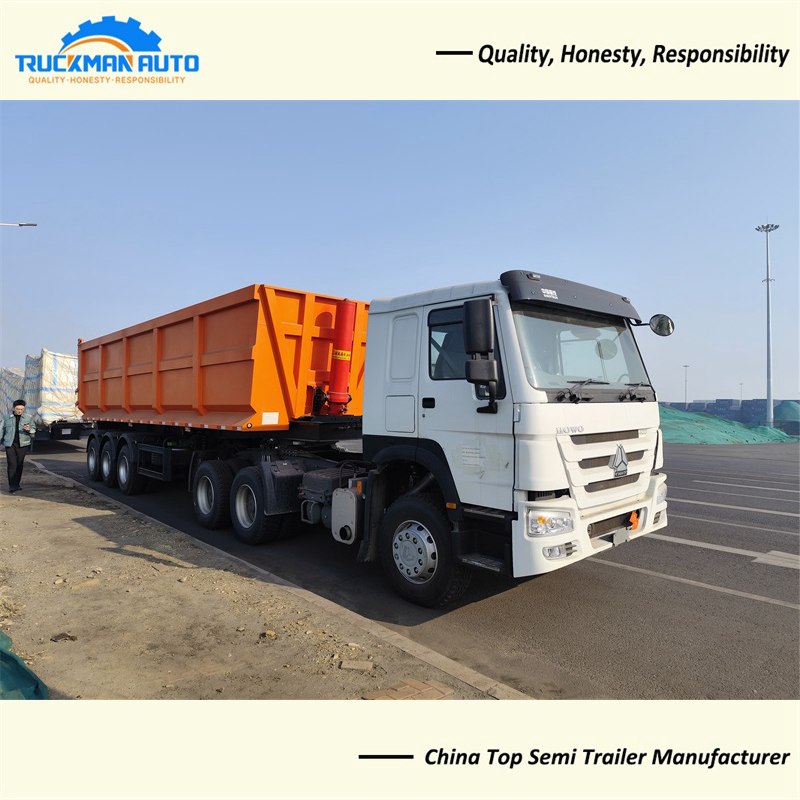

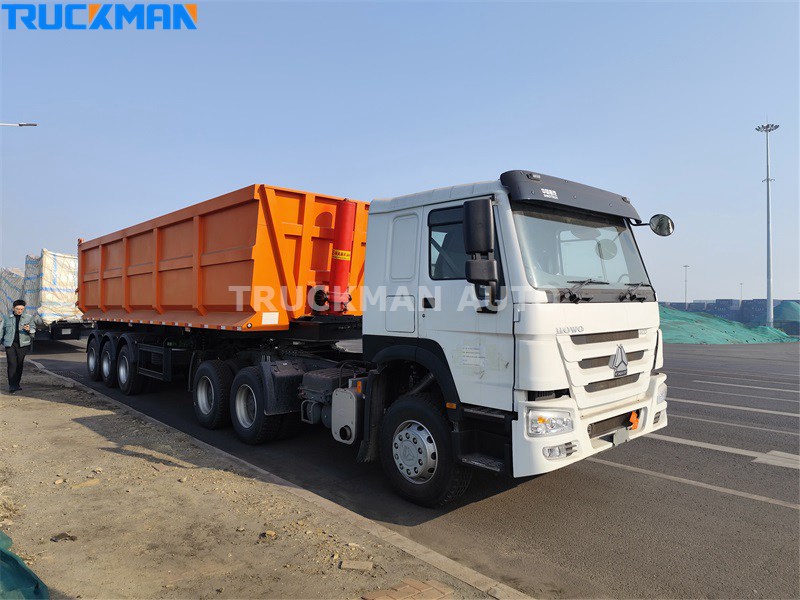

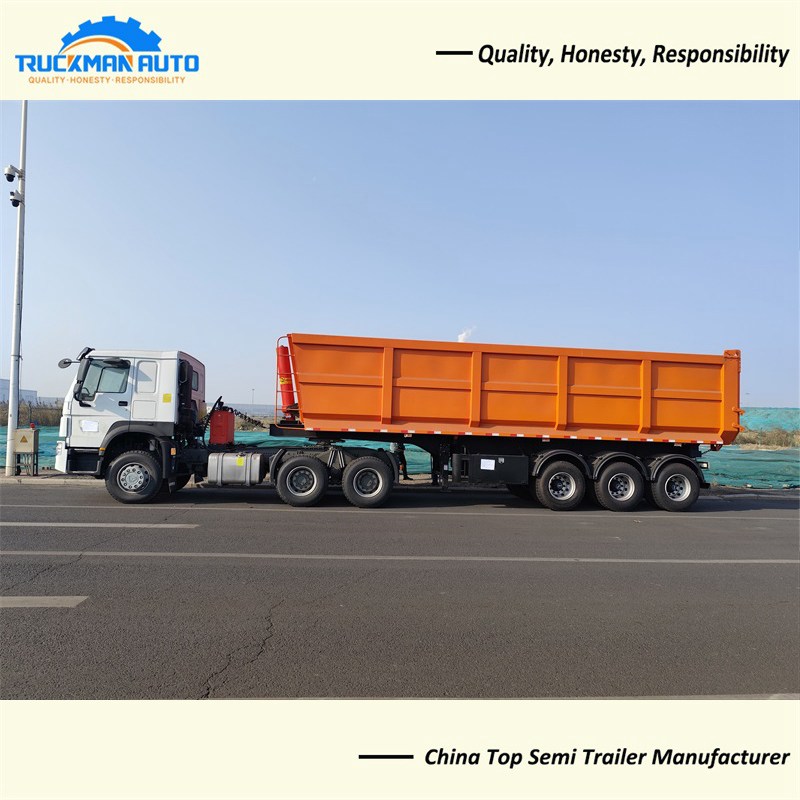

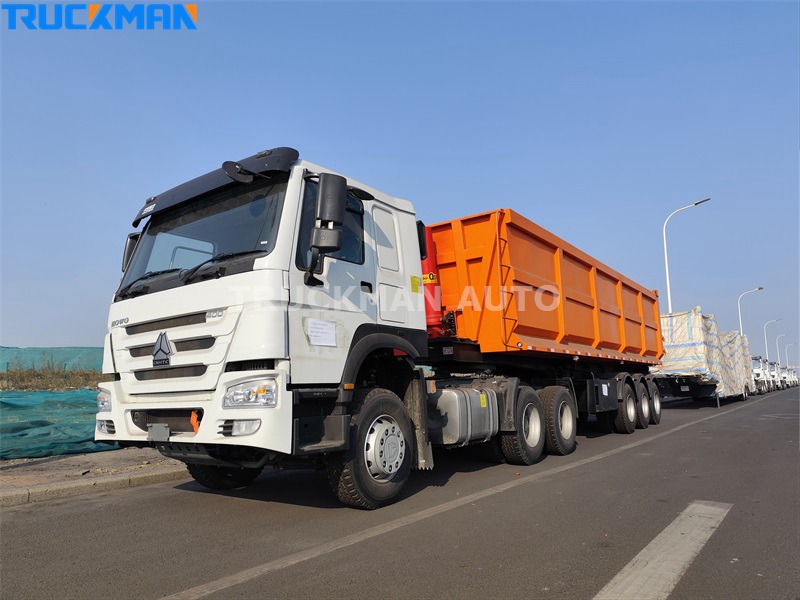

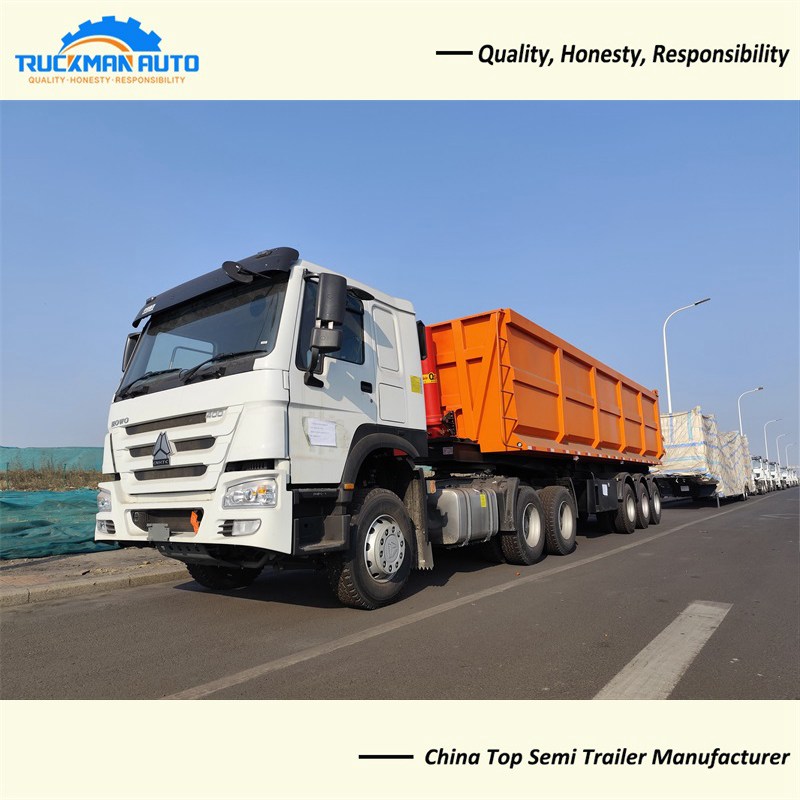

Thr-axles 50 Tons Tipper Semi Trailer

About Thr-axles 50 Tons Tipper Semi Trailer

Thr-axles 50 tons tipper semi trailer is mainly used for the transportation of goods and various construction materials, lightweight, with good braking performance, can maintain good stability during the driving process, improve safety performance. The main parts are processed by advanced equipment, reliable quality.

Thr-axles 50 Tons Tipper Semi Trailer Specification

Product Name: Thr-axles 50 Tons Tipper Semi Trailer

Application: Transportation of construction materials

Axle: 3x13000kg, 3 axle, FUWA brand

Tire: 12R22.5, 12 pcs, TRIANGLE brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Loading Capacity: 50 Tons

Dimension: 9000x2055x3200mm

Thr-axles 50 tons tipper semi trailer specification only for your reference, we can manufacture other model tipper semi trailer basic your request.

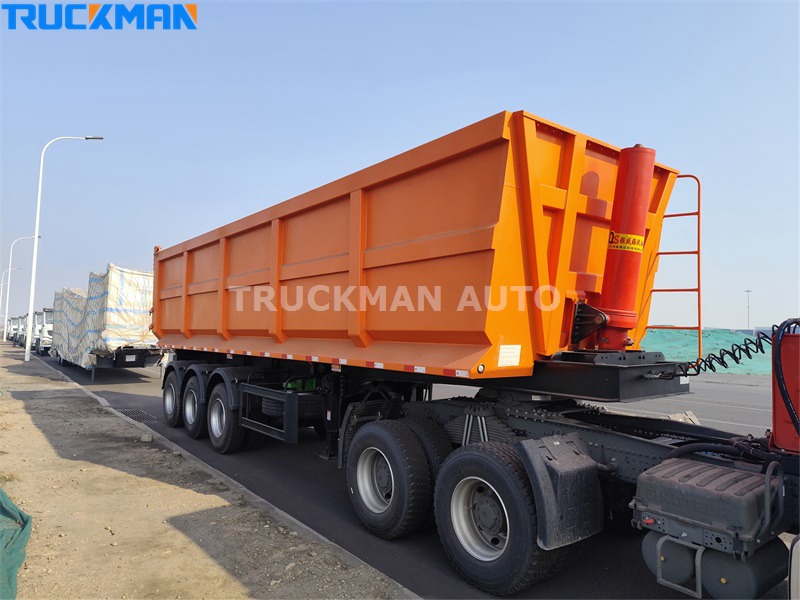

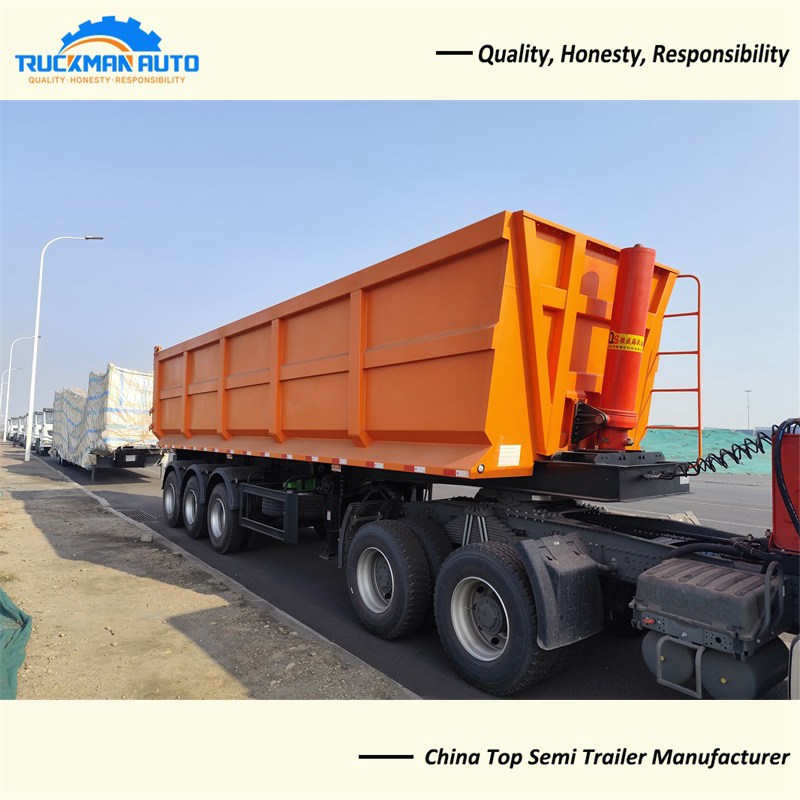

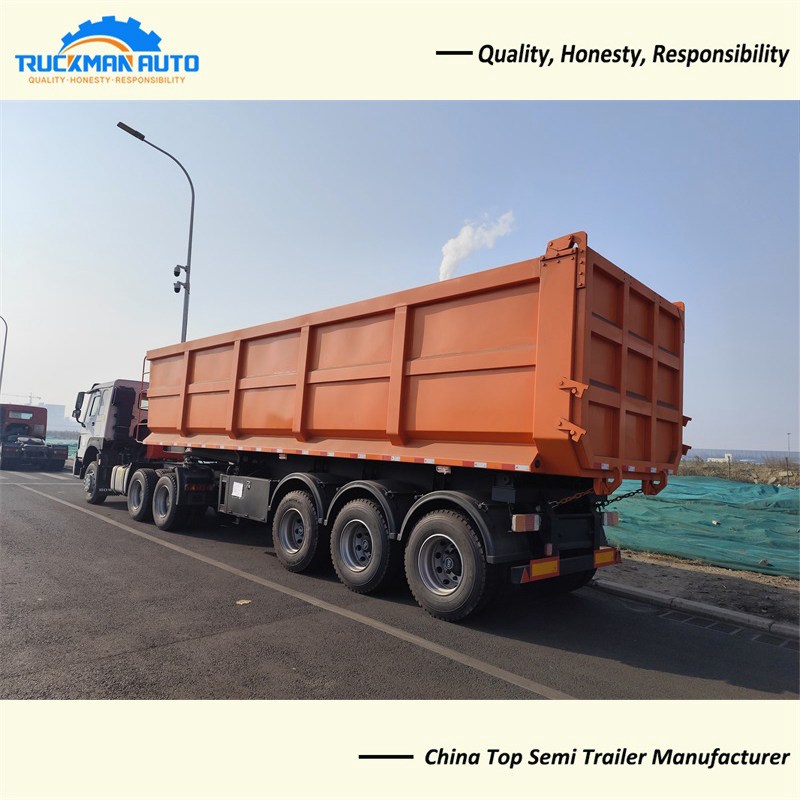

Thr-axles 50 Tons Tipper Semi Trailer Cargo Box

The cargo box of Thr-axles 50 tons tipper semi trailer is made of Q355 manganese plate material, which has high yield strength and tensile strength, and is not easy to deform, which can minimize the occurrence of fracture, and the surface of the steel plate is protected by a coating, which can effectively improve the corrosion-resistant performance and prolong the service life.

Thr-axles 50 Tons Tipper Semi Trailer Tires

Thr-axles 50 tons tipper semi trailer uses TRUANGLE’S 12R22.5 model vacuum tires, which have no inner liner, are highly resistant to punctures and are not prone to punctures, making them suitable for long-distance transport. In addition, the tires are wider in width and have a good gripping ability and are not prone to skidding, which increases the smoothness and safety of the driving process.
