36 Tons 37 Tons 40FT Container Side Lifting Loader Trailer
36 Tons 37 Tons 40FT Container Side Lifting Loader Trailer 36 Tons 37 Tons 40FT Container Side Lifting Loader Trailer 36 Tons 37 Tons 40FT Container Side Lifting Loader Trailer 36 Tons 37 Tons 40FT Container Side Lifting Loader Trailer 36 Tons 37 Tons 40FT Container Side Lifting Loader Trailer

36 Tons 37 Tons 40FT Container Side Lifting Loader Trailer

Product ID : TKM367CSLT
Product Attributes :

The container self lifting trailer is popular for the no lifting capacity terminal, warehouse. With quickly operating time.

Product Description

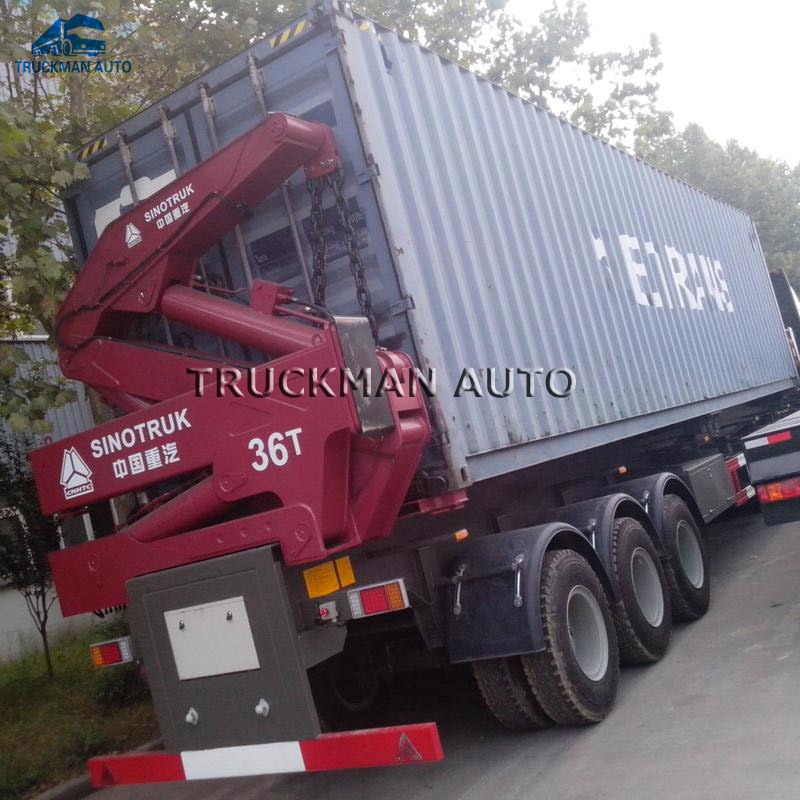

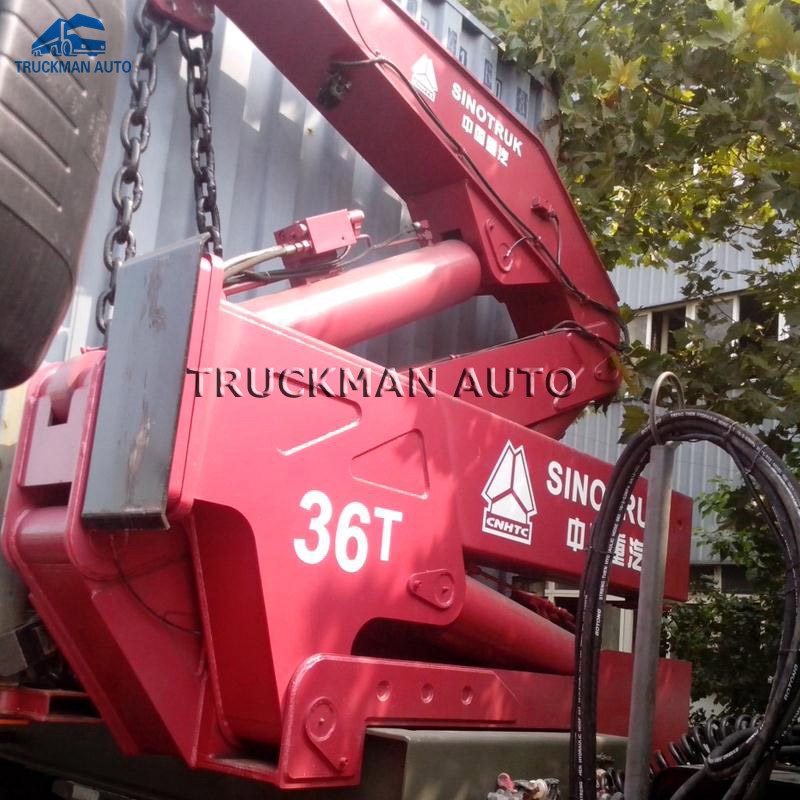

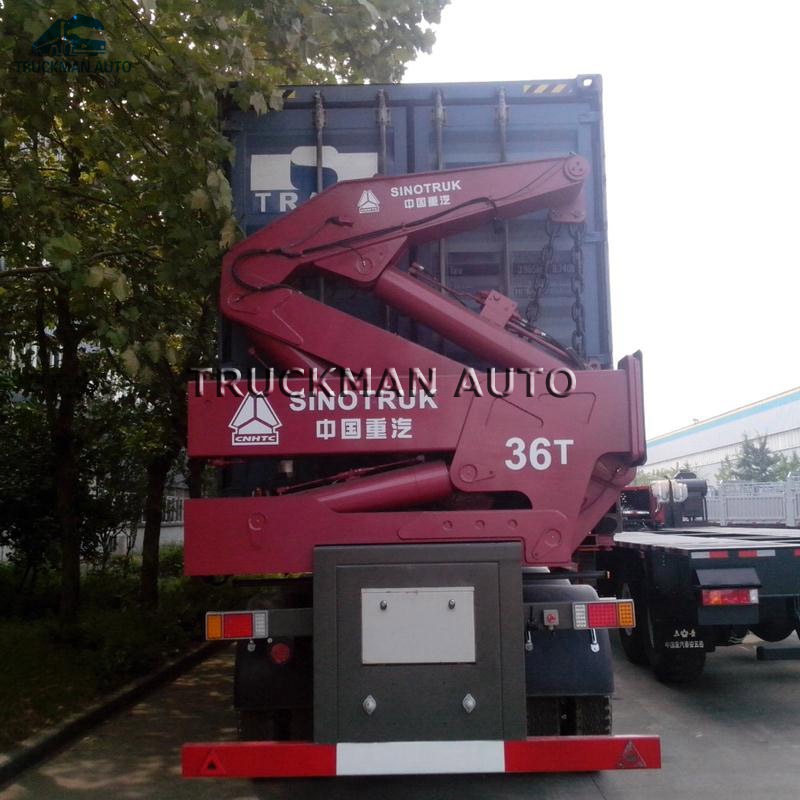

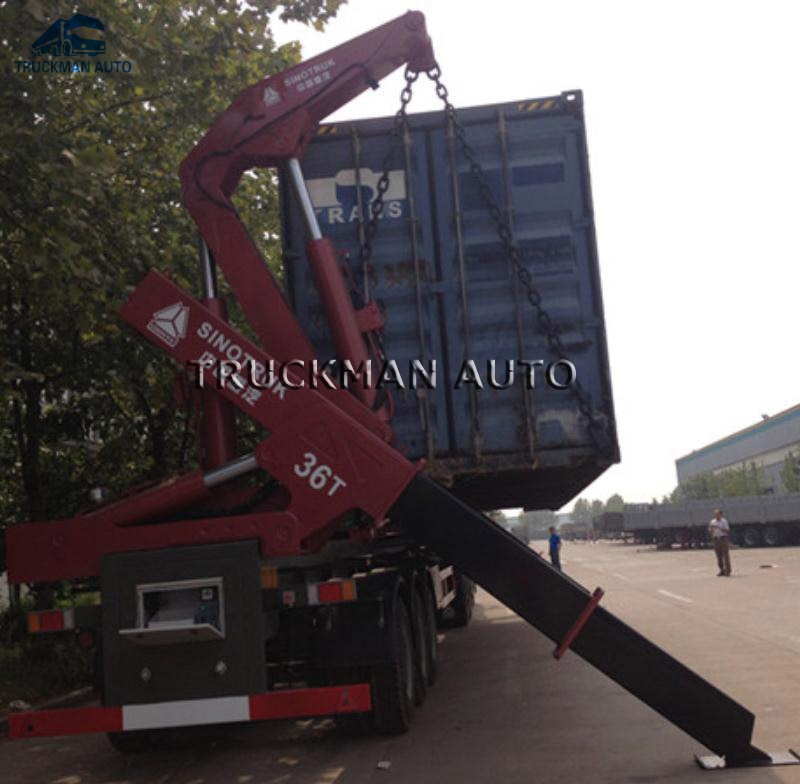

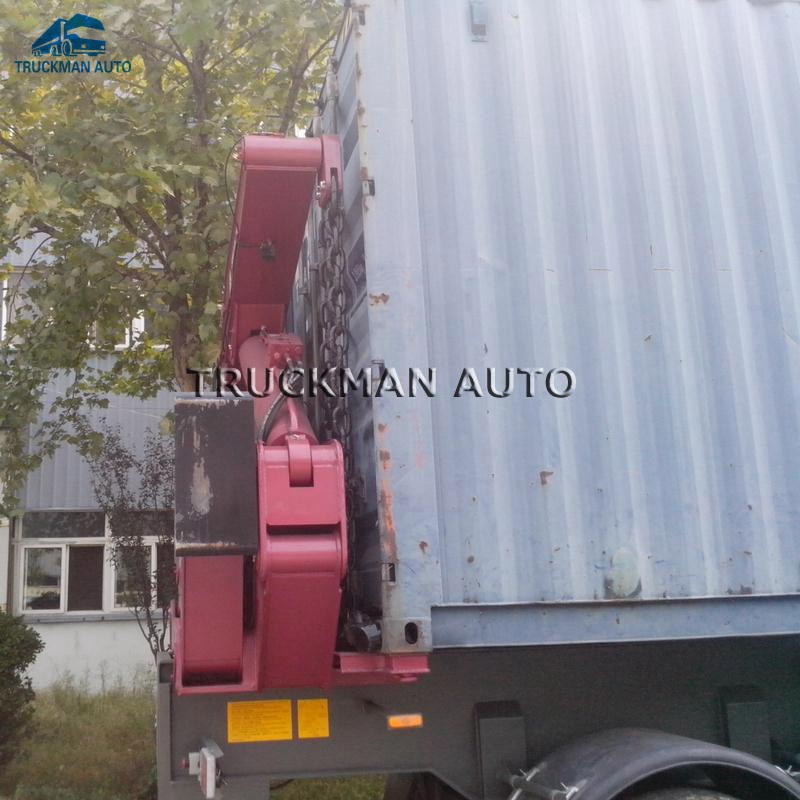

The container self lifting trailer is popular for the no lifting capacity terminal, warehouse. With quickly

operating time. TRUCKMAN brand container self llifting trailer is work with XCMG, the chassis is design

by TRUCKMAN and crane adopt the XCMG brand MQH37A model, with the low purchase cost and durable

quality. It's export to many countries, such as Djibouti, Fiji, Tanzania, Ghana etc. According to our customers

feedback, now we also design the trucks with self lifting crane, contact us get more details.

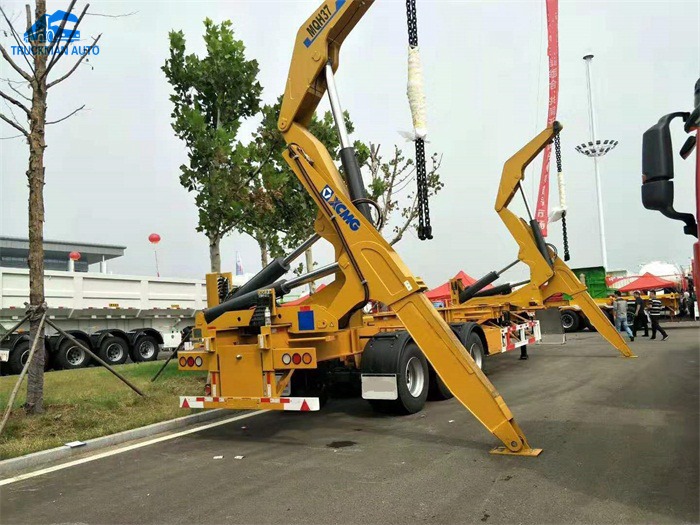

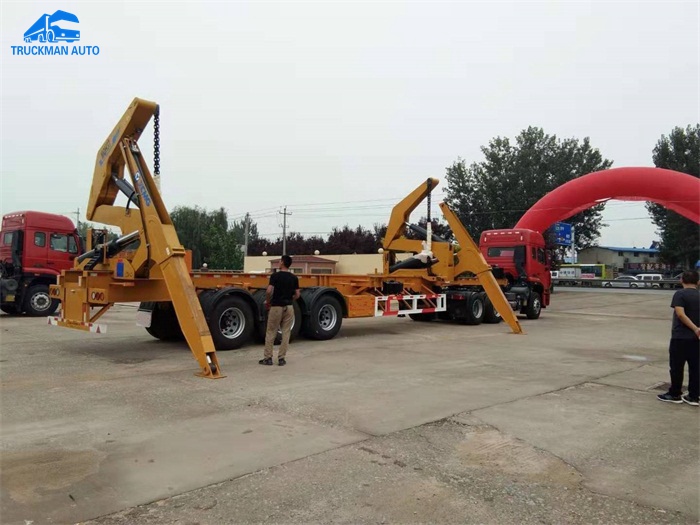

XCMG MQH37A Crane Specification.

Max. lifting capacity: 37000kg

Max. stabiliser outreach: 3200mm

Max. working range: 4000mm

Overal height: 2490mm

Overal width: 2500mm

Overal length: 1020mm

Max. pressure of hydraulic system: 28Mpa

Tare weight: 7000kg

Main Specification For The Container Side Loader Trailer

Dimension:12.5m×2.5m×4m (Outside)

Crane Lifting Capacity: 37 tons

Frame: Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material

Upper and lower plate is 18mm, middle is 8mm. height is 500 mm

Axle: 3 axles, BPW/FUWA/HJ brand

Landing Gear: JOST E100. 28T

King Pin: JOST 3.5 inch bolt-in king pin

Suspension: Mechanical suspension/Germany or America type/air suspension

Leaf Spring: 120mm(W)*16mm(T)*10 Layer

Braking System: WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.

Tire: 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional

Accessories: One standard tool box

Voltage: 24V
