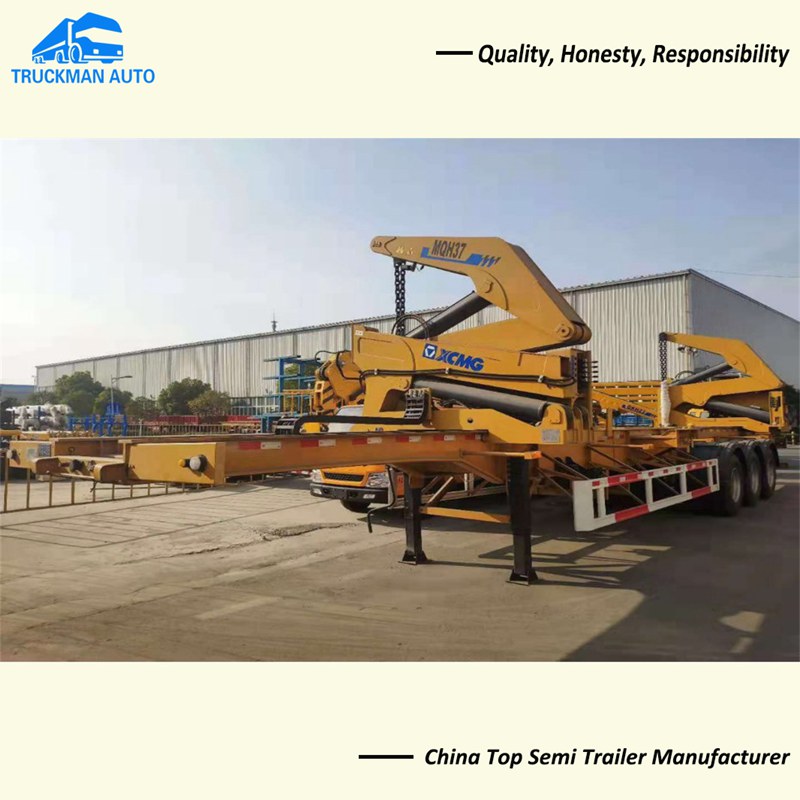

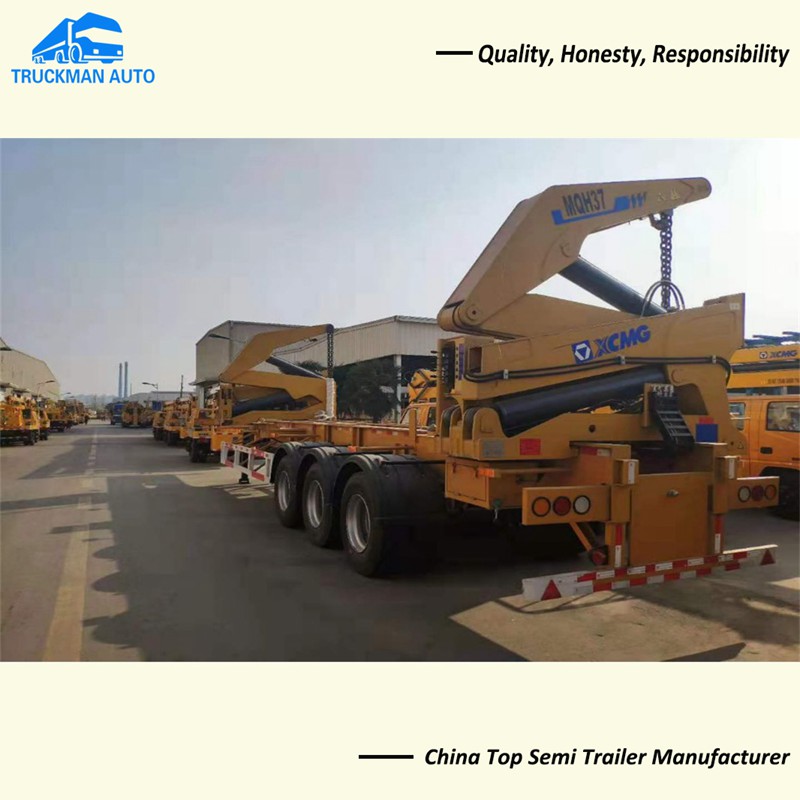

37 tons container side loader trailer including the crane and chassis, mainly design for transport 20FT and 40FT container.
Container side loader trailer are suitable for some island countries, or ports, warehouses, stations, etc. that lack lifting facilities. This 37 tons container side loader trailer is easy to operate, fast in hoisting speed, and convenient in maintenance. It is deeply loved by customers. The 37 tons container side load trailer is mainly transported 20FT and 40FT container.
37 Tons Container Side Loader Trailer Main Specification.
Product Name: 37 Tons Container Side Loader Trailer
Loading Capacity: 40,000kg
Tare Weight: 13,500kg
Axle: 3 axle, 3x13,000kg
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 12R22.5, 12 pcs tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: upper plate 16mm, middle 10mm, lower plate 18mm, “I” type main beam.
Crane: MQH37A, 37 tons loading capacity.
Dimension: 14500x2500x4000mm.
The 37 tons container side loader trailer could design according to your request.
37 Tons Container Side Loader Trailer Working Video.
The 37 tons container side loader trailer could operating by one personal, easier operating, and no need other equipment help.
