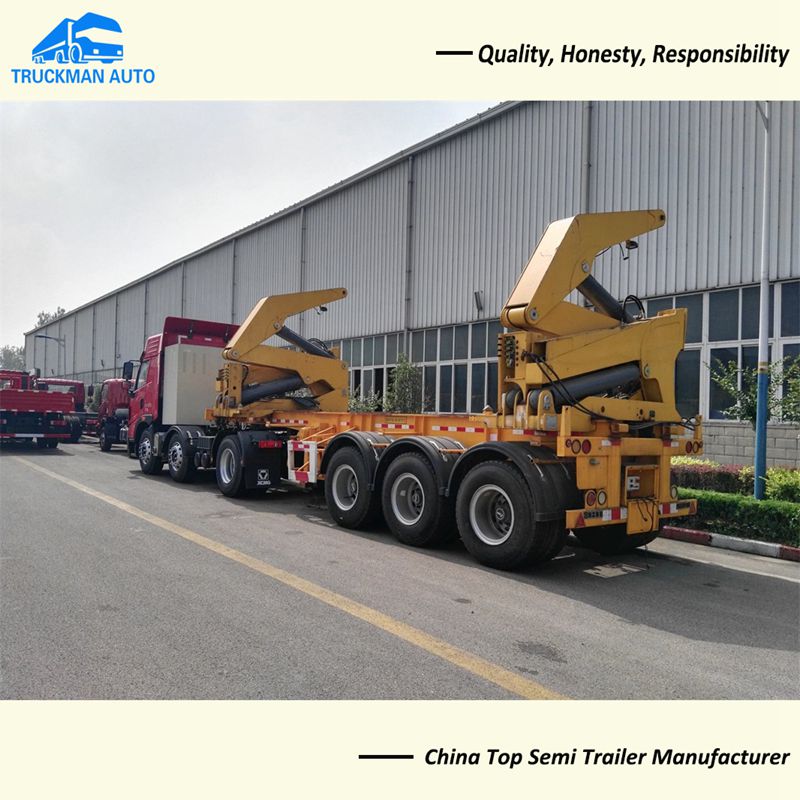

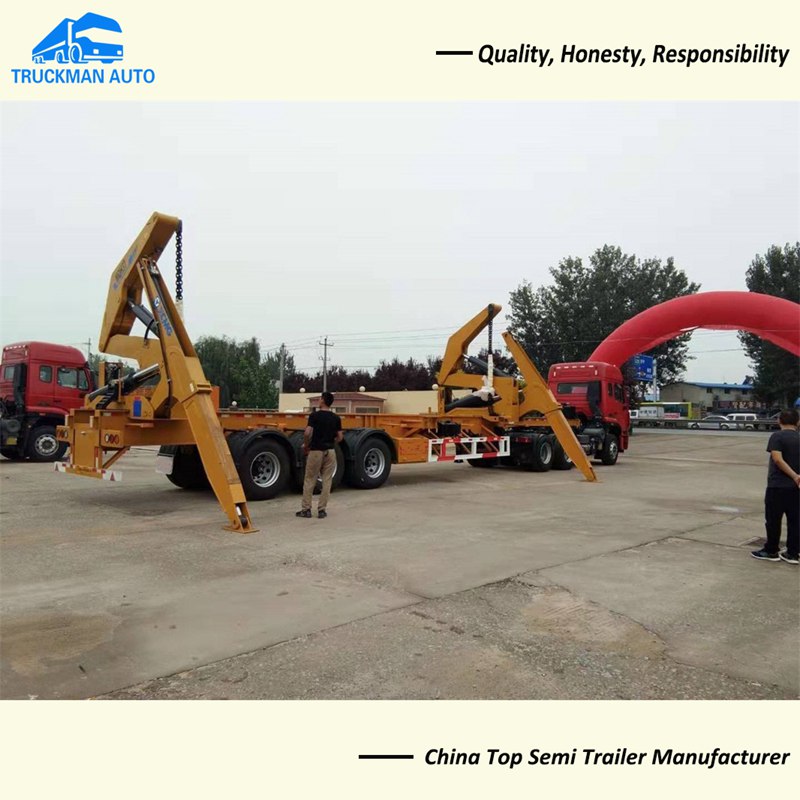

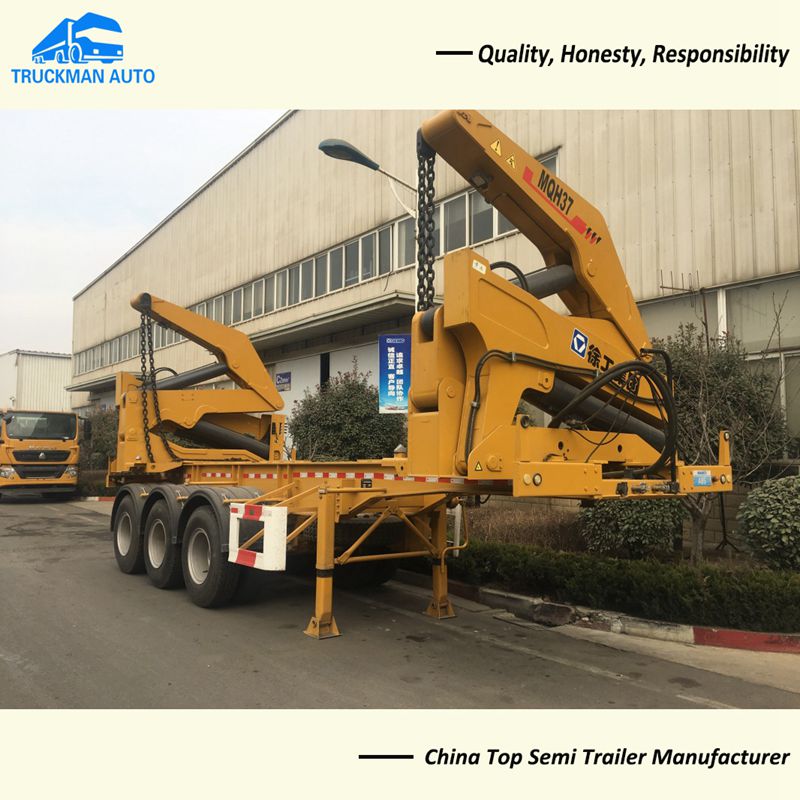

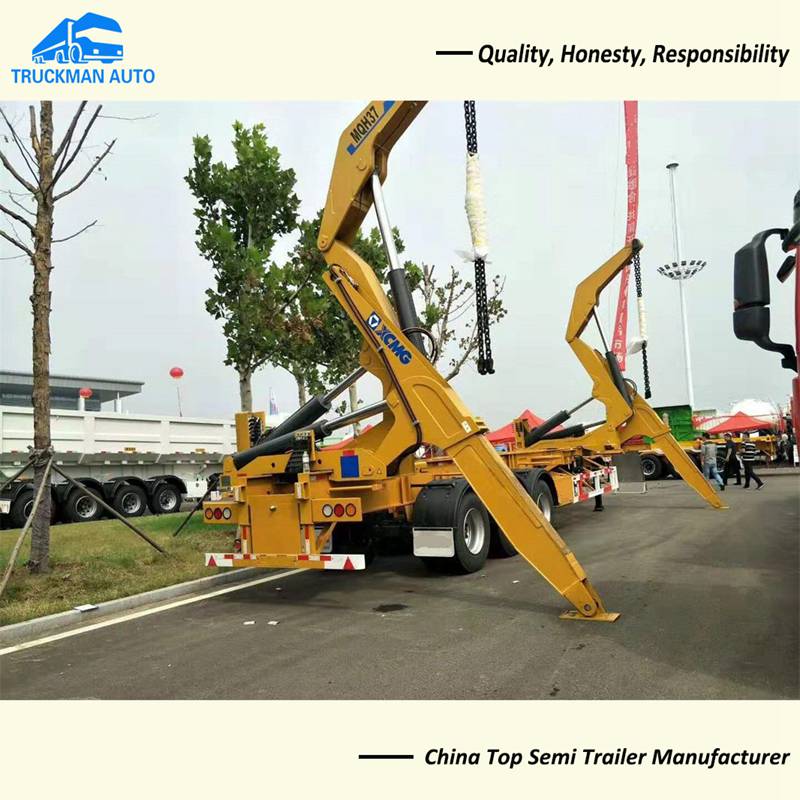

Side Loader Container Trailer equipped with Power take off (PTO) or Diesel APU,While typically the cranes are powered by a trailer mounted diesel engine, the cranes are sometimes powered via a PTO from the truck header tractor.Container Side Loader Trailer adopts wireless remote control technology, loading container just takes 10 mins.
| Items | Parameters |
| Max. lifter capacity(kg) | 37000 |
| Max. working range(mm) | 4000 |
| Max. stabilizen outreach(mm) | 3200 |
| Curb mass(kg) | 14500 |
| Mass of side lifter(kg) | 7250 |
| Maximum grass mass(kg) | 40000 |

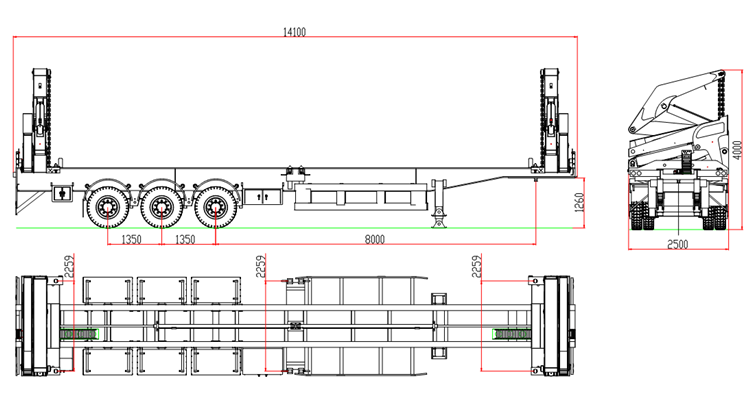

| Outline dimension of semi-trailer (L*W*T) (mm) | 14100*2500*4000 |
| Outline dimension of side lifter (L*W*T) (mm) | 1020*2500*2490 |
| Wheel base (mm) | 8000+1350+1350 |
| Track (front axle/rear axle) (mm) | 1820/1820/1820 |
| Front overhang/Rear overhang (mm) | -/2370 |
| Approach angel/Departure angel (°) | -/13 |
| Type | 12R22.5 Tubless,12 Units |
| Axle | 3*13T FUWA axles |
| Voltage | 12v |
| Model | TMA350TO145SLT |
| Power/rotation speed (KW/r/min) | 36.5/2600 |
| Emission standard | off-road,Euro |
| Color | Red/Yellow/Green/White/Black or customer choose |
| Application | 20FT/40FT container |
