1. The utility model has compact structure, high reliability, automatic operation, fast transportation speed and high working efficiency; 2. The vehicle body and the container stacking position are parallel during operation, and the occupied passage is only 1/3 of that of the reach crane. The site utilization rate of medium and small port terminals, container transfer stations, and railway freight stations is particularly high.

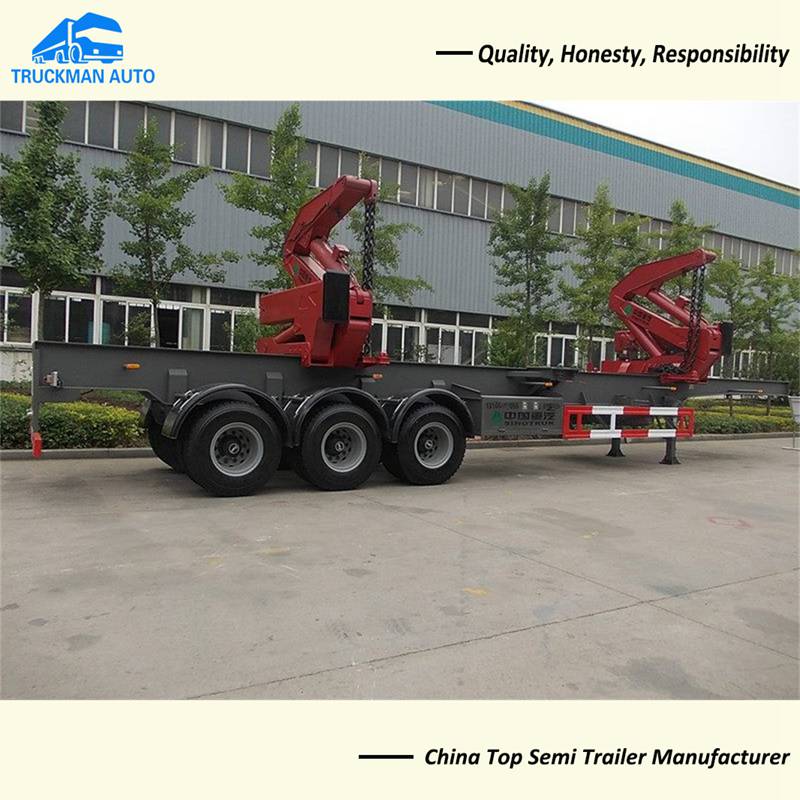

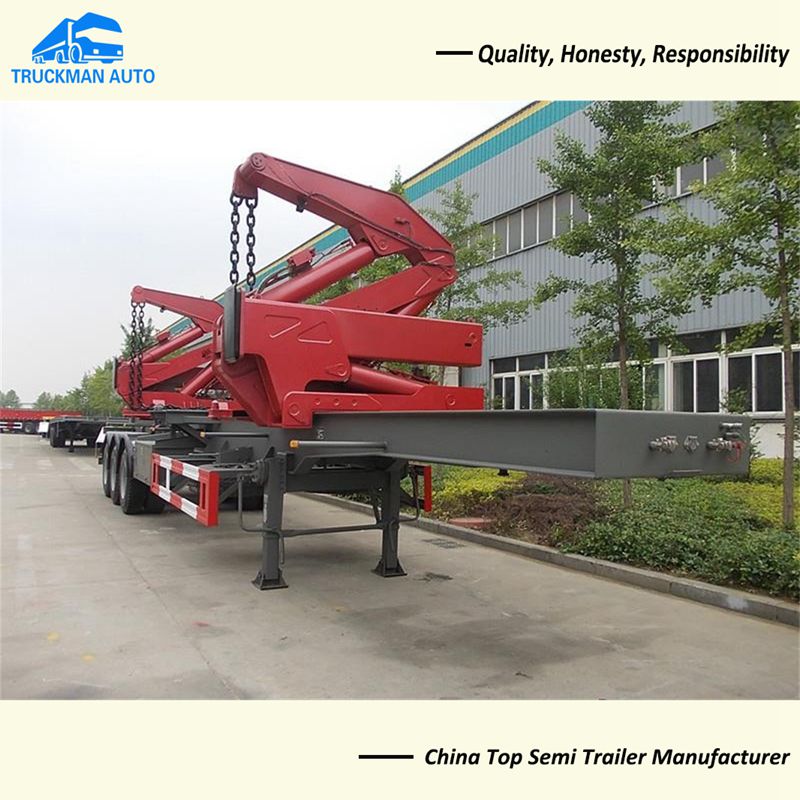

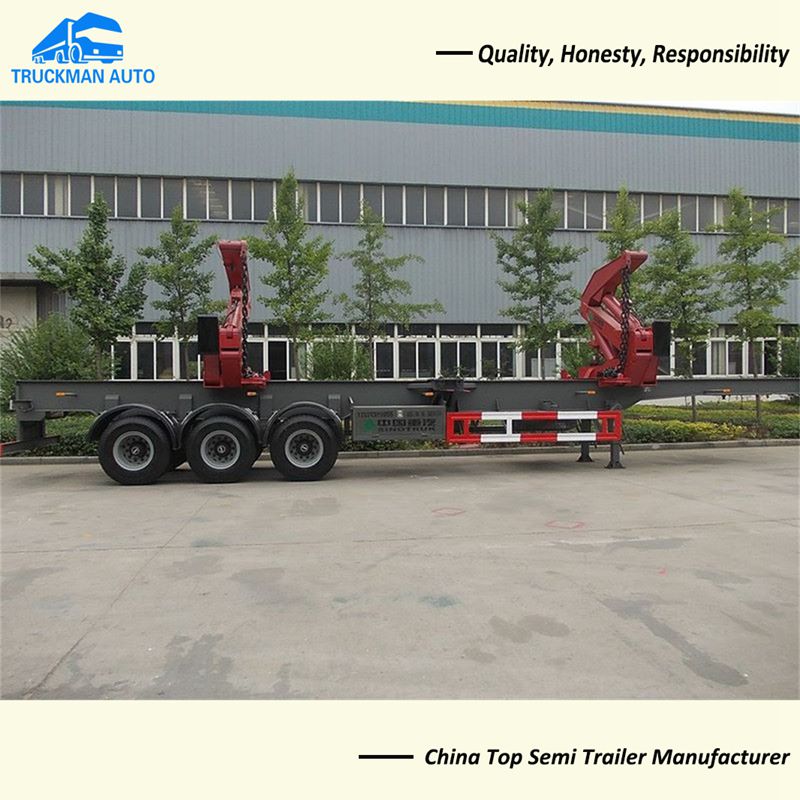

40 Feet Container Side Loader Trailer
Model MQH37A(XCMG brand crane)
Maximum lifting weight 37000kg
Maximum span of outrigger 3200mm
Working range 4000mm
Maximum outer height 2490mm
Maximum outline width 2500mm
Maximum outer thickness 1020mm
Maximum pressure of hydraulic system 28MPa
Self weight 7000kgs
TRUCKMAN 40 Feet Container Side Loader Trailer Applications
The side lifting container semi-trailer is used for lifting and carrying two 20ft containers or one 40ft containers in port,station,and freight yard,the trailers hydraulic system power is from PTO in tractor truck,it can be operated both wireless remote control and manual operation.
