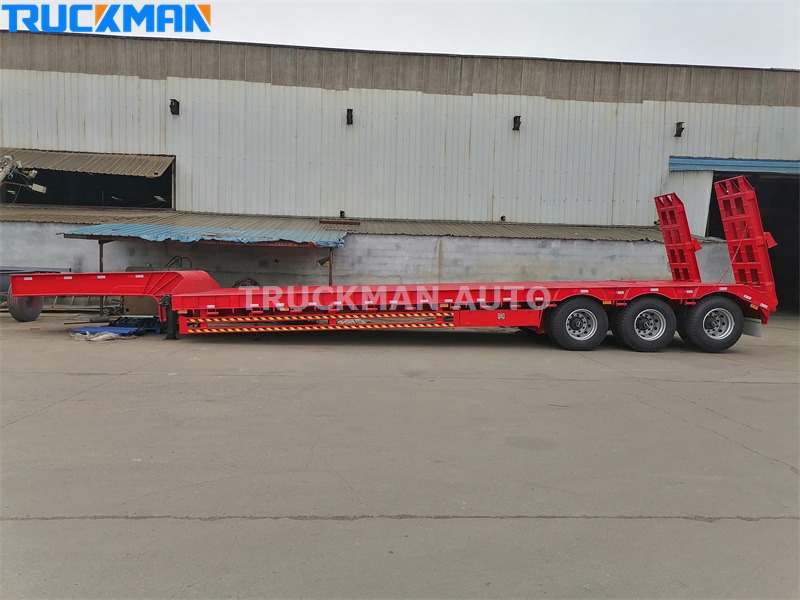

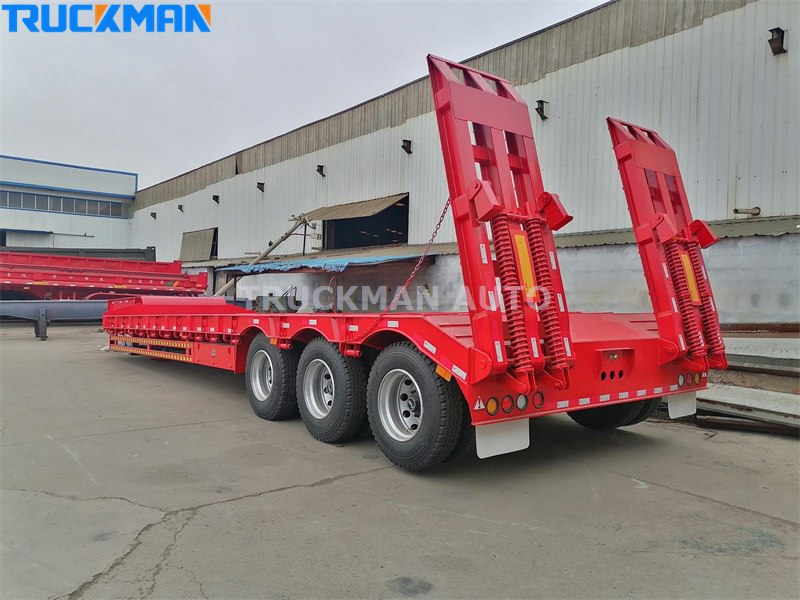

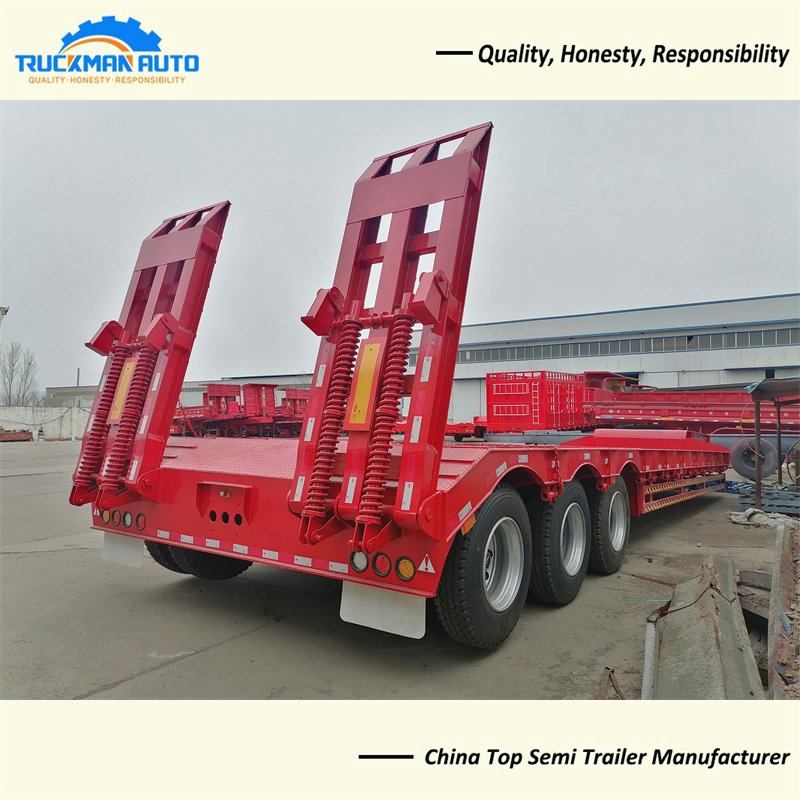

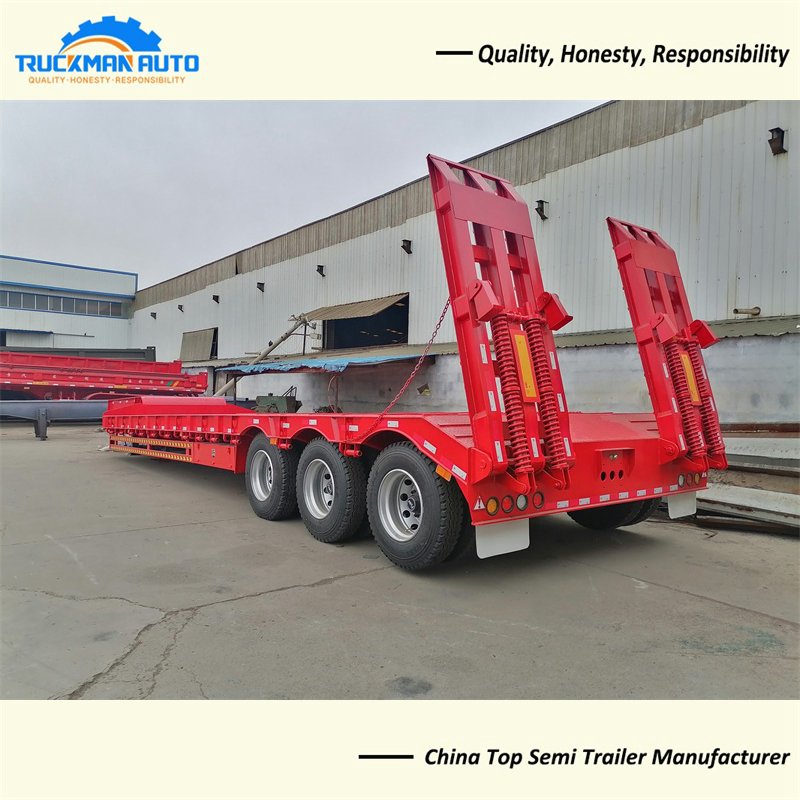

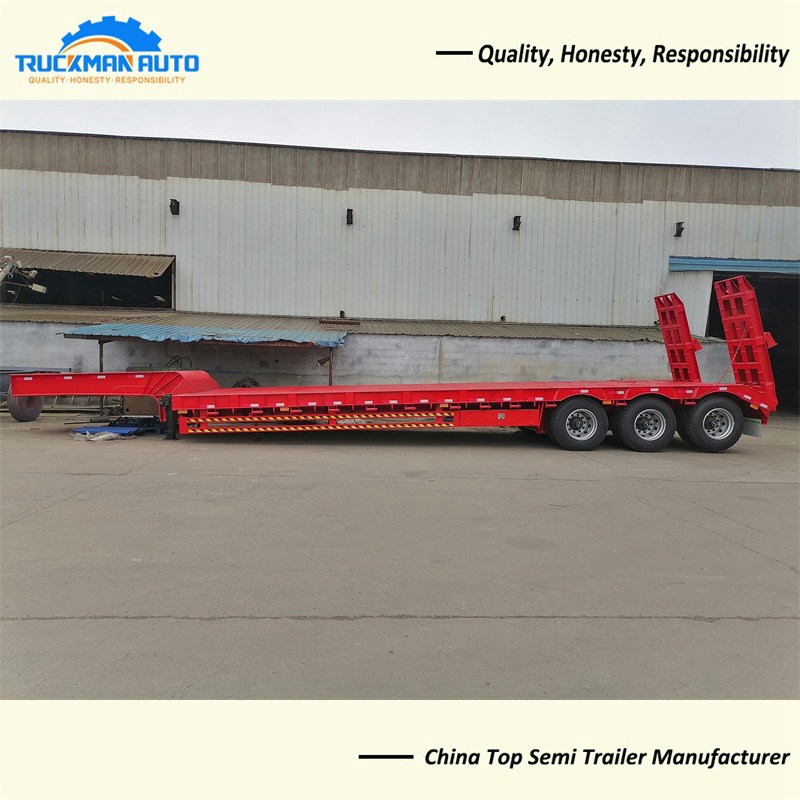

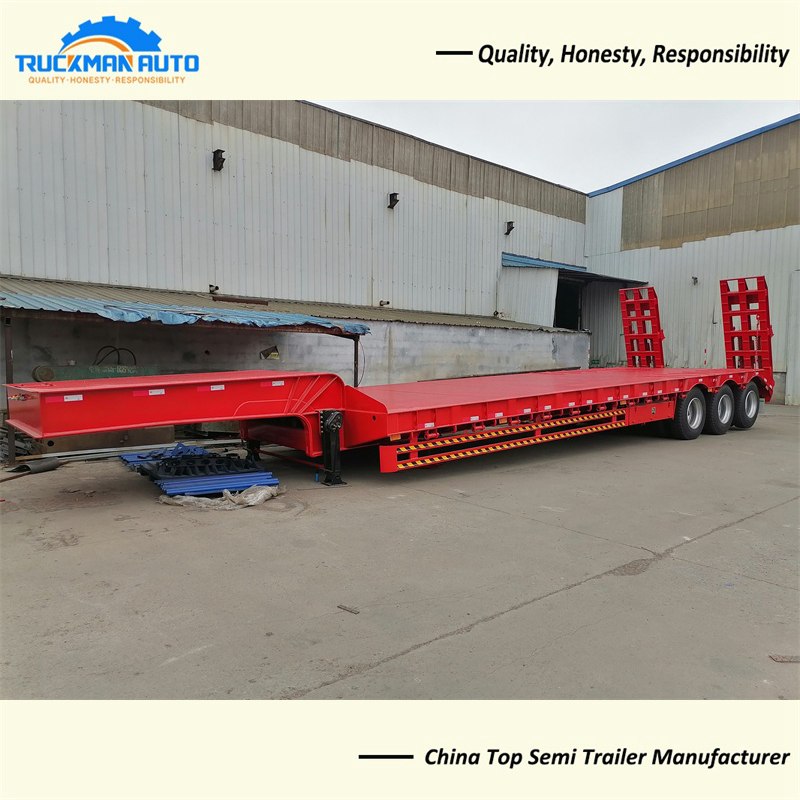

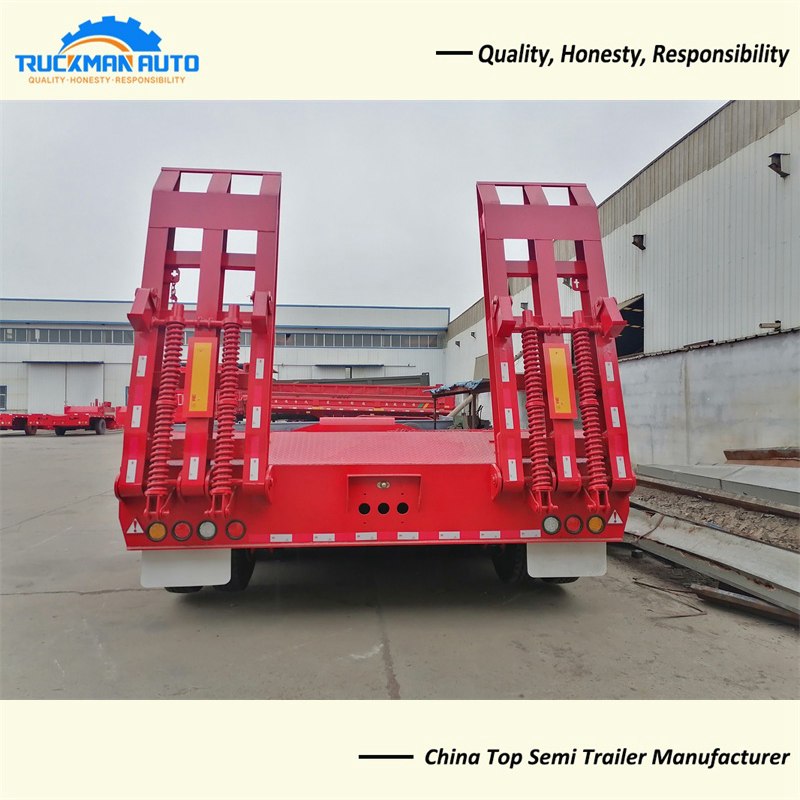

Lowbed semi trailer mainly used for construction machinery haulage, it is can transport max 70 tons cargoes.
Lowbed Semi Trailer Features
-. Large diameter tires, off-road, more wear-resistant.
-. Reinforced suspension and leaf spring, good shock absorption.
-. High-strength steel plate main beam, strong load-bearing capacity.
-. 3.5 inch king pin, wear-resistant and anti-twist, suitable for bad road conditions.
Lowbed Semi Trailer Specification
Product Name: Lowbed semi trailer
Axle: 3 axle, 3x16 tons, FUWA brand
Tire: 315/80R22.5, 12 pcs, TRIANGLE brand
Material: High strength steel and manganese steel
Kingpin: 3.5 inch, JOST brand
Brake System: WABCO brand
Platform: 9700x3000x1230mm
Support Leg: 28 tons, FUWA brand
Dimension: 13000x3000x2950mm
Loading Capacity: 70,000kg
The lowbed semi trailer specification only for your reference, we can manufacture other model lowbed trailer basic your request.
Lowbed Semi Trailer Material
Lowbed semi trailer material have high strength steel and manganese plate. The main beam, side beam and ladder is the main load-bearing part of the lowbed trailer, so high strength steel is good choose. The high strength yield strength reach to 700Mpa, loading capacity is 5 times than manganese plate. Other parts like loading platform adopt the manganese plate, thickness is 5mm, which is more stronger than 3mm loading platform, can be used for a long time.
