Full-trailer flatbed trailers, also known as "full trailers, flatbed trucks", generally use inflatable solid tires, with low board height and large loading capacity.
There is no risk of tyre breaking or puncture. Safe, simple and durable. He has no power and needs a tractor or forklift to tow. Usually one or more flatbed semi-trailers and a forklift or tractor form a line of vehicles to carry out the plane transportation of goods or the handling of large equipment. It is widely used in airports, ports, railway stations, factories and large warehouses. Greatly improve the efficiency of goods transfer and translation. Reduce the cost of forklifts and manpower consumption.

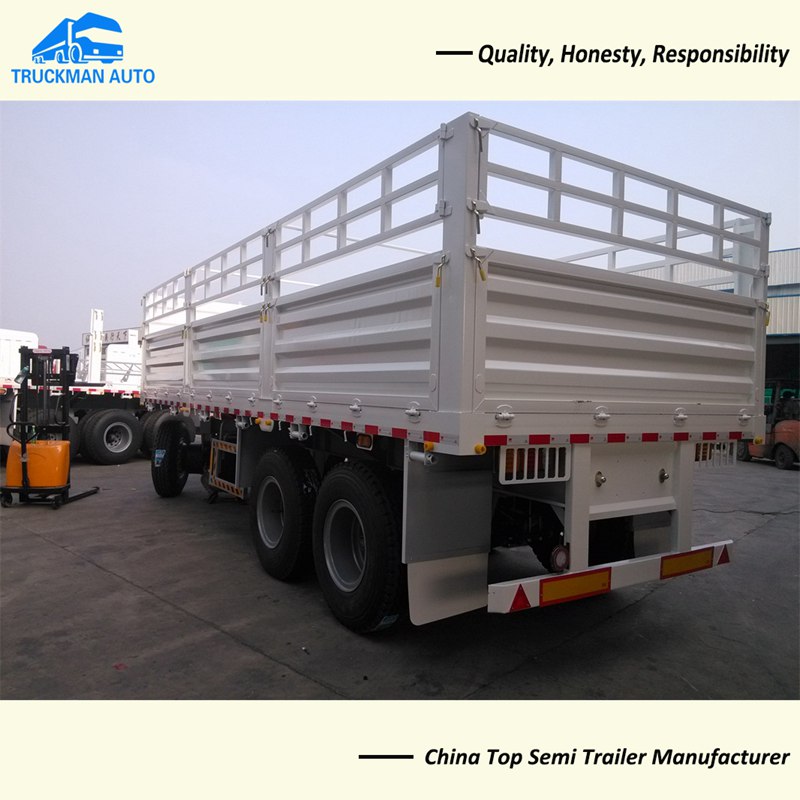

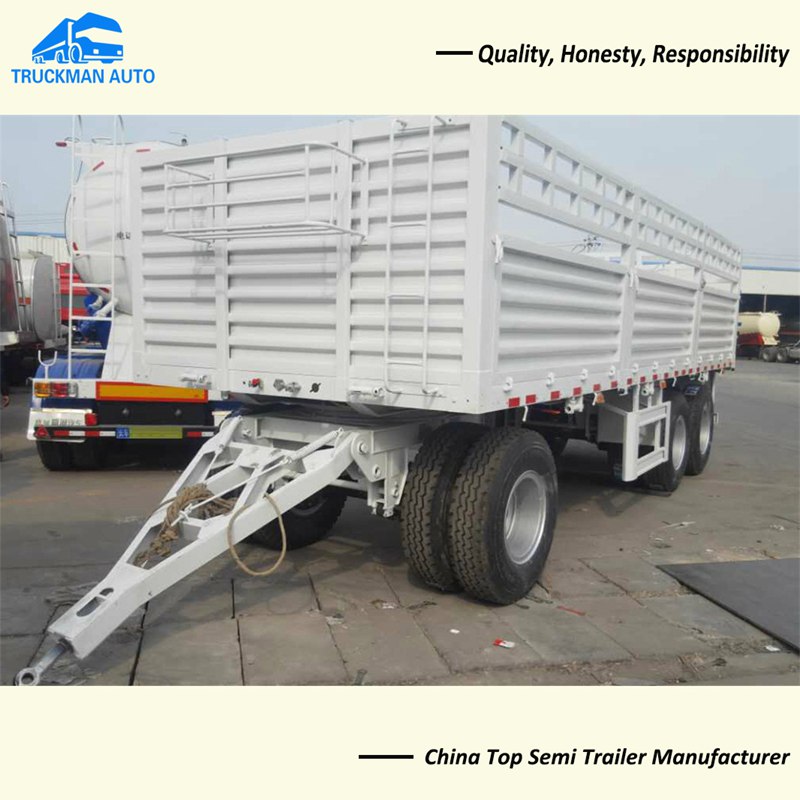

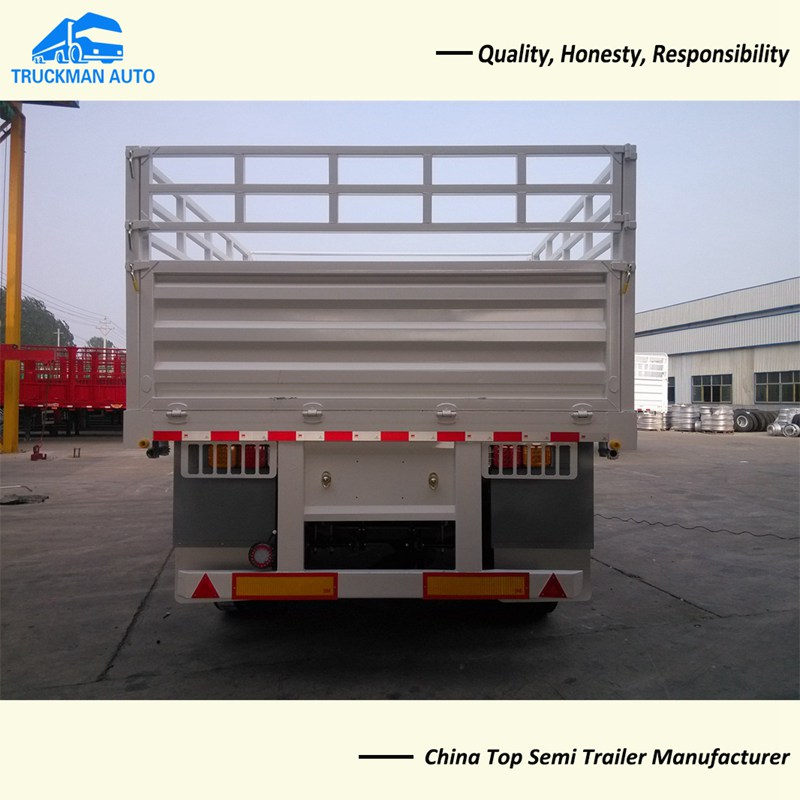

3 Axles Side Wall 20 Feet container Full Trailer Specifications:

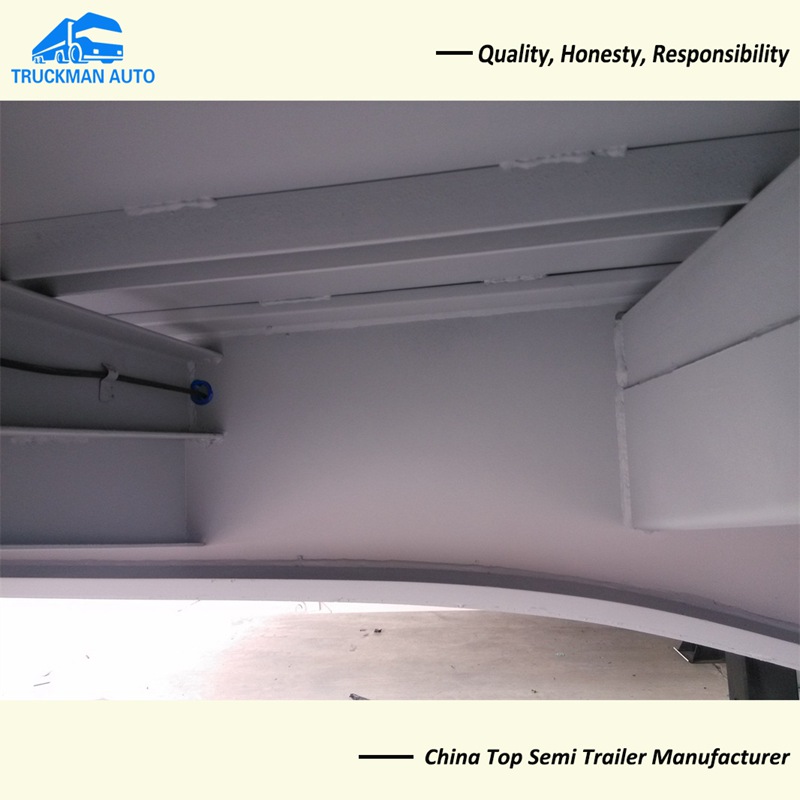

Frame: Upper plate: 16mm, lower plate: 16mm,
middle: 10mm. Side main beam: 6mm, cross
beam: 6mm, reinforced triangle beam:6mm,
Support beam: 4mm
Dimension(L×W ×H): 8000*2700*2800mm
Cargo box size: 8000*2500*800+600mm
Thickness: Floor 4mm Diamond checked, Side 3mm Horizontal Corrugations
Suspension: Mechanical suspension
Connector: With connecting triangle frame with thickness of 8mm
Axle: 3x13Ton BPW axles.
Tire: 12.00 x R20 x 18PR, Triangle brand TR668 ,13pcs
Cable Holder: 12 sets, thickness 8mm

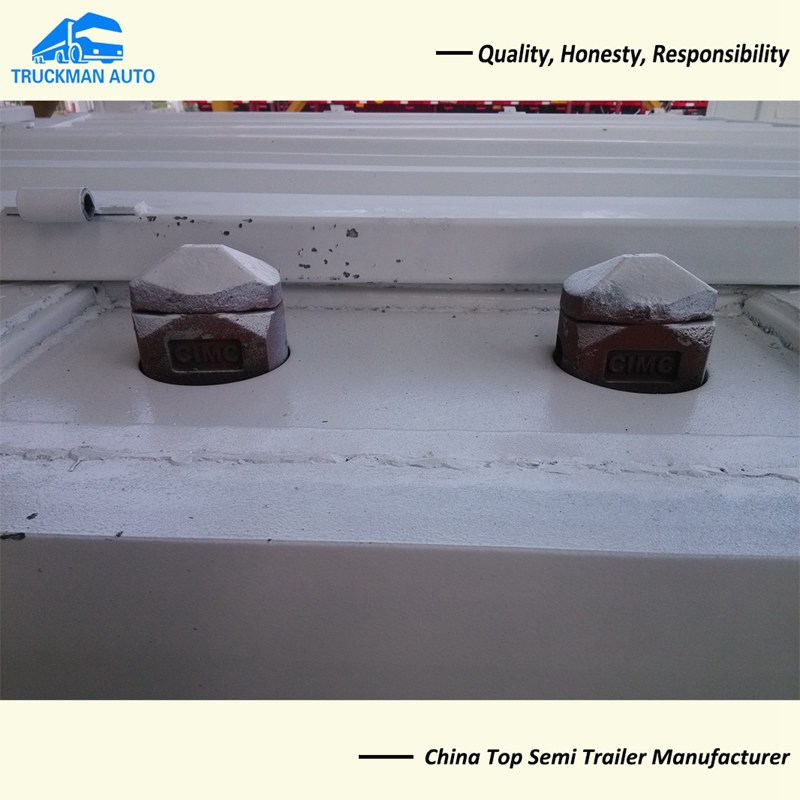

Twist Locks: 4 sets
Capacity: 45T
