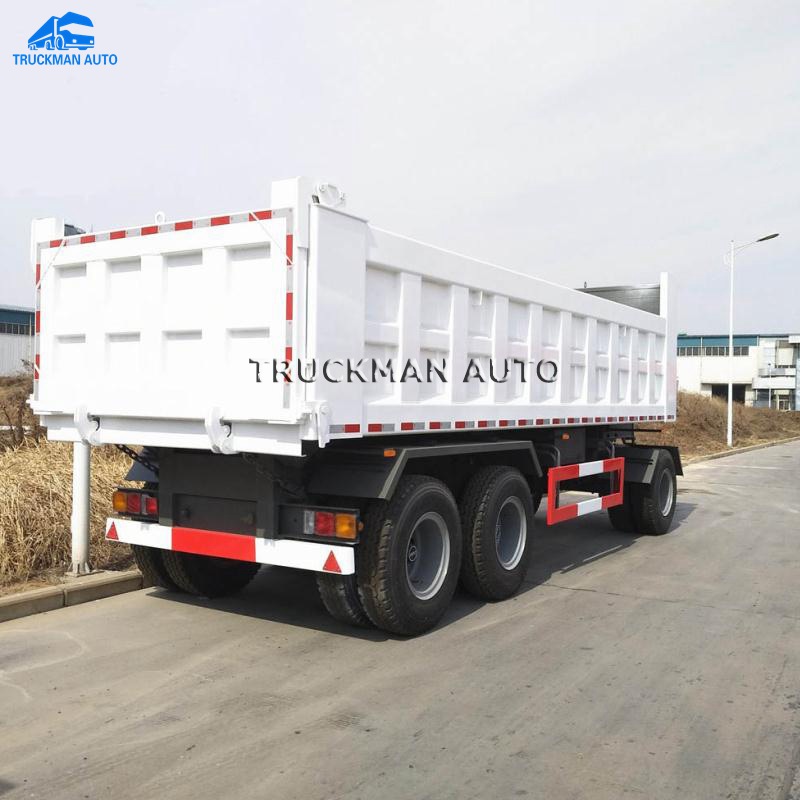

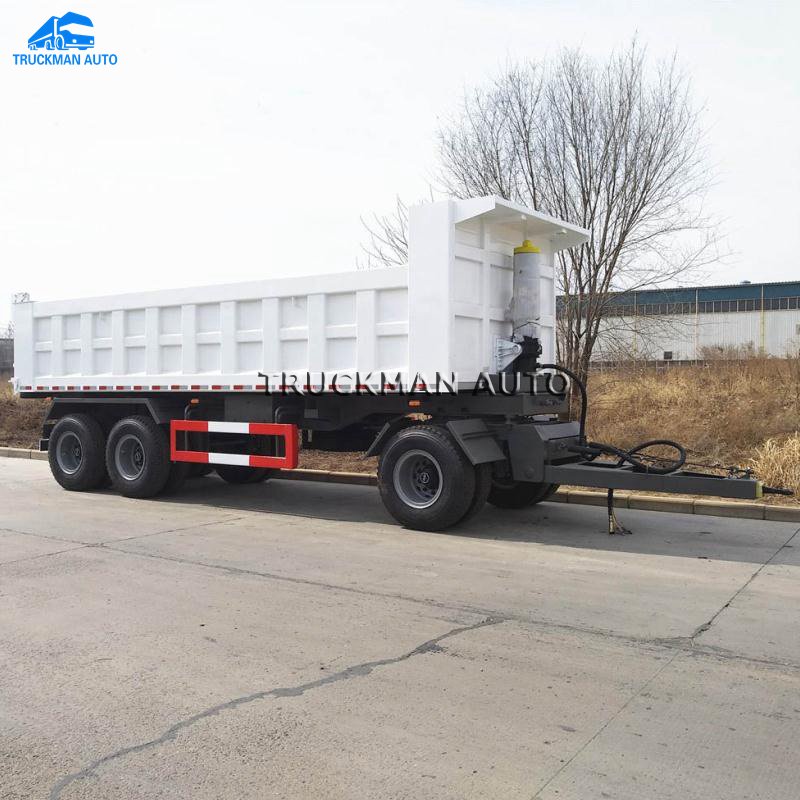

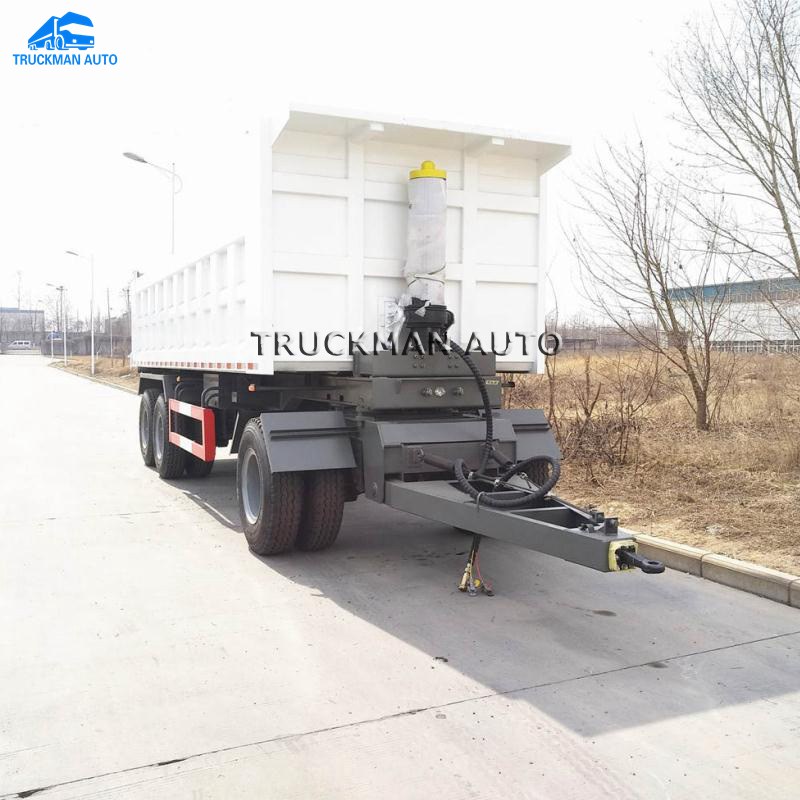

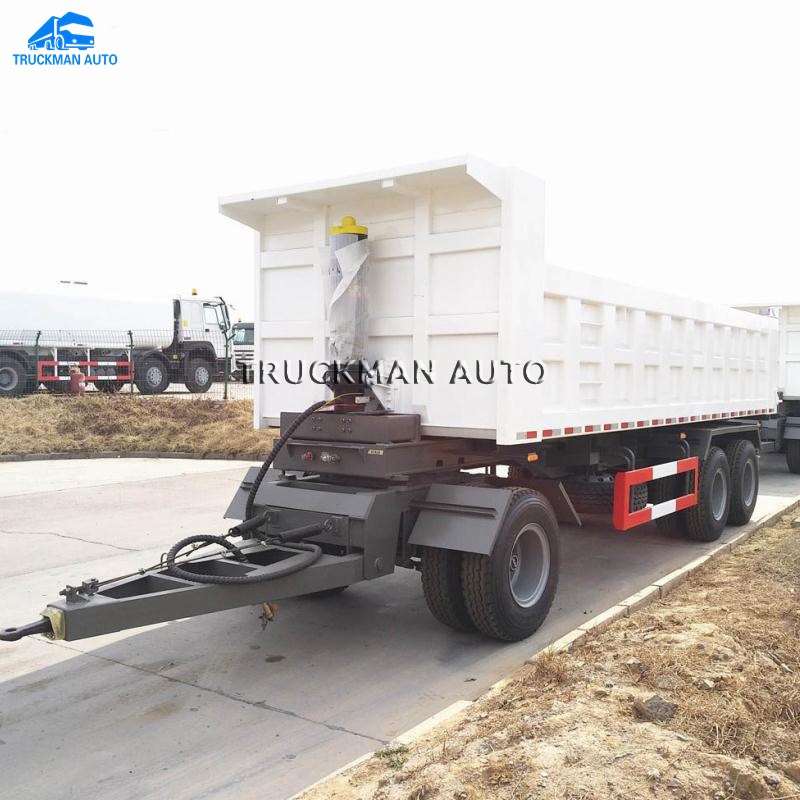

Full dump trailer truck is design for the coal and sand transport, it's very popular in Mongolia.
The dump trailer is used for haulage coal, sand other mine material, it's connect with the dump truck
by the drawbar. And the hydraulic system choose the front lifting type, easily loading and unloading
the material, with the quickly operating time, it's very popular in Mongolia mine work site. TRUCKMAN
brand full dump trailer choose the famous spare parts for the key parts, such as HYVA, WABCO, JOST etc.
Every month we could produce nearly 700 units full dump trailer, and every trailer before shipment will
go though four time checks. We are very confident with our trailer quality, supply 12 months quality warranty.
The full dump trailer is different with the dump trailer, dump trailer connect with tractor trucks, the
full dump trailer connect with dump trucks by drawbar.
The Main Specificaition For The Full Dump Trailer.
Dimension: 7m×2.5m×3m (Outside)
Payload: 30 Tons
Bottom Platform: 5mm thick checkered plate or flat plate
Frame: Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Upper and lower plate is 18mm, middle is 8mm. height is 500 mm
Axle: 3 axles, BPW/FUWA/HJ brand
Landing Gear: JOST E100. 28T
King Pin: JOST 3.5 inch bolt-in king pin
Suspension: Mechanical suspension/
Leaf Spring: 120mm(W)*16mm(T)*10 Layer
Braking System: WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Tire: 11.00R20,12.00R20, Tire optional
Accessories: One standard tool box
Voltage: 24V
