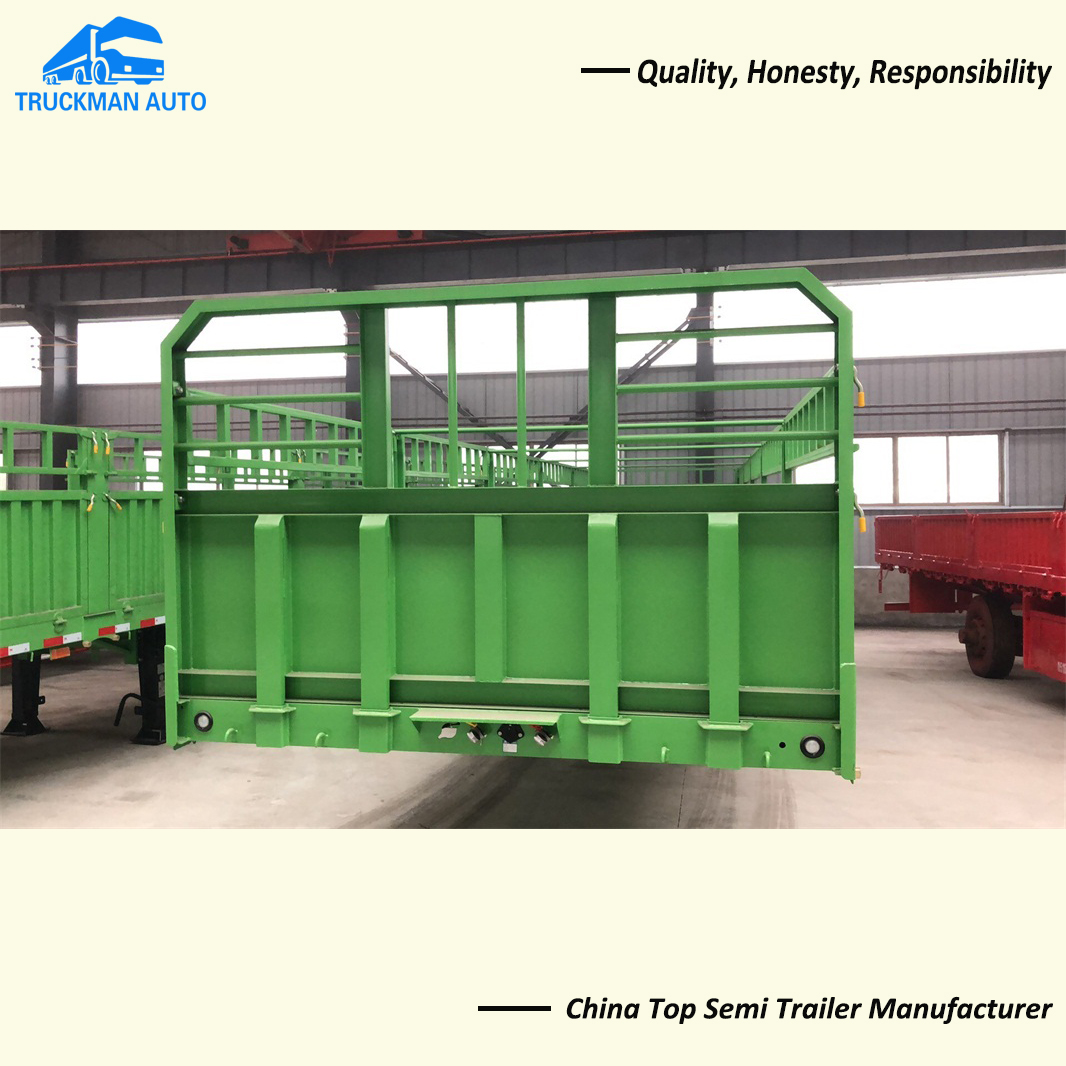

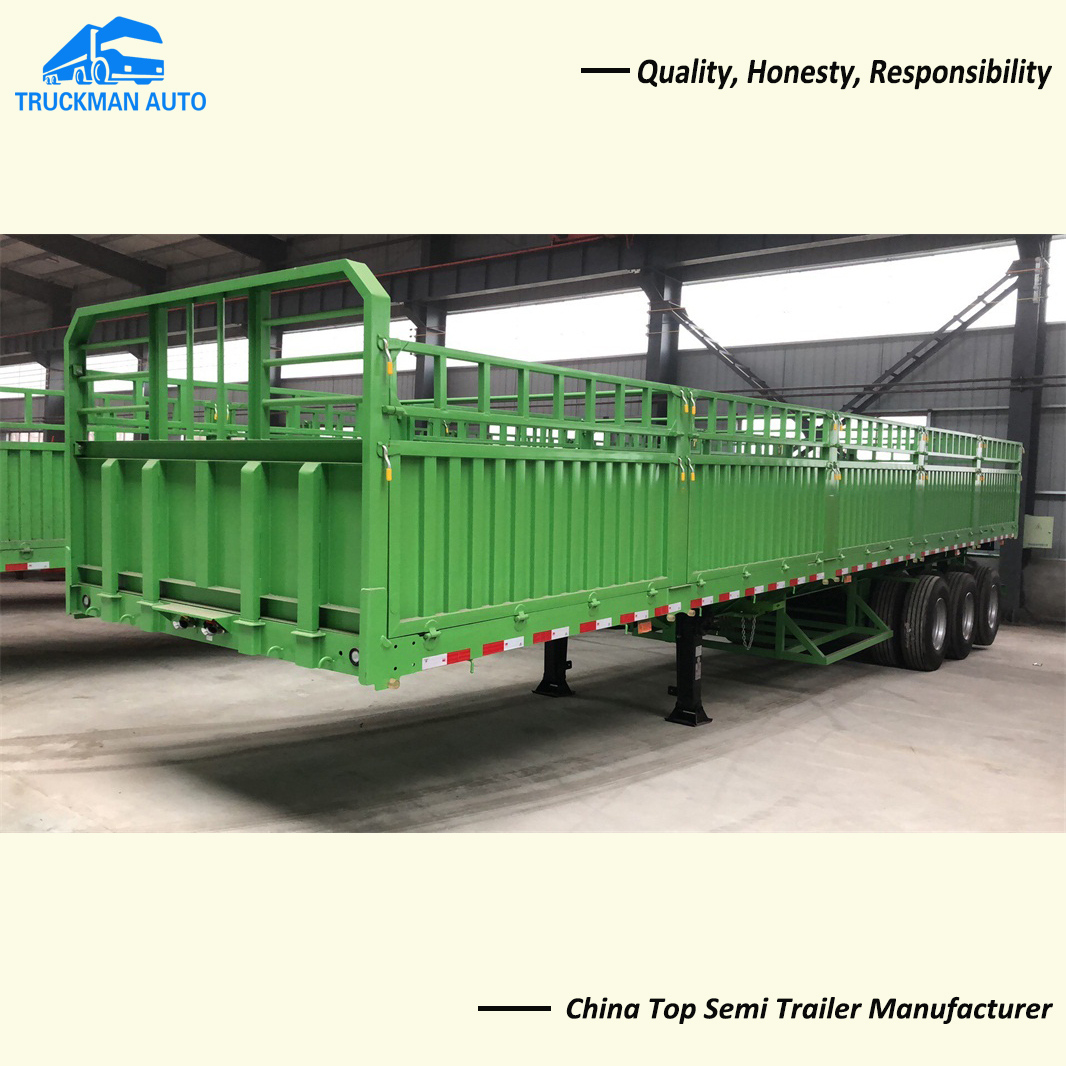

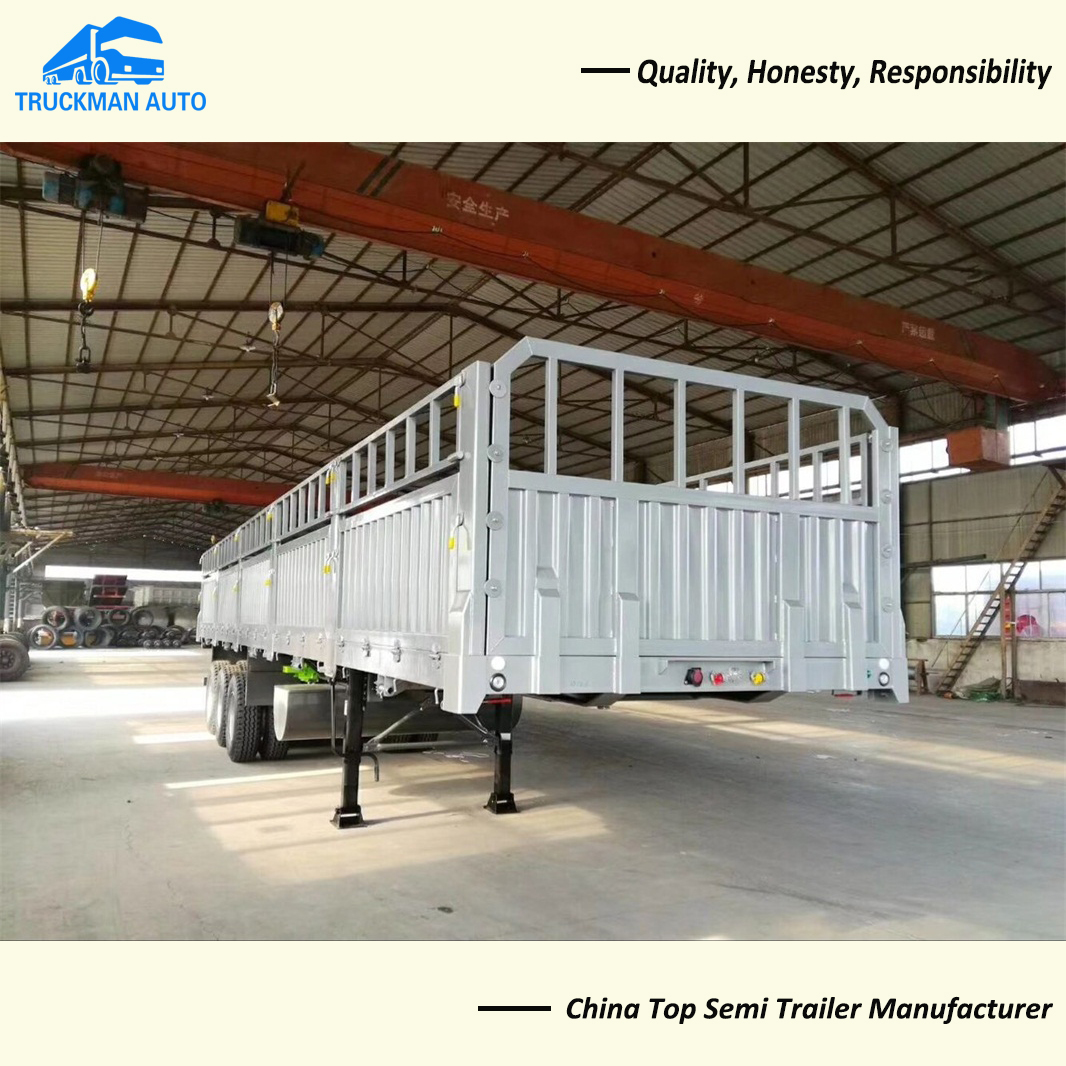

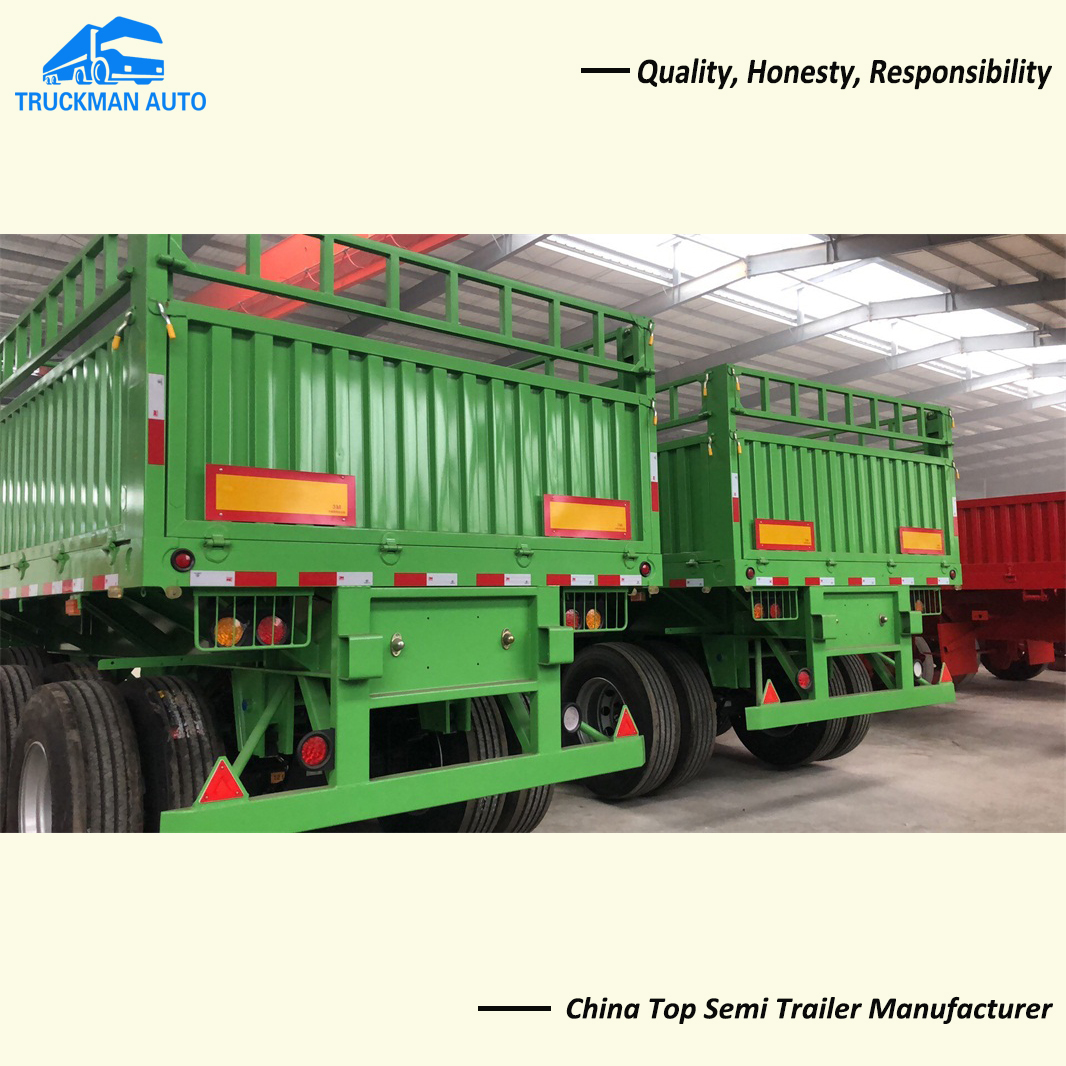

TRUCKMAN AUTO new design side wall trailer for the standard loading
TRUCKMAN AUTO new design side wall trailer adopt the famous brand spare parts, like FUWA axle, LINGLONG tire and JOST landing gear. The new side wall trailer height is 800+400mm, for standard loading transport. The trailer material adopt the T700 model steel, more light but strength improved.
TRUCKMAN AUTO Side Wall Trailer Main Specification.
Product Name: TRUCKMAN AUTO Side Wall Trailer
Loading Capacity: 60,000kg
Tare Weight: 10,000kg
Axle: 3 axle, 3x13000kg
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 16mm thickness
Landing Gear: JOST, 28 tons.
Tire: 315/80R22.5, 12 pcs, tubeless tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: middle 8mm, lower plate 16mm, “I” type main beam.
Cargo Box Size: 12300x2300x800+400mm, bottom 3mm, size wall 1.5mm
Dimension: 12500x2500x3100mm.
The TRUCKMAN AUTO side wall trailer could design according to your request.

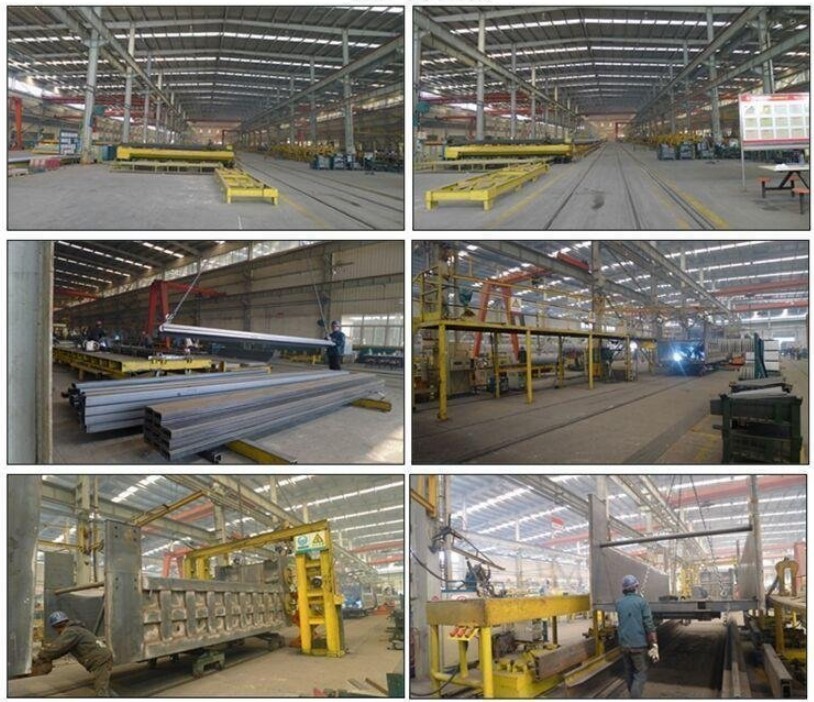

TRUCKMAN AUTO Side Wall Trailer Production Line.
TRUCKMAN AUTO semi trailer adopt the automatic welding tech, and paint use the electrophoresis advance tech. The main spare parts, like axle, suspension, tire have in stock, production time around 20 working days.
