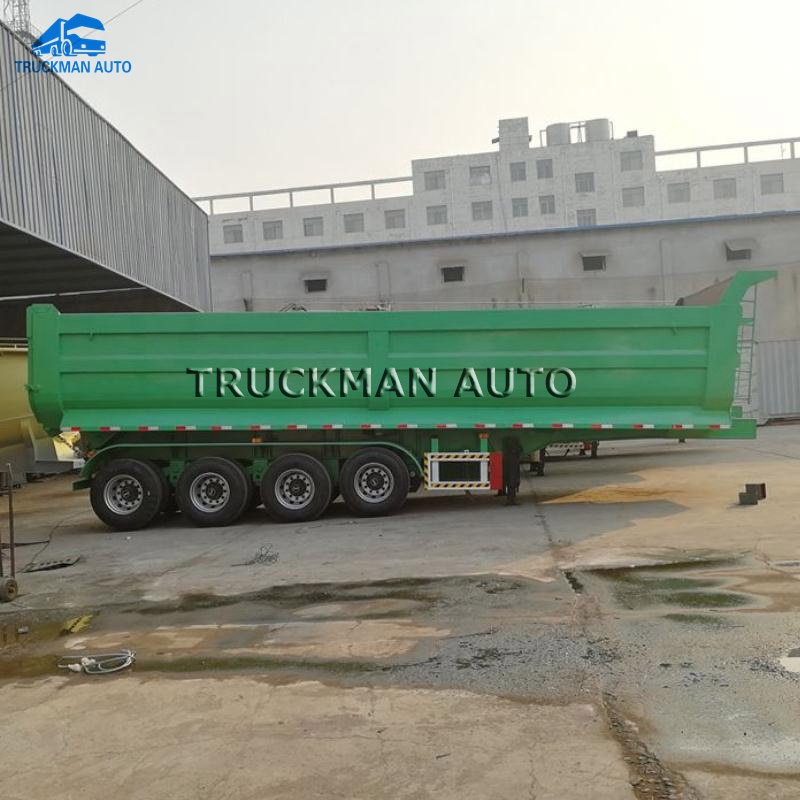

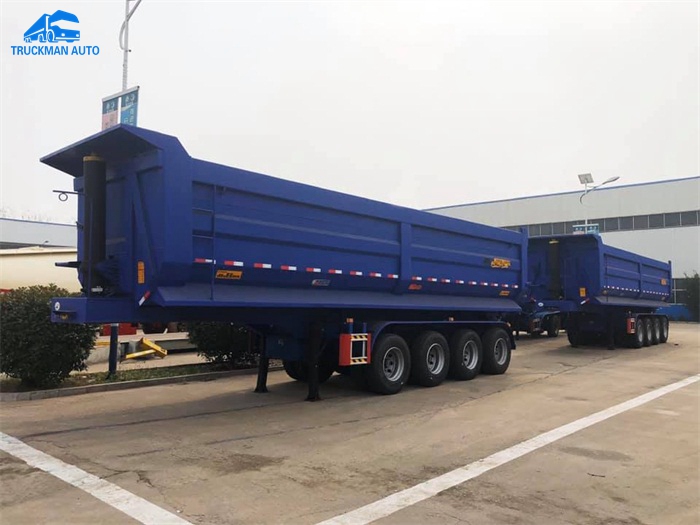

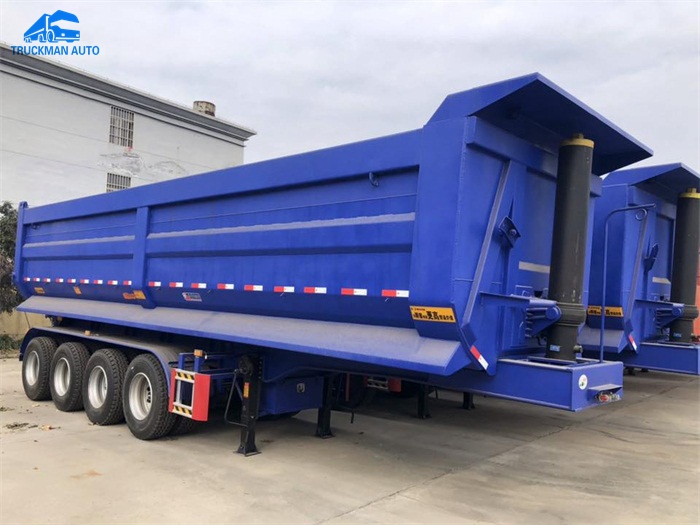

4 axles tipper semi trailer is used for haulage bauxite and manganese ore from mine to material factory. The first axle suspension is air lifting type.
-1. Tipper Semi Trailer Main Specification.
The axles could optional 3 axles, 4 axles, 5 axles, 6 axles.
Loading tons from 30 tons to 80 tons.

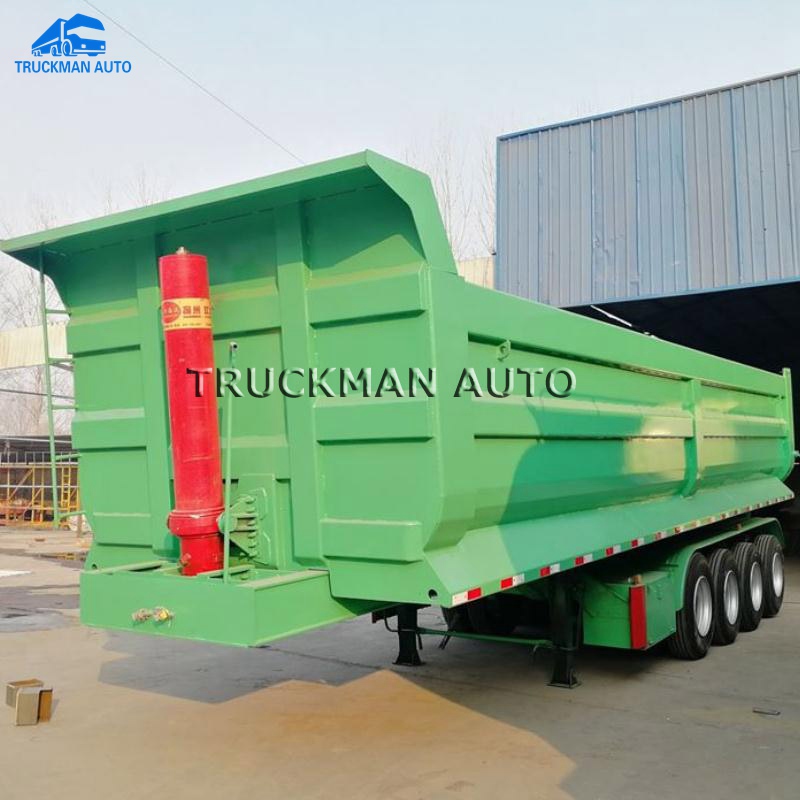

With HYVA brand hydraulic lifting system.
Tire use the radial model, such as 12.00R20 model.
Cargo box usually choose the U shape and normal shape.
-2. Main Specification For The Tipper Trailer.
Loading Capacity: 50 Tons
Main Beam Spec.: Q345 Steel, Height: 500mm, upper palte is 16mm, middle is 8mm, side is 18mm.
Bottom: 8mm, Side: 6mm
Suspension: Rear axles is mechanical suspension, frist axles is air suspension.
Leaf Spring: 120mmx16mmx10pcs
Axle Spec: 4x13 tons, FUWA
King Pin: 3.5"(90mm) JOST Brand
Tire: 315/80R22.5, 13R22.5, LINGLONG brand.
Brake Chamber: 6 sets
Landing Gear: JOST E100, 28 tons.
Electric System: 24V, One Set 6-core Standard Cable

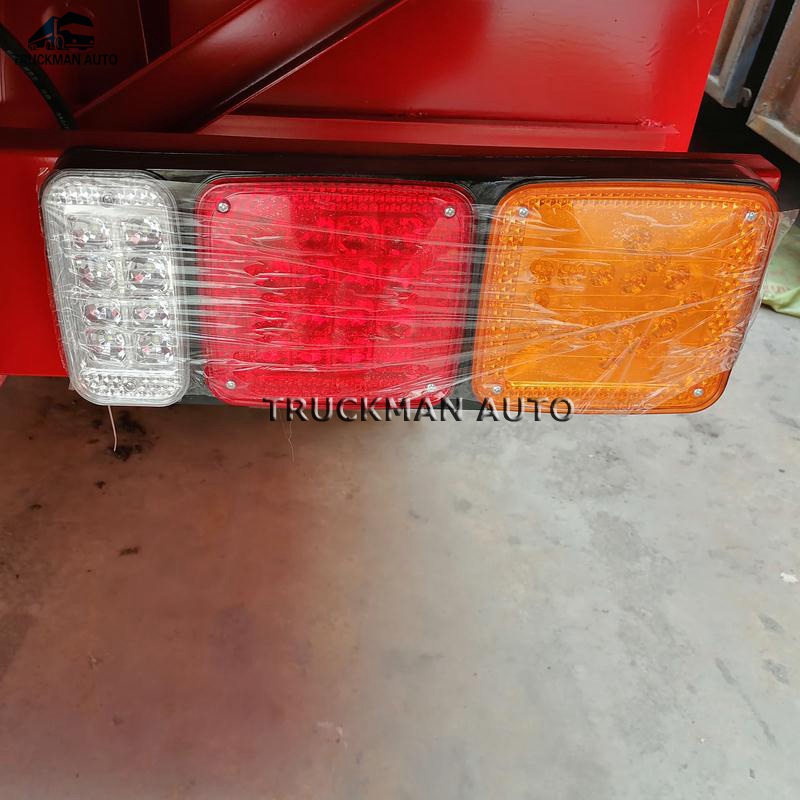

Light: Tail lamp with turn signal, brake light & reflector, side lamp etc
-3. Delivery Details.

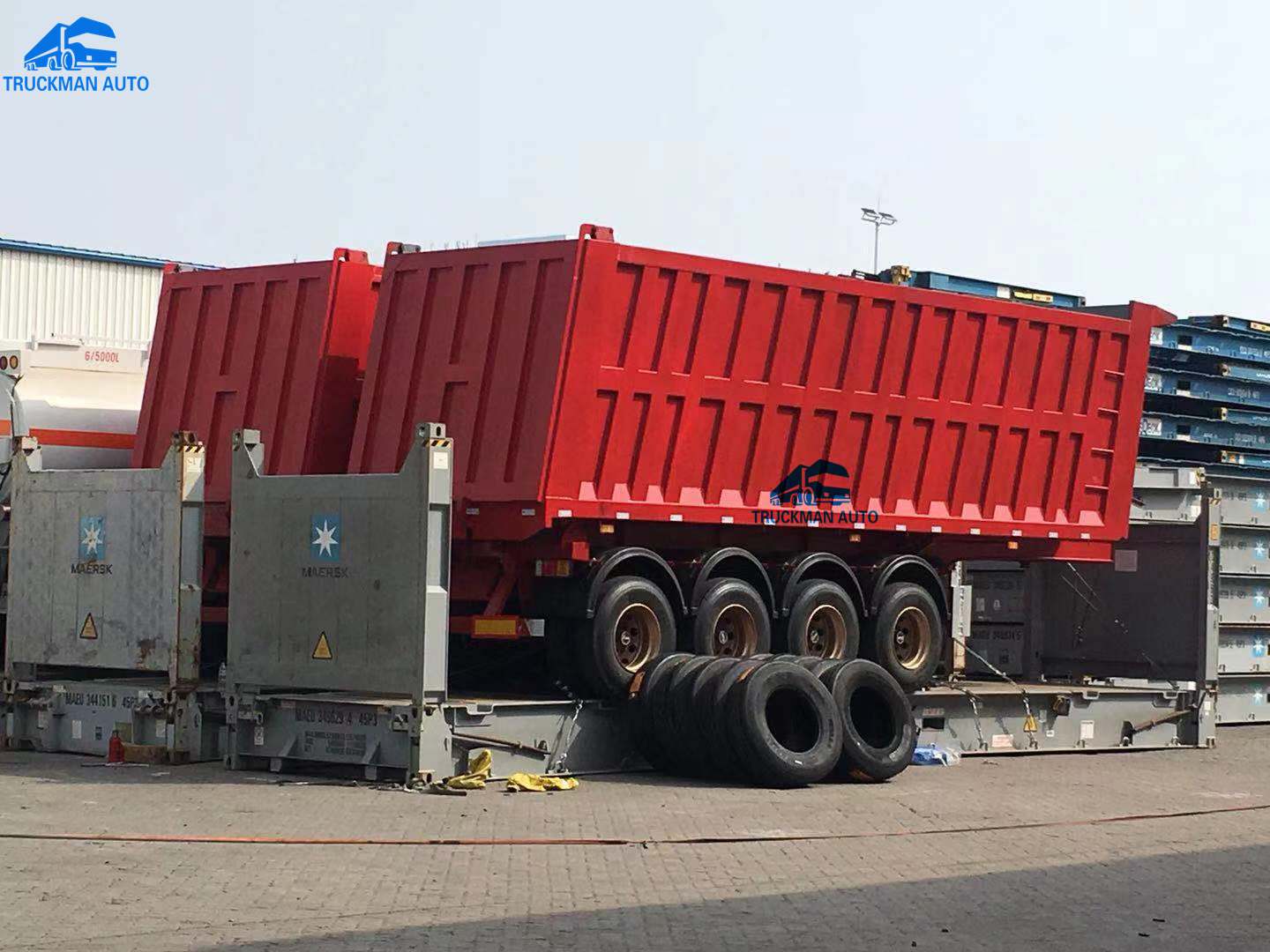

The dump semi trailer usually adopt the RO-RO vessel, BULK vessel, FRAME vessel etc.
We will according to your destination port recommend suitable shipment vessel.
